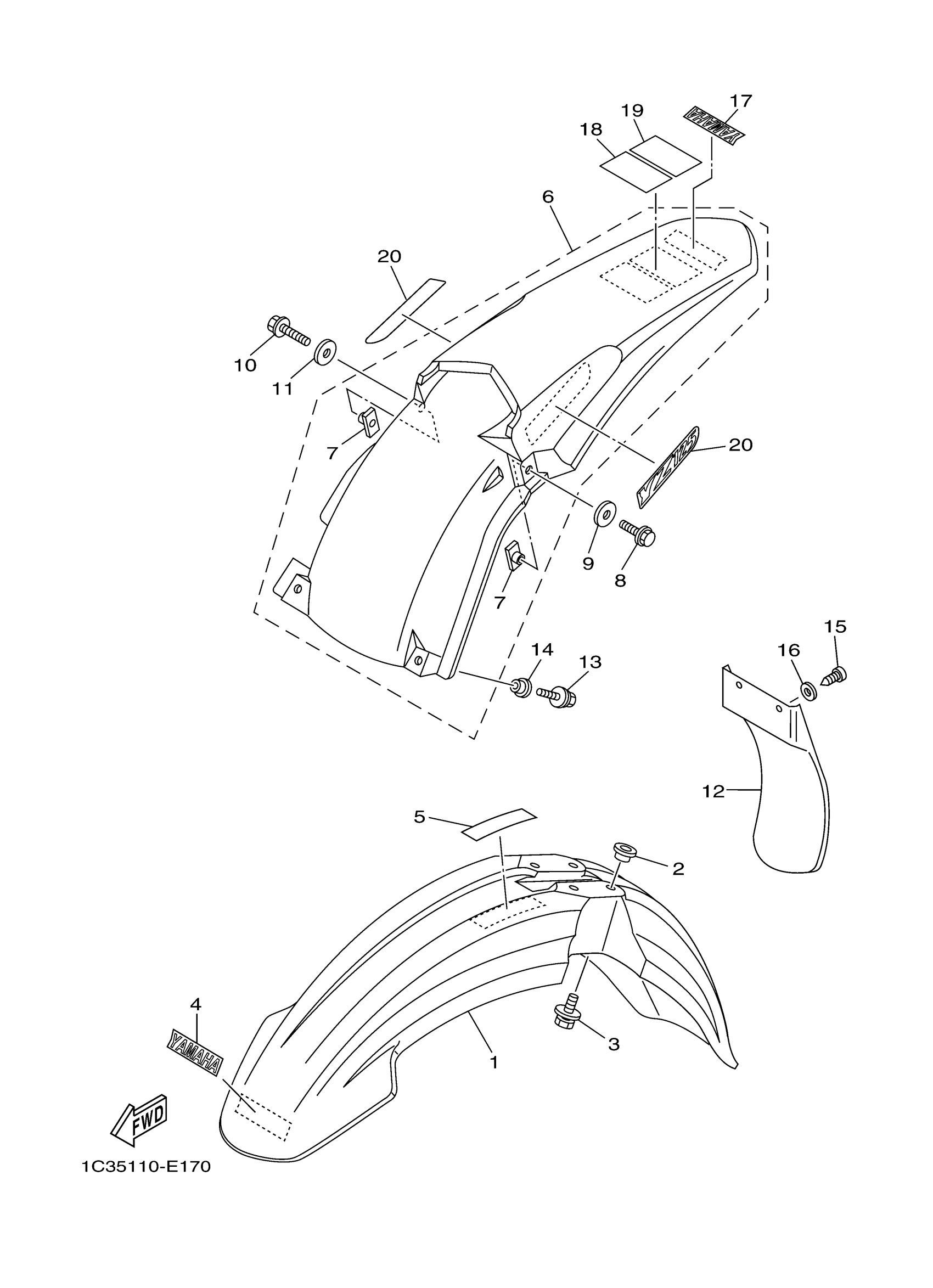

Yamaha YZ125V (YZ125) 1C35 2006 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

1C3-21511-51-00

$32.99

2

COLLAR

90387-06090-00

$8.49

3

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

4

EMBLEM YAMAHA

4ES-2153E-02-00

$14.49

5

LABEL, CAUTION

3XJ-2415E-A1-00

$4.84

6

REAR FENDER COMP.

5XE-21610-10-00

$59.99

7

NUT, REAR FENDER

5XE-21635-10-00

$13.49

8

BOLT, FLANGE

90105-06090-00

$8.49

9

WASHER, PLATE

90201-06032-00

$8.49

10

BOLT, FLANGE

90105-06091-00

$5.60

11

WASHER, PLATE

90201-06033-00

$2.97

12

GUARD, FLAP

5UN-21642-10-00

$16.49

13

BOLT, WITH WASHER(4JX)

90119-06225-00

$9.49

14

COLLAR

90387-06009-00

$10.49

15

SCREW, TRUSS TAP.

97707-60016-00

$1.70

16

WASHER, PLATE

90201-06557-00

Unavailable

17

EMBLEM YAMAHA

4ES-2153E-02-00

$14.49

18

LABEL, CAUTION

5PA-2118K-01-00

Unavailable

19

LABEL 5

3XJ-2151H-A1-00

Unavailable

20

EMBLEM 1

1C3-2163G-00-00

Unavailable
