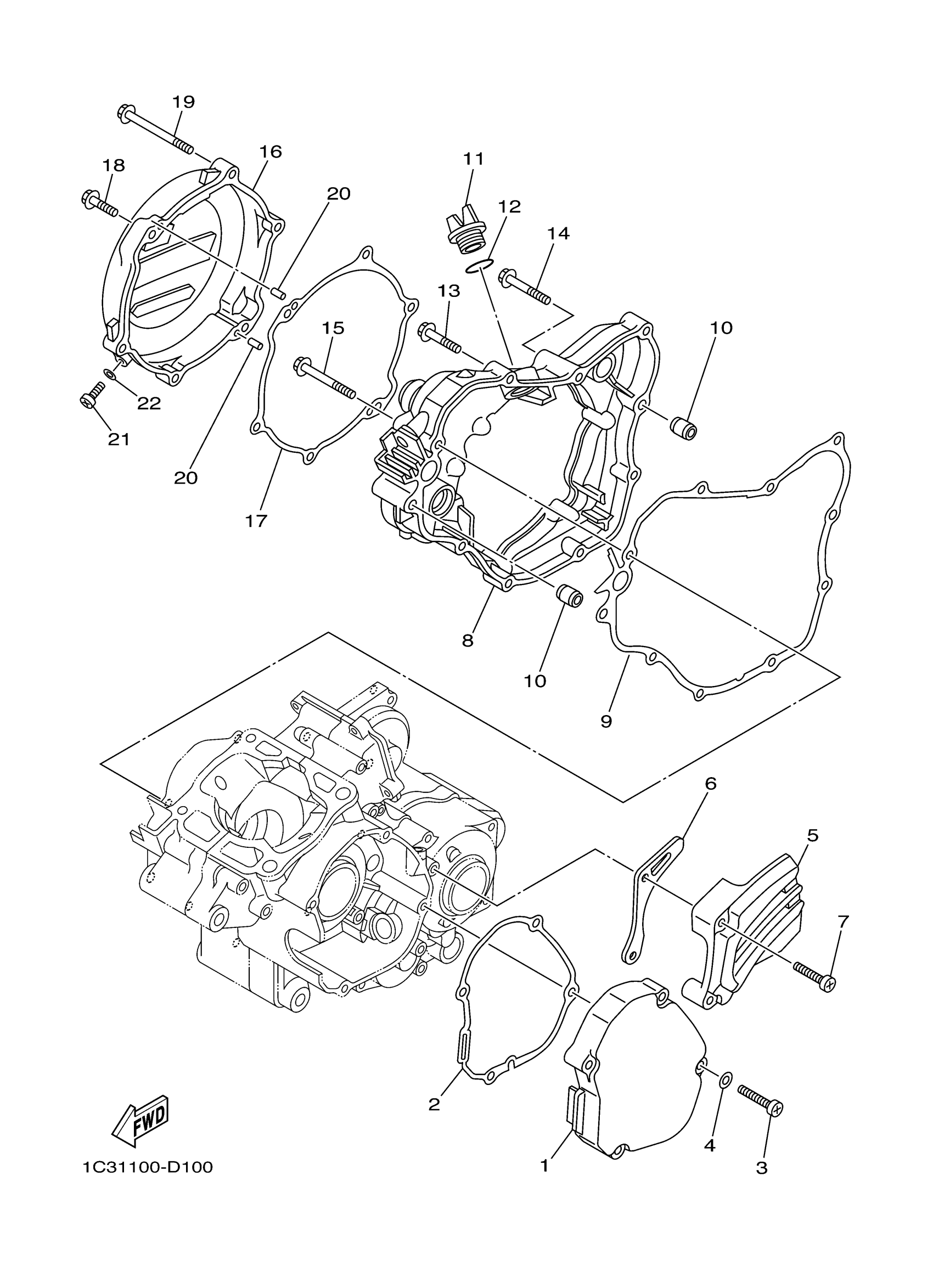

Yamaha YZ125V (YZ125) 1C35 2006 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

1C3-15411-10-00

$42.99

2

GASKET, CRANKCASE COVER 1

1C3-15451-00-00

$16.49

3

SCREW, PAN

98517-06030-00

Unavailable

4

WASHER(6TA)

92907-06600-00

$2.72

5

COVER, CRANKCASE 2

1C3-15421-10-00

Unavailable

6

GUIDE, CHAIN

1C3-17466-00-00

$14.49

7

SCREW, PAN

98517-06030-00

Unavailable

8

COVER, CRANKCASE 3

1C3-15431-03-00

$135.99

9

GASKET, CRANKCASE COVER 3

1C3-15462-00-00

$17.49

10

PIN, DOWEL(3XW)

91808-16023-00

$8.49

11

PLUG, OIL

3Y1-15363-10-00

$18.49

12

O-RING (646)

93210-19123-00

Unavailable

13

BOLT, SMALL FLANGE

95027-06030-00

$3.98

14

BOLT, SMALL FLANGE

95027-06040-00

$3.28

15

BOLT, SMALL FLANGE

95027-06050-00

$2.55

16

COVER, GENERATOR

1C3-15415-00-00

Unavailable

17

GASKET, 2

1C3-15463-00-00

Unavailable

18

BOLT, SMALL FLANGE

95027-06065-00

Unavailable

19

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

20

PIN,DOWEL (603)

93604-10011-00

Unavailable

21

BOLT, BUTTON HEAD

92017-06012-00

Unavailable

22

GASKET 256113960000

90430-06014-00

Unavailable
