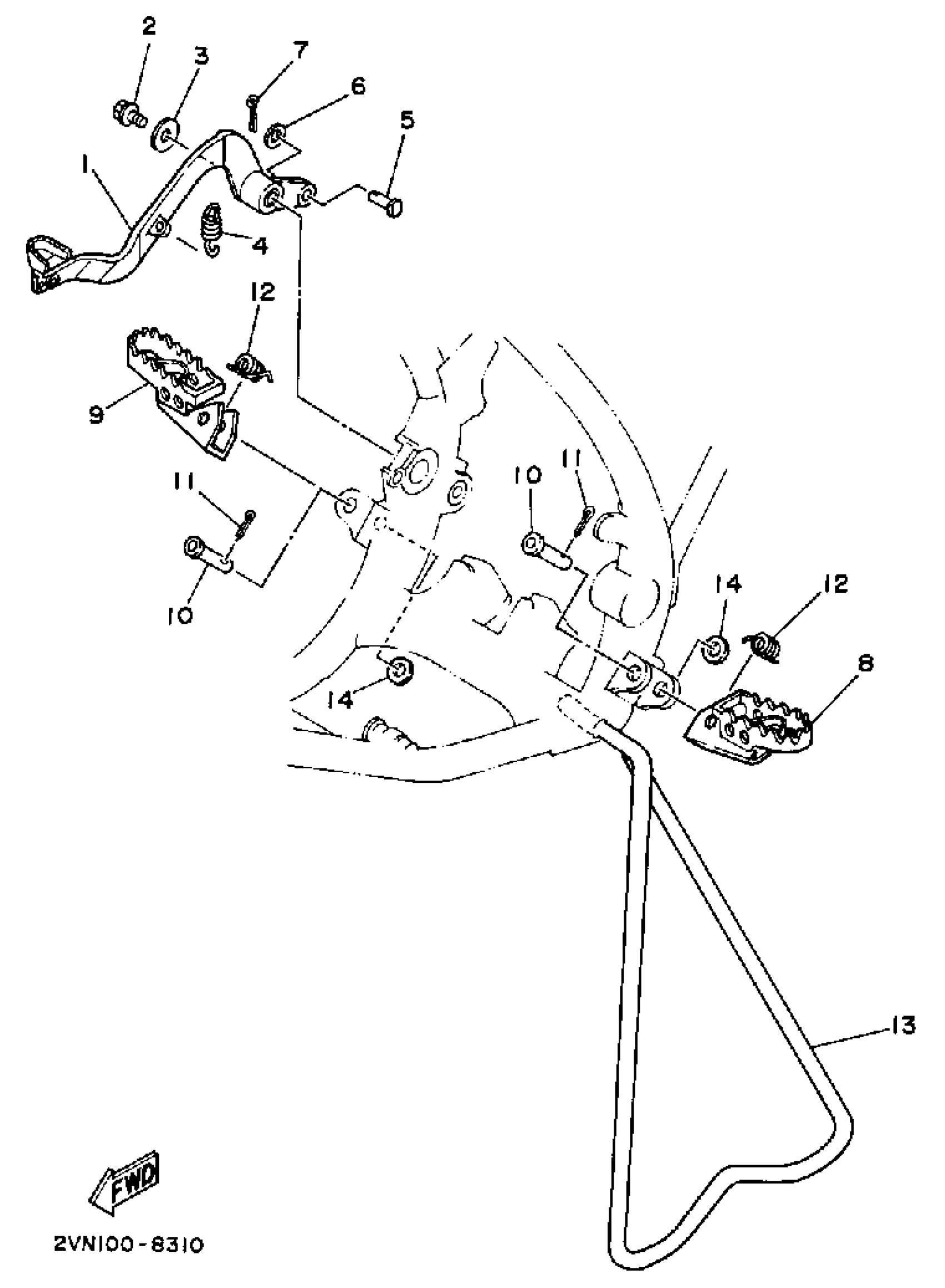

Yamaha YZ125U (YZ125U) 1988 STAND-FOOTREST Diagram

#

Description
Price

1

BRAKE PEDAL ASSEMBLY.

2VN-27200-01-00

Unavailable

2

BOLT, BUTTON HEAD

92017-08012-00

$8.49

3

WASHER, PLATE (12X)

90201-087F0-00

$5.60

4

SPRING, TENSION

90506-14410-00

Unavailable

5

PIN, CLEVIS(2VM)

90240-08120-00

$13.49

6

.. WASHER, PLATE

92990-08600-00

Unavailable

7

PIN, COTTER

91490-25020-00

$3.19

8

FOOTREST 1

3LD-27411-10-00

Unavailable

9

FOOTREST 2

3LD-27421-10-00

$48.99

10

PIN, CLEVIS(2HJ)

90240-10117-00

$14.99

11

PIN, COTTER

91490-25020-00

$3.19

12

SPRING, TORSION (23X)

90508-20583-00

$8.49

13

STAND,SIDE

4LB-27311-00-00

Unavailable

14

WASHER, PLAIN(735)

90201-10119-00

Unavailable
