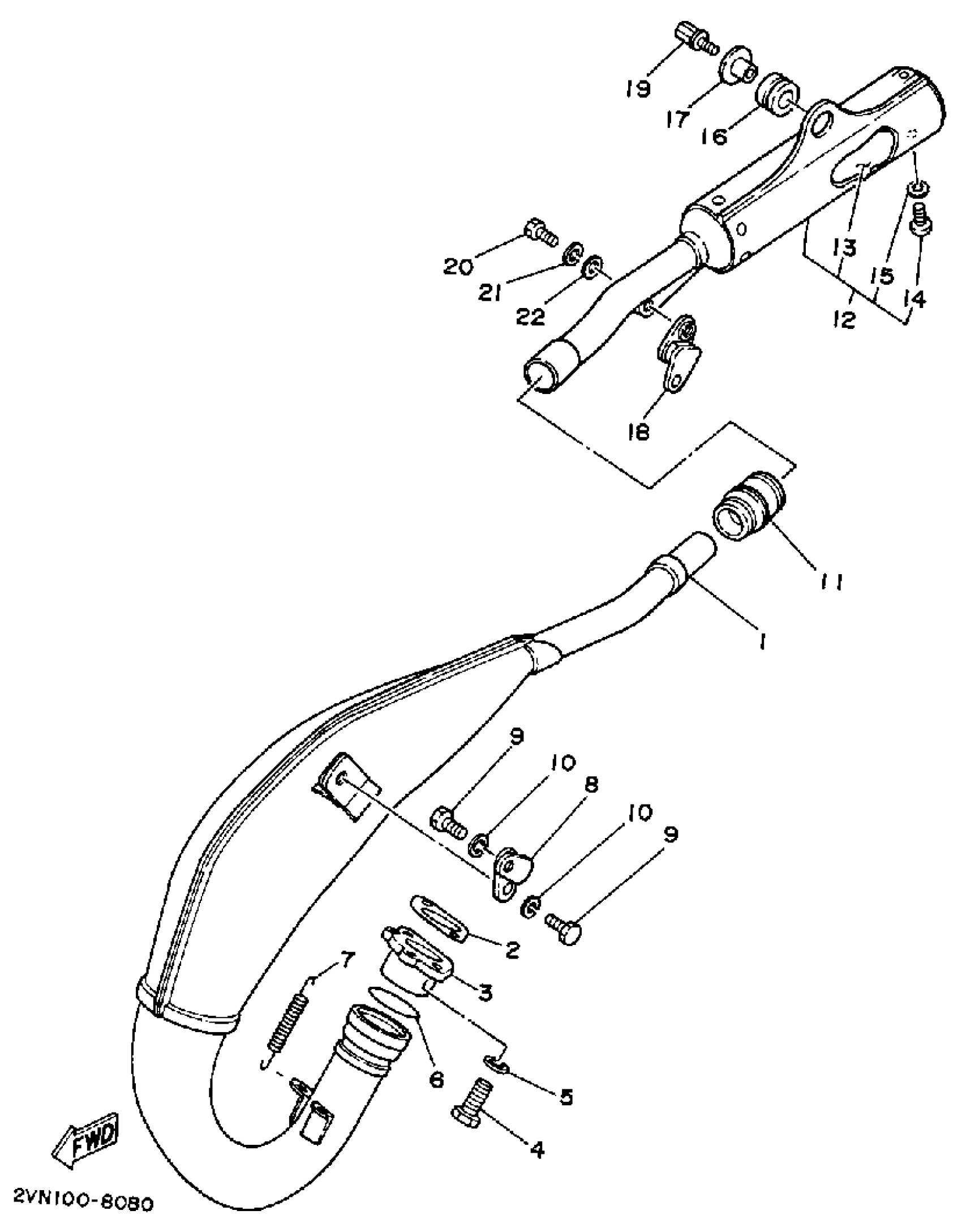

Yamaha YZ125U (YZ125U) 1988 EXHAUST Diagram
#
Description
Price
1
EXHAUST PIPE ASSEMBLY L
2HG-14610-01-00
Unavailable
2
GASKET,EXST PIPE
1LX-14613-01-00
Unavailable
3
FLANGE, EXST PIPE
2HG-14614-00-00
Unavailable
8
STAY, MUFFLER 1
24X-14771-00-00
Unavailable
10
WASHER, SPRING
92995-06100-00
Unavailable
11
JOINT, EXHAUST
3M7-14615-00-00
Unavailable
12
SILENCER, EXHAUST
2VN-14753-00-00
Unavailable
13
. FIBER
2HG-1469A-00-00
Unavailable
15
WASHER, SPRING
92995-06100-00
Unavailable
16
DAMPER, MUFFLER
39X-14747-00-00
Unavailable
17
COLLAR
90387-101U3-00
Unavailable
18
STAY, MUFFLER 1
565-14771-01-00
Unavailable
19
BOLT (3R4)
90109-06551-00
Unavailable
21
WASHER, SPRING
92995-06100-00
Unavailable
22
WASHER, PLAIN (646)
92990-06600-00
Unavailable
