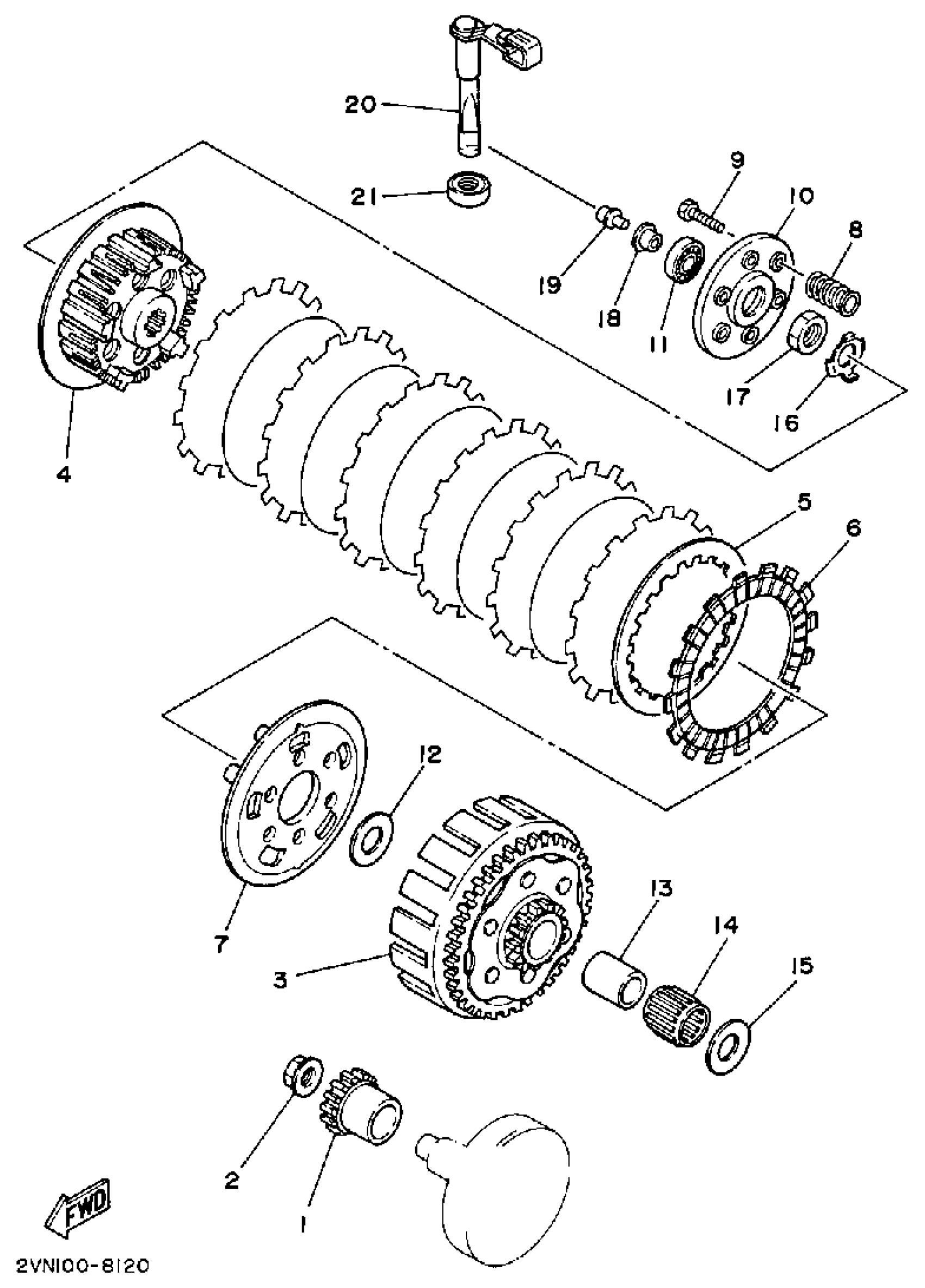

Yamaha YZ125U (YZ125U) 1988 CLUTCH Diagram
#
Description
Price
1
GEAR, PRI DRIVE
1LX-16111-00-00
Unavailable
2
NUT, SPECIAL SHAPE
90179-12373-00
Unavailable
3
PRI.DRIVEN GEAR
2VN-16150-01-00
Unavailable
4
BOSS, CLUTCH
2VN-16371-00-00
Unavailable
5
PLATE, CLUTCH 1
24X-16324-00-00
Unavailable
6
PLATE, FRICTION
3JD-16321-00-00
Unavailable
7
PLATE, PRESSURE 1
2VN-16351-00-00
Unavailable
9
SCREW W/WASHER
90159-05159-00
Unavailable
10
PLATE, PRESSURE 2
2VN-16352-00-00
Unavailable
12
WASHER, PLATE
90201-174F7-00
Unavailable
13
SPACER
90560-17335-00
Unavailable
14
BEARING, CYLINDER.#10
93310-323T6-00
Unavailable
15
WASHER, PLATE
90201-174F7-00
Unavailable
16
WASHER, LOCK (25G)
90215-14186-00
Unavailable
17
NUT, HEXAGON
90170-14171-00
Unavailable
18
ROD, PUSH 2
2VN-16357-00-00
Unavailable
19
PLATE, PUSH
2VN-16358-00-00
Unavailable
20
PUSH LEVER ASSY
1LX-16380-01-00
Unavailable
21
OIL SEAL (12X19X5-401)
93109-12012-00
Unavailable
