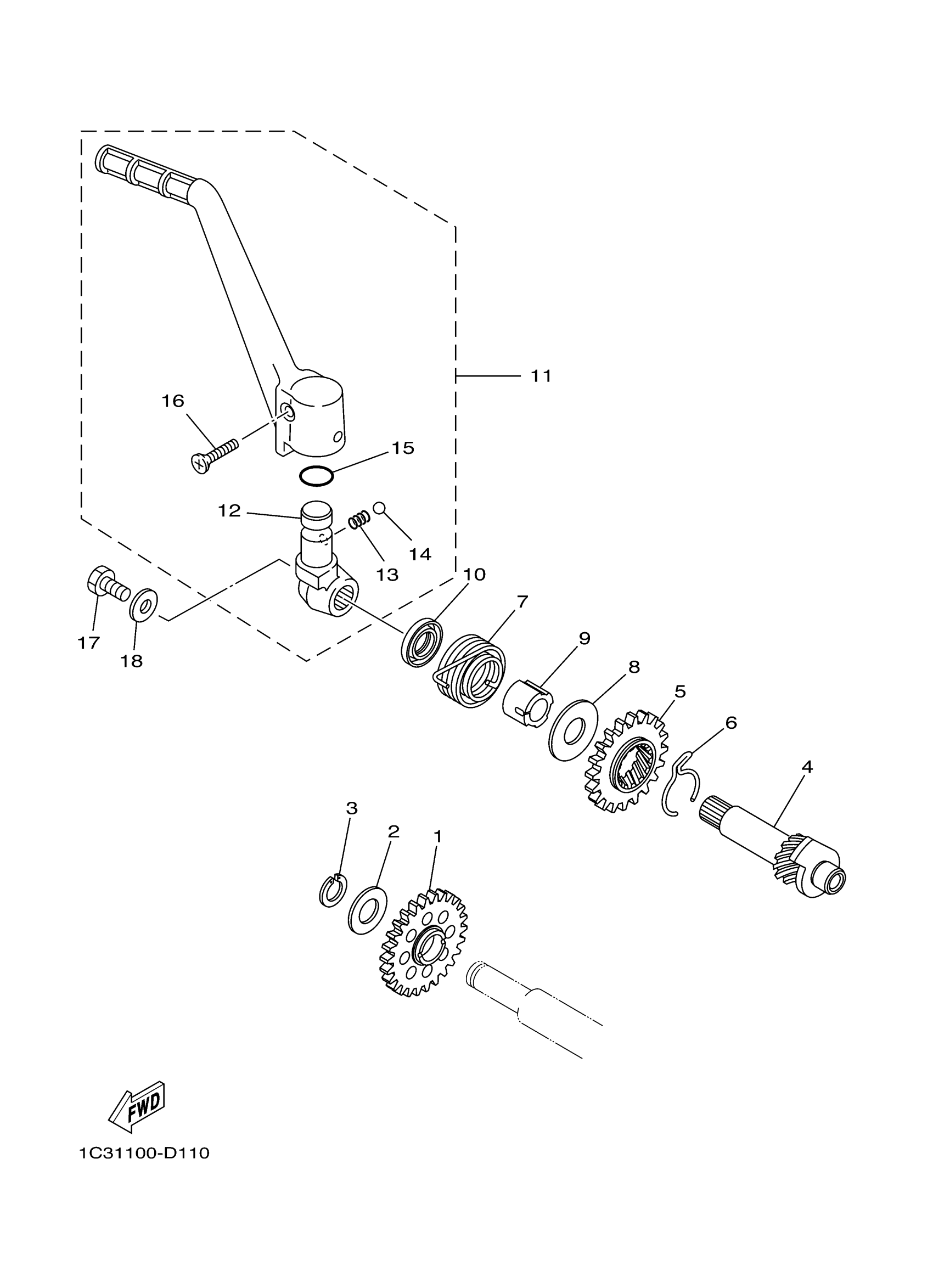

Yamaha YZ125TSE (YZ125 70TH ANNIVERSARY) D68D 2026 STARTER Diagram

GEAR, KICK IDLE

1C3-15651-00-00

$92.99

WASHER, PLATE (15A)

90201-175F6-00

$10.49

CIRCLIP(1EY)

99009-17400-00

$4.73

KICK AXLE ASSY

B4X-15660-00-00

Unavailable

GEAR, KICK

1C3-15641-00-00

$60.99

CLIP 315156870000

90468-26048-00

$8.49

SPRING, TORSION (4F2)

90508-26450-00

$11.49

WASHER, PLATE (25G)

90201-171G4-00

$9.49

SPACER

1C3-15666-00-00

$7.99

OIL SEAL (15A)

93102-17263-00

$10.49

KICK CRANK ASSY

4DB-15620-10-00

$217.99

BOSS, KICK CRANK

4DB-15621-03-00

Unavailable

SPRING COMPRESSION278156220000

90501-12081-00

$8.49

BALL (12R)

93507-32031-00

$4.73

O-RING (341)

93210-15171-00

$7.49

SCREW, COUNTERSUNK

90151-06045-00

Unavailable

BOLT, FLANGE DEEP RECESS

95D32-06014-00

Unavailable

WASHER, PLATE

90201-06099-00

Unavailable
