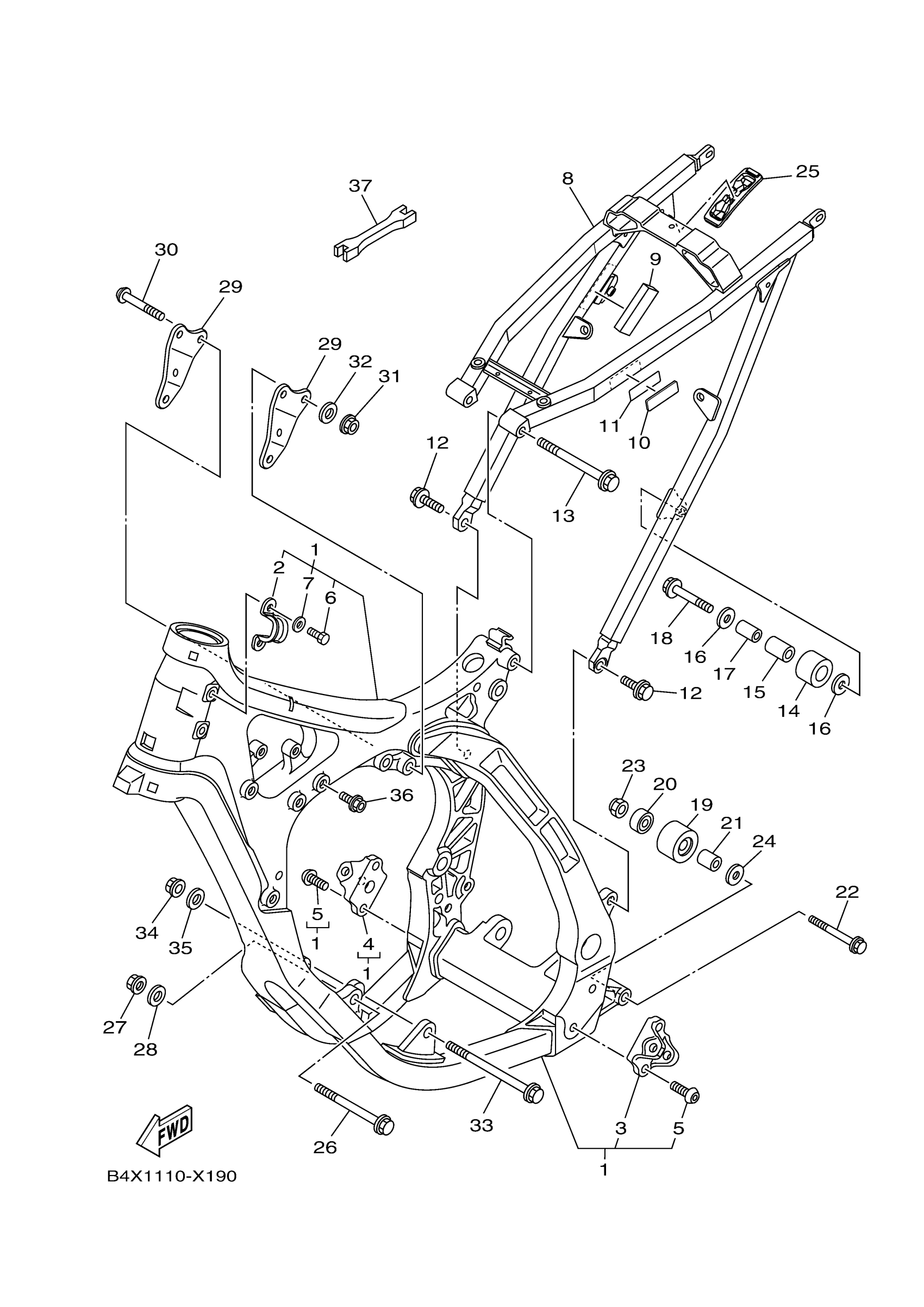

Yamaha YZ125TSE (YZ125 70TH ANNIVERSARY) D68D 2026 FRAME Diagram

#

Description
Price

1

FRONT FRAME COMP.

1SR-21101-00-00

Unavailable

2

CLAMP, WIRE HARNESS 2

1C3-21336-00-00

$10.99

3

BRACKET, FOOTREST

1C3-21447-10-00

$37.99

4

BRACKET, FOOTREST

1C3-21448-10-00

$37.99

5

SCREW

90149-10033-00

$5.60

6

BOLT(4GV)

97017-05012-00

$8.49

7

WASHER, PLAIN (646)

92990-05600-00

$0.80

8

REAR FRAME COMP.

B4X-21190-00-00

$512.99

9

SEAL

1KT-21268-00-00

$2.13

10

PROTECTOR

BCR-23472-00-00

$2.17

11

TAPE, 1

BCR-21566-00-00

$7.49

12

BOLT, FLANGE

90105-08085-00

$7.49

13

BOLT, FLANGE

90105-08132-00

$5.60

14

TENSIONER

30X-22178-00-00

$35.99

15

BUSH

4V4-22184-00-00

$4.47

16

WASHER, PLATE

90201-08045-00

Unavailable

17

COLLAR

90387-08041-00

Unavailable

18

BOLT, FLANGE DEEP RECESS

95E32-08040-00

Unavailable

19

TENSIONER

3JD-22178-20-00

Unavailable

20

BEARING (3X3)

93300-60804-00

Unavailable

21

COLLAR(1NL)

90387-086N4-00

Unavailable

22

BOLT, FLANGE DEEP

95E32-08060-00

Unavailable

23

NUT, U

95617-08100-00

Unavailable

24

WASHER, PLATE

90201-08043-00

Unavailable

25

COVER

B4X-2117F-00-00

Unavailable

26

BOLT, FLANGE

90105-10175-00

Unavailable

27

NUT(4KG)

90179-10658-00

Unavailable

28

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

29

BRACKET, REAR UPPE

B4X-21425-00-00

Unavailable

30

BOLT

90111-08028-00

Unavailable

31

NUT(4KM)

90179-08674-00

Unavailable

32

WASHER, PLATE

90201-08055-00

Unavailable

33

BOLT, FLANGE

90105-10176-00

Unavailable

34

NUT(4KG)

90179-10658-00

Unavailable

35

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

36

NUT

1C3-21244-20-00

Unavailable

37

WRENCH, HEXAGON

5ET-28166-10-00

Unavailable
