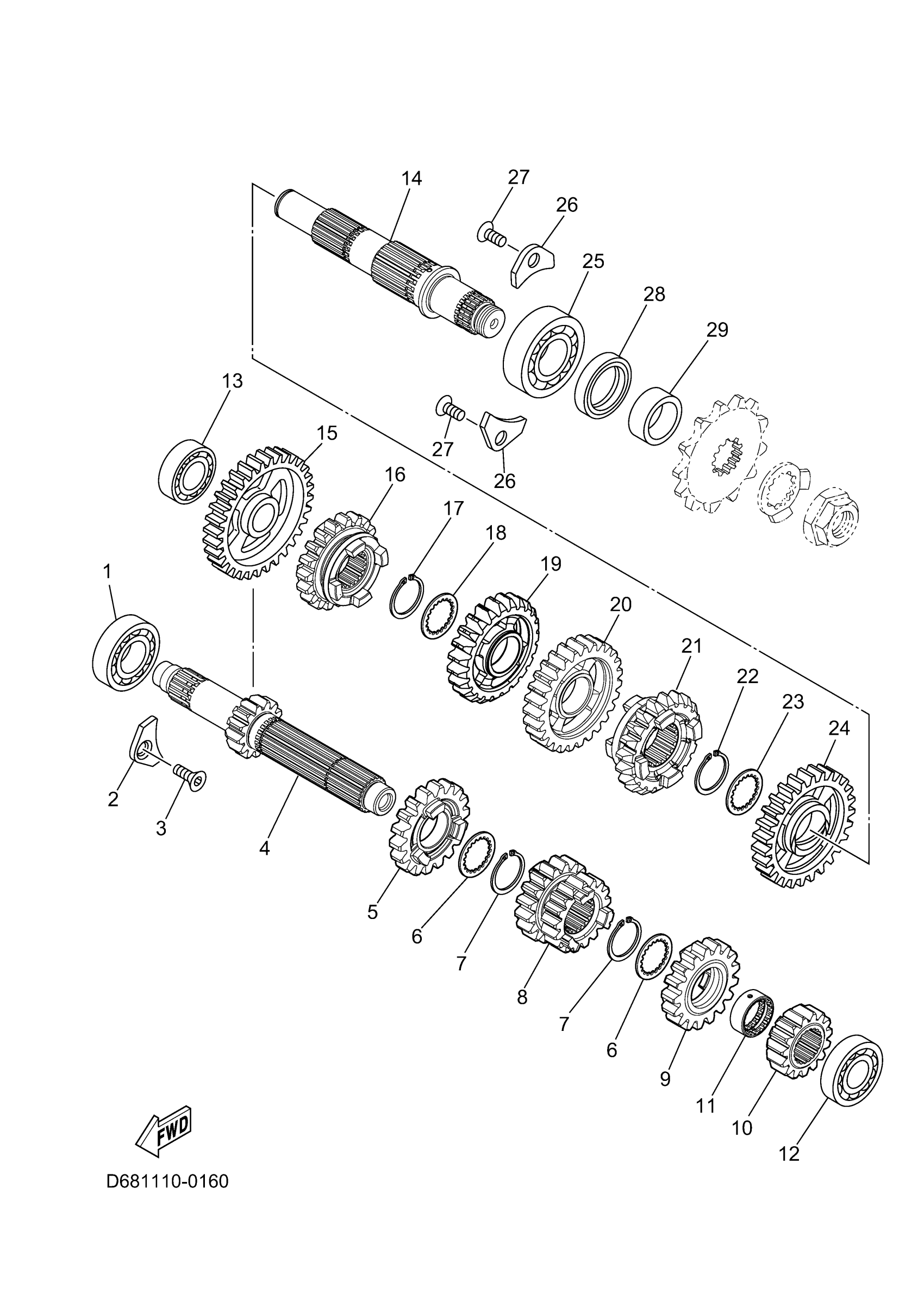

Yamaha YZ125TL (YZ125) D689 2026 TRANSMISSION Diagram

#

Description
Price

1

BEARING(3XV)

93306-00442-00

$41.99

2

PLATE, BEARING COVER

4JT-15381-01-00

$13.49

3

SCREW, COUNTERSUNK

90151-06052-00

$8.49

4

AXLE, MAIN

B4X-17411-00-00

Unavailable

5

GEAR, 6TH PINION

B4X-17161-00-00

$88.99

6

WASHER

90209-20008-00

$11.49

7

CIRCLIP (537)

93410-22039-00

$8.49

8

GEAR, 3RD PINION

B4X-17131-00-00

$253.99

9

GEAR, 5TH PINION

B4X-17151-00-00

$86.99

10

GEAR, 2ND PINION

B4X-17121-00-00

$86.99

11

COLLAR

90387-20006-00

$31.99

12

BEARING

93306-20351-00

$38.99

13

BEARING

93306-00326-00

$39.99

14

AXLE, DRIVE

B4X-17421-00-00

$187.99

15

GEAR, 1ST WHEEL

1C3-17211-10-00

$111.99

16

GEAR, 6TH WHEEL

B4X-17261-00-00

Unavailable

17

CIRCLIP (537)

93410-22039-00

$8.49

18

WASHER

90209-20008-00

$11.49

19

GEAR, 4TH WHEEL

B4X-17241-00-00

Unavailable

20

GEAR, 3RD WHEEL

B4X-17231-00-00

Unavailable

21

GEAR, 5TH WHEEL

B4X-17251-00-00

Unavailable

22

CIRCLIP (30X)

93410-26067-00

Unavailable

23

WASHER

90209-23012-00

Unavailable

24

GEAR, 2ND WHEEL

B4X-17221-00-00

Unavailable

25

BEARING (30X)

93306-20447-00

Unavailable

26

PLATE, BEARING COVER

4JT-15381-01-00

$13.49

27

SCREW, COUNTERSUNK

90151-06052-00

$8.49

28

OIL SEAL

93102-28012-00

Unavailable

29

COLLAR

90387-22004-00

Unavailable
