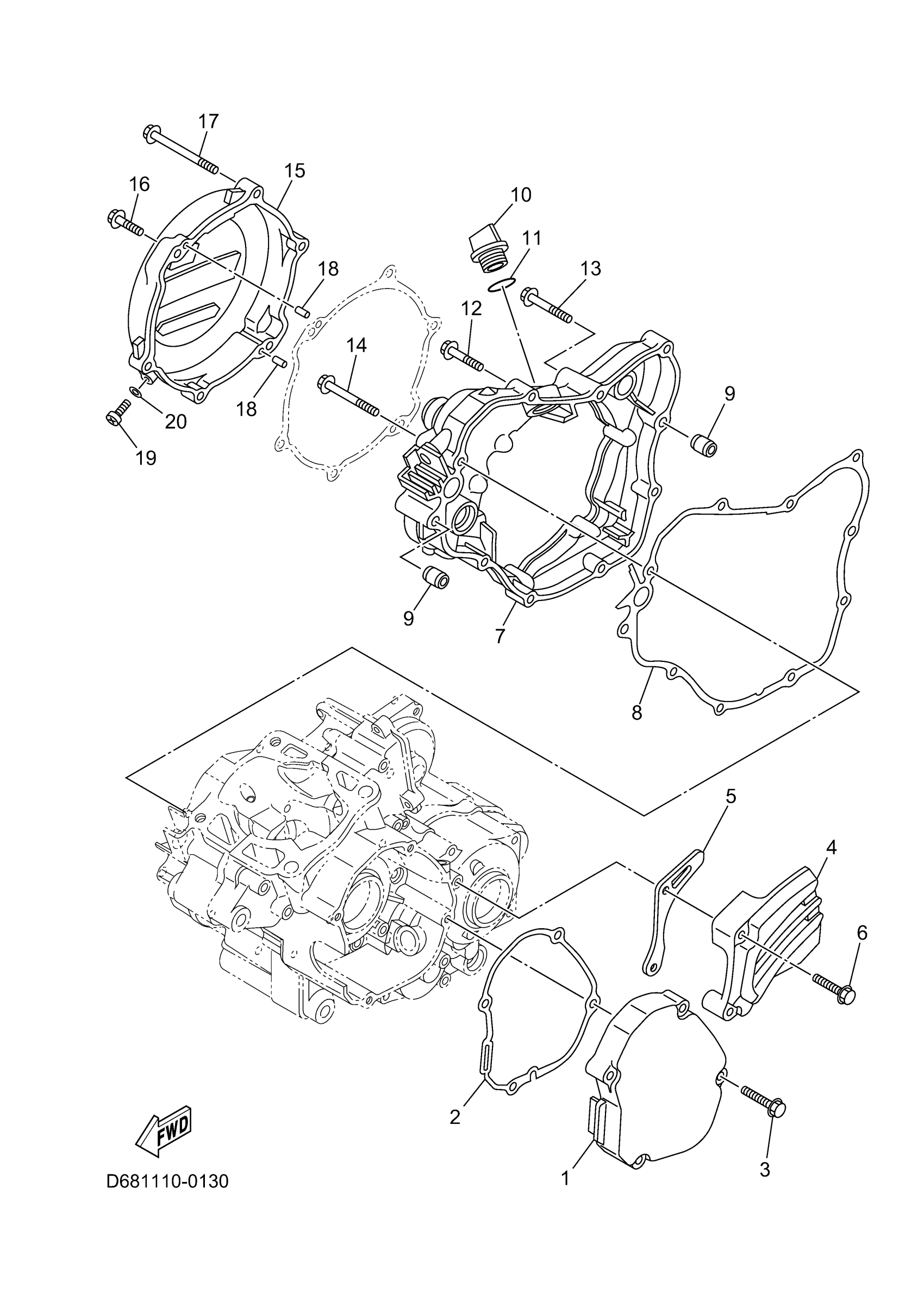

Yamaha YZ125TL (YZ125) D689 2026 CRANKCASE COVER 1 Diagram

COVER, CRANKCASE 1

1C3-15411-10-00

$42.99

GASKET, CRANKCASE COVER 1

1C3-15451-00-00

$16.49

BOLT, FLANGE DEEP RECESS

95E32-06030-00

$0.75

COVER, CRANKCASE 2

1C3-15421-10-00

Unavailable

GUIDE, CHAIN

1C3-17466-00-00

$14.49

BOLT, FLANGE

90105-06233-00

Unavailable

COVER, CRANKCASE 3

B4X-15431-00-00

Unavailable

GASKET, CRANKCASE COVER 3

1C3-15462-00-00

$17.49

PIN, DOWEL(3XW)

91808-16023-00

$8.49

PLUG, OIL

3Y1-15363-10-00

$18.49

O-RING (646)

93210-19123-00

Unavailable

BOLT, FLANGE DEEP RECESS

95E32-06030-00

$0.75

BOLT, FLANGE DEEP

95E32-06040-00

$0.86

BOLT, FLANGE DEEPRECESS

95E32-06050-00

$0.43

COVER, 1

B4X-15415-00-00

Unavailable

BOLT, FLANGE DEEP

95E32-06065-00

Unavailable

BOLT, FLANGE DEEP RECESS

95E32-06025-00

Unavailable

PIN,DOWEL (603)

93604-10011-00

Unavailable

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

GASKET 256113960000

90430-06014-00

Unavailable
