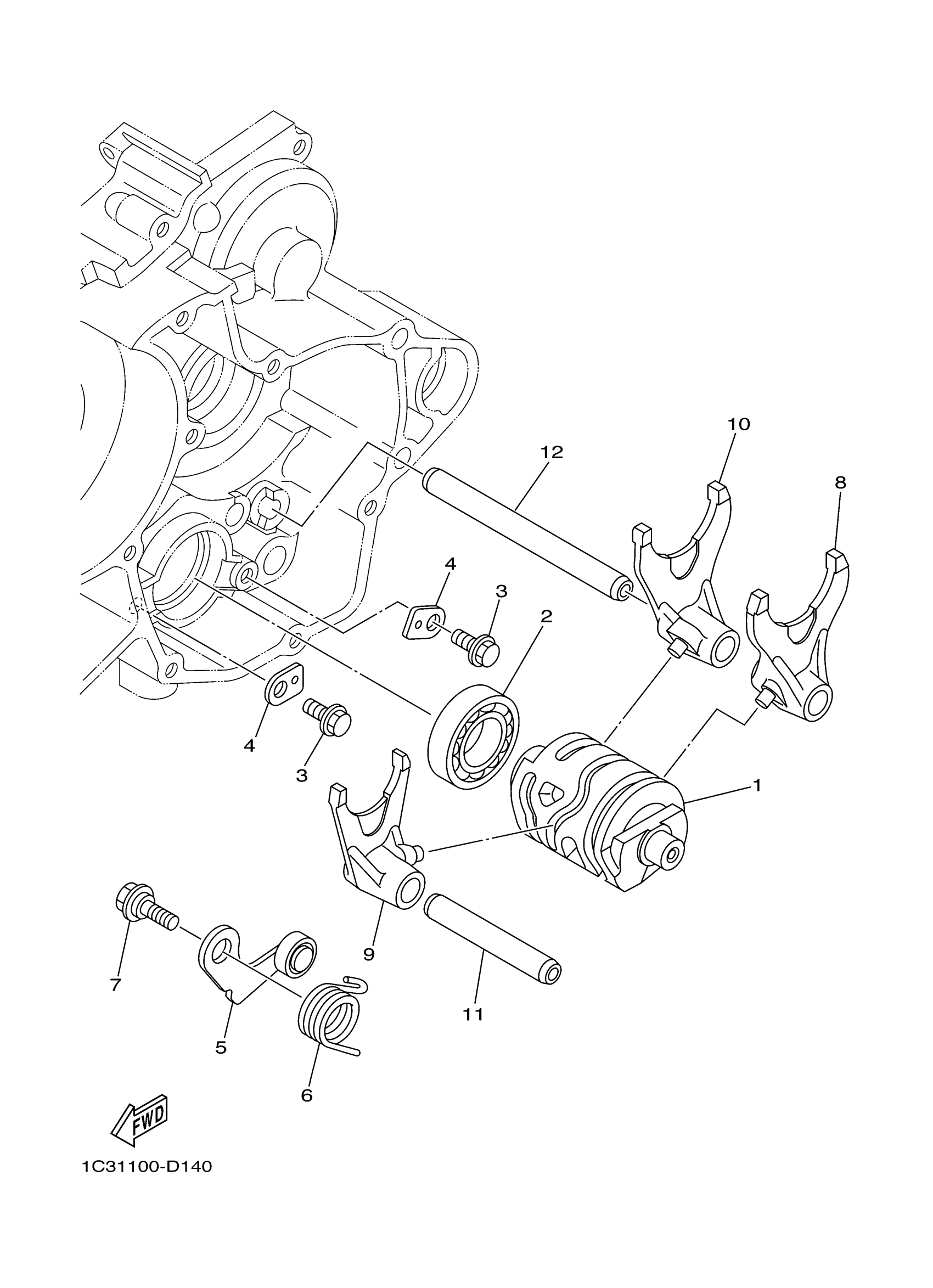

Yamaha YZ125T1 (YZ125) 1C31 2005 SHIFT CAM FORK Diagram

#

Description
Price

1

CAM, SHIFT

1C3-18541-00-00

$113.39

2

BEARING

93306-90408-00

$34.82

3

BOLT, FLANGE(4MY)

95027-06012-00

$3.05

4

PLATE, STOPPER 2

1C3-18562-00-00

$6.33

5

STOPPER LEVER ASSY

1C3-18140-10-00

$25.34

6

SPRING, TORSION(4XM)

90508-261B7-00

$5.73

7

BOLT

90109-06036-00

$7.46

8

FORK, SHIFT 1

1C3-18511-00-00

$59.20

9

FORK, SHIFT 2

1C3-18512-00-00

$59.26

10

FORK, SHIFT 3

1C3-18513-00-00

$59.20

11

BAR, SHIFT FORK GUIDE 1

3XV-18531-00-00

$15.09

12

BAR, SHIFT FORK GUIDE 1

4JG-18531-00-00

$29.36
