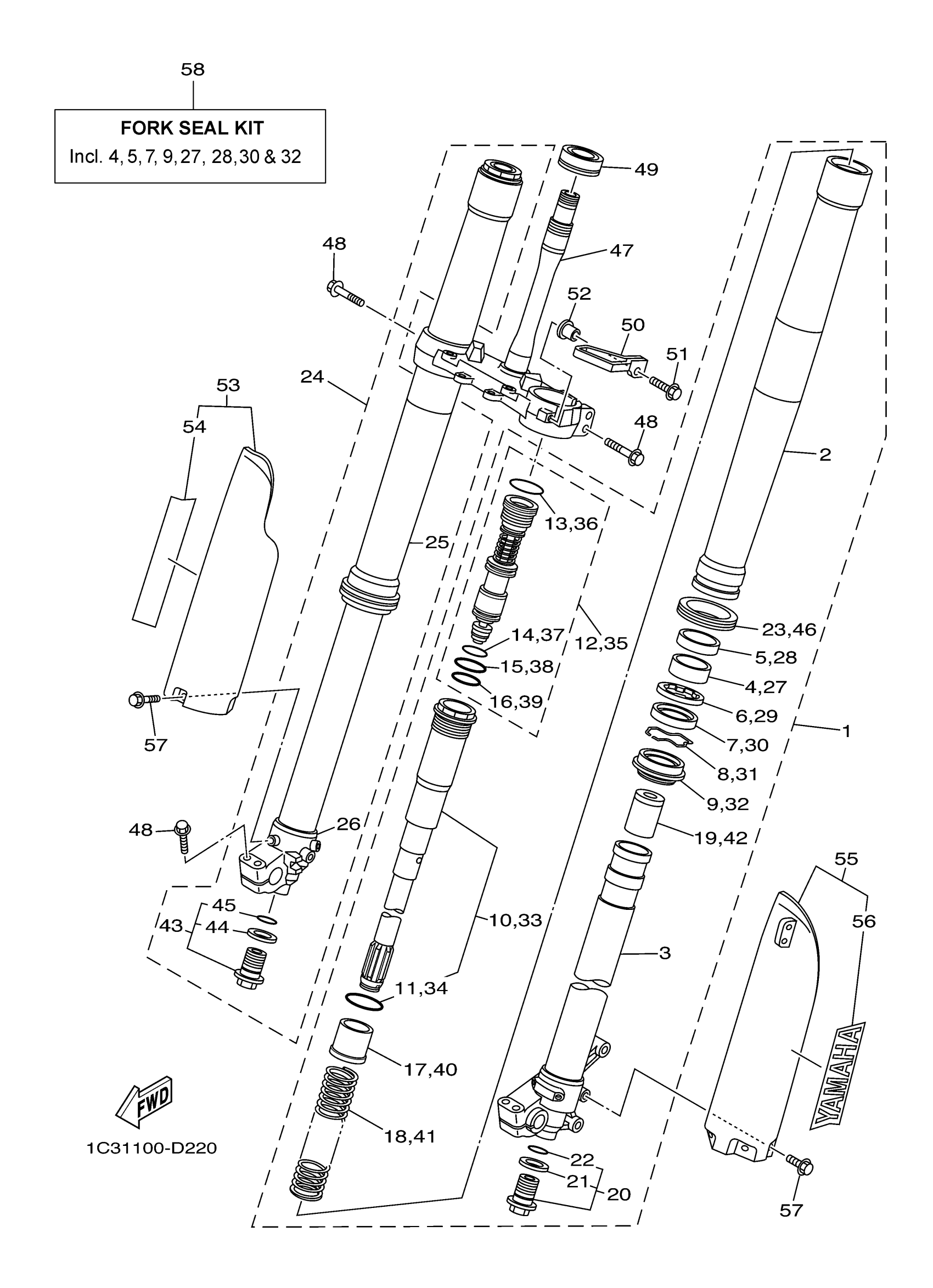

Yamaha YZ125T1 (YZ125) 1C31 2005 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

1C3-23102-00-00

Unavailable

2

. TUBE, OUTER

1C3-23136-L0-00

Unavailable

3

.. INNER TUBE COMP 2

1C3-23120-L0-00

Unavailable

4

PISTON, FRONT FORK

5XE-23171-L0-00

$27.99

5

METAL, SLIDE 1

5XE-23125-L0-00

$25.99

6

WASHER, OIL SEAL

5XE-23146-L0-00

Unavailable

7

OIL SEAL

1C3-23145-L0-00

$32.99

8

RING, SNAP

5XE-23153-L0-00

$7.99

9

SEAL, DUST

5XE-23144-L0-00

$22.99

10

. CYLINDER COMP, FRONT FORK

1C3-23170-L0-00

Unavailable

11

O-RING

1C3-23147-L1-00

$3.48

12

. VALVE COMP

1C3-2316A-L0-00

Unavailable

13

O-RING

1C3-23188-L1-00

$2.50

14

O-RING

5UX-23188-00-00

$9.99

15

O-RING

43F-23188-10-00

$7.99

16

.. O-RING

1C3-23188-M0-00

Unavailable

17

. SPACER

1C3-23118-L0-00

Unavailable

18

SPRING, FRONT FORK (K=4.1N/MM)

1C3-23141-L0-00

Unavailable

19

. SPACER

1C3-2316E-L0-00

Unavailable

20

BOLT, CAP

1C3-23111-L1-00

Unavailable

21

GASKET

2HH-23158-L0-00

Unavailable

22

GASKET

276-23114-01-00

Unavailable

23

. PROTECTER GUIDE COMP, 1

1C3-2314F-L0-00

Unavailable

24

FRONT FORK ASSY (R.H)

1C3-23103-00-00

Unavailable

25

. TUBE, OUTER

1C3-23136-L0-00

Unavailable

26

.. INNER TUBE COMP 1

1C3-23110-L0-00

Unavailable

27

PISTON, FRONT FORK

5XE-23171-L0-00

$27.99

28

METAL, SLIDE 1

5XE-23125-L0-00

$25.99

29

WASHER, OIL SEAL

5XE-23146-L0-00

Unavailable

30

OIL SEAL

1C3-23145-L0-00

$32.99

31

RING, SNAP

5XE-23153-L0-00

$7.99

32

SEAL, DUST

5XE-23144-L0-00

$22.99

33

. CYLINDER COMP, FRONT FORK

1C3-23170-L0-00

Unavailable

34

O-RING

1C3-23147-L1-00

$3.48

35

. VALVE COMP

1C3-2316A-L0-00

Unavailable

36

O-RING

1C3-23188-L1-00

$2.50

37

O-RING

5UX-23188-00-00

$9.99

38

O-RING

43F-23188-10-00

$7.99

39

.. O-RING

1C3-23188-M0-00

Unavailable

40

. SPACER

1C3-23118-L0-00

Unavailable

41

SPRING, FRONT FORK (K=4.1N/MM)

1C3-23141-L0-00

Unavailable

42

. SPACER

1C3-2316E-L0-00

Unavailable

43

BOLT, CAP

1C3-23111-L1-00

Unavailable

44

GASKET

2HH-23158-L0-00

Unavailable

45

GASKET

276-23114-01-00

Unavailable

46

. PROTECTER GUIDE COMP, 1

1C3-2314F-L0-00

Unavailable

47

UNDER BRACKET COMP.

1C3-23340-L0-00

Unavailable

48

BOLT 1

5NY-23346-L0-00

Unavailable

49

BEARING(4SR)

93332-00081-00

Unavailable

50

GUIDE, CABLE

5XE-23389-00-00

Unavailable

51

. BOLT, FLANGE

95027-06020-00

Unavailable

52

COLLAR

5XE-23113-00-00

Unavailable

53

PROTECTER COMP., 2

1C3-2314J-10-00

Unavailable

54

EMBLEM, YAMAHA

4XL-2153A-11-00

Unavailable

55

Protecter Comp. 1

1C3-2314H-11-00

Unavailable

56

EMBLEM, YAMAHA

4XL-2153A-11-00

Unavailable

57

BOLT 2

3SP-23356-L0-00

Unavailable

58

FORK SEAL KIT (TWO FORKS)

1C3-W003B-00-00

Unavailable
