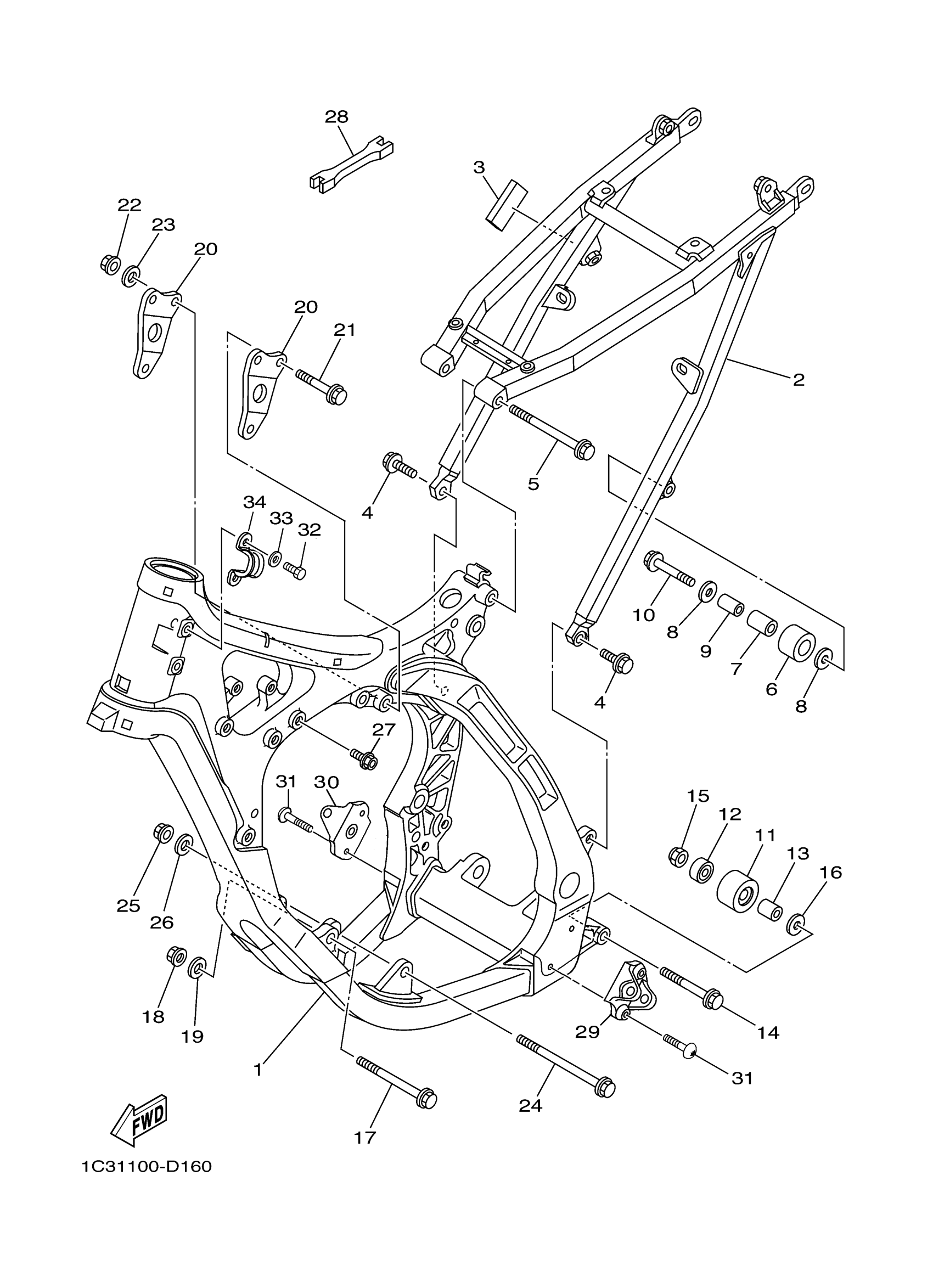

Yamaha YZ125T1 (YZ125) 1C31 2005 FRAME Diagram

#

Description
Price

1

FRONT FRAME COMP.

1C3-21101-00-00

Unavailable

2

REAR FRAME COMP.

1C3-21190-90-00

Unavailable

3

DAMPER

5GJ-21717-00-00

$5.49

4

BOLT, FLANGE

90105-08057-00

$4.94

5

BOLT, WASHER BASED (401)

90105-08120-00

$9.49

6

TENSIONER

30X-22178-00-00

$35.99

7

BUSH

4V4-22184-00-00

$4.47

8

WASHER, PLATE

90201-08045-00

$5.60

9

COLLAR

90387-08041-00

$8.49

10

BOLT, FLANGE(4MY)

95027-08040-00

$8.49

11

TENSIONER

3JD-22178-20-00

$43.99

12

BEARING (3X3)

93300-60804-00

$12.49

13

COLLAR(1NL)

90387-086N4-00

$9.49

14

BOLT, SMALL FLANGE

95027-08055-00

$5.60

15

NUT

90185-08055-00

$9.49

16

WASHER, PLATE(3XP)

90201-086P8-00

Unavailable

17

BOLT, FLANGE

90105-10080-00

Unavailable

18

NUT(4KG)

90179-10658-00

Unavailable

19

WASHER, PLAIN(3BM)

92907-10200-00

Unavailable

20

BRACKET, REAR UPPER 1

1C3-21425-00-00

Unavailable

21

BOLT, FLANGE

90105-08059-00

Unavailable

22

NUT(4KM)

90179-08674-00

Unavailable

23

WASHER, PLATE (12X)

90201-087F0-00

Unavailable

24

BOLT, FLANGE

90105-10072-00

Unavailable

25

NUT(4KG)

90179-10658-00

Unavailable

26

WASHER, PLAIN(3BM)

92907-10200-00

Unavailable

27

NUT

1C3-21244-20-00

Unavailable

28

WRENCH, HEXAGON

5ET-28166-10-00

Unavailable

29

BRACKET, FOOTREST 1

1C3-21447-00-00

Unavailable

30

. BRACKET, FOOTREST 2

1C3-21448-00-00

Unavailable

31

SCREW

90149-10022-00

Unavailable

32

BOLT(4GV)

97017-05012-00

Unavailable

33

WASHER, PLAIN (646)

92990-05600-00

Unavailable

34

CLAMP, WIRE HARNESS 2

1C3-21336-00-00

Unavailable
