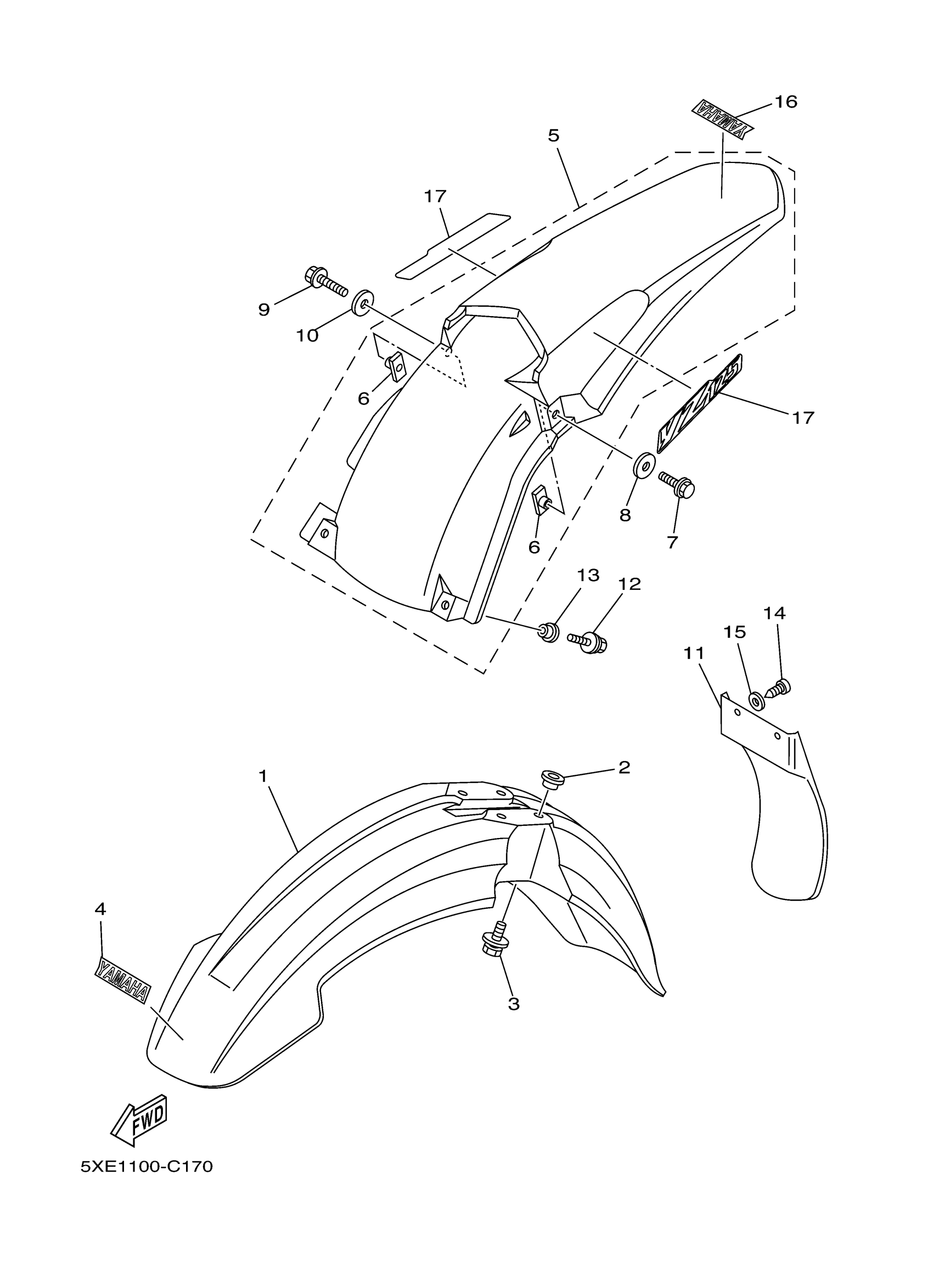

Yamaha YZ125T1 (YZ125) 1C31 2005 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

5HD-21511-00-00

$34.08

2

COLLAR

90387-06090-00

$5.93

3

BOLT, WITH WASHER (30X)

90119-06096-00

$2.88

4

EMBLEM YAMAHA

4ES-2153E-02-00

Unavailable

5

REAR FENDER COMP.

5XE-21610-00-00

$64.42

6

NUT, REAR FENDER

5XE-21635-10-00

$11.84

7

BOLT, FLANGE

90105-06090-00

$5.80

8

WASHER, PLATE (4L0)

90201-062A8-00

$5.80

9

BOLT, FLANGE

90105-06091-00

$4.41

10

WASHER, PLATE(36Y)

90201-063J2-00

$4.15

11

GUARD, FLAP

5UN-21642-10-00

$13.50

12

BOLT, WITH WASHER(4JX)

90119-06225-00

$6.15

13

COLLAR

90387-06009-00

$7.37

14

SCREW, TRUSS TAP.

97707-60016-00

$0.98

15

WASHER, PLATE

90201-06557-00

$2.57

16

EMBLEM YAMAHA

4ES-2153E-02-00

Unavailable

17

EMBLEM 1

1C3-2163G-00-00

Unavailable
