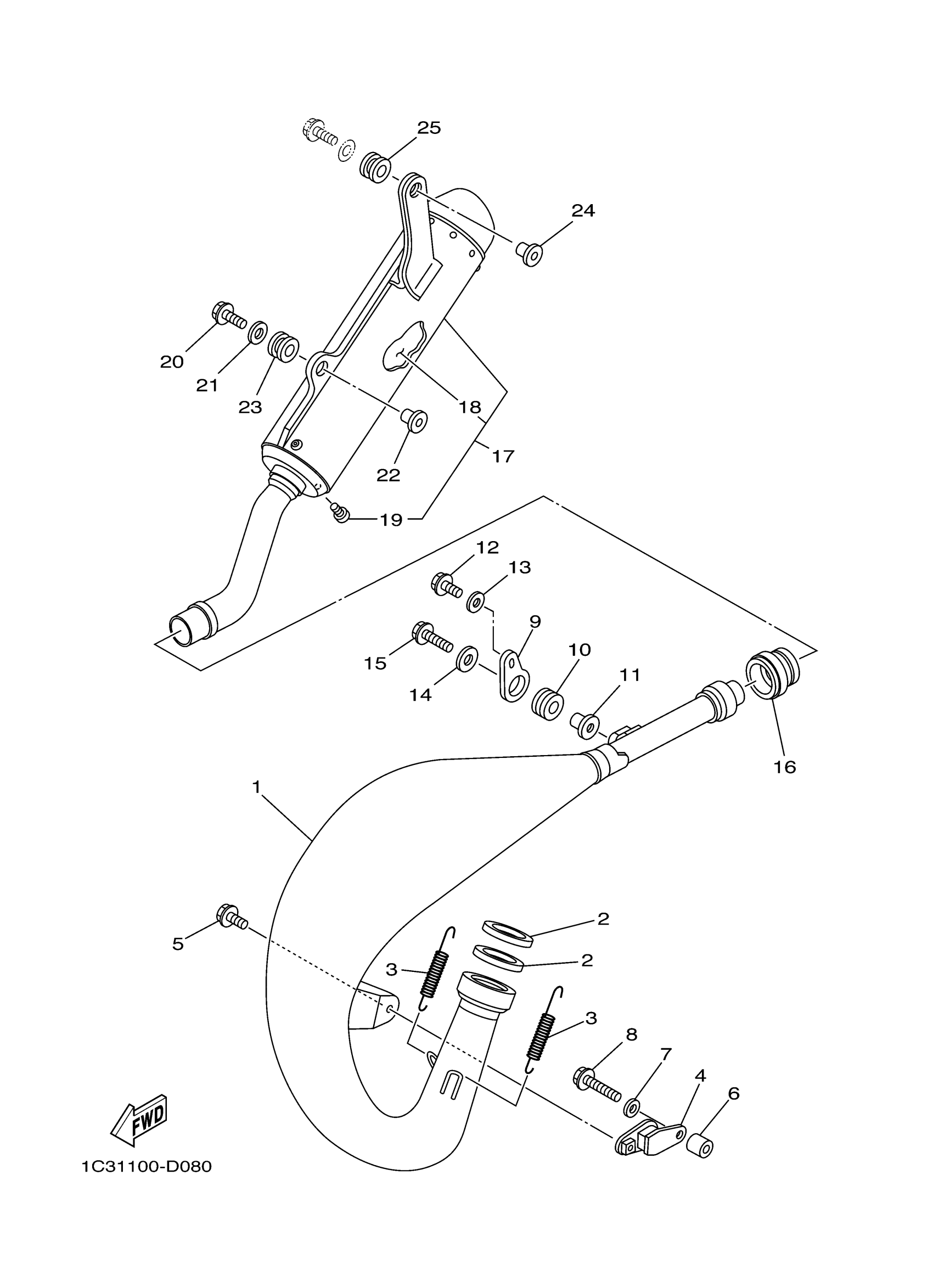

Yamaha YZ125T1 (YZ125) 1C31 2005 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSY 1

1C3-14610-00-00

$285.09

2

SEAL, EXHAUST

5MV-14642-00-00

$16.83

3

SPRING, TENSION

90506-20018-00

$7.30

4

STAY, MUFFLER 1

565-14771-01-00

$15.57

5

BOLT, FLANGE(4MY)

95027-06012-00

$3.05

6

SPACER

1C3-14763-00-00

$5.26

7

WASHER, PLATE

90201-06020-00

$5.86

8

BOLT, SMALL FLANGE

95027-06025-00

$2.95

9

STAY, MUFFLER 1

5CU-14771-01-00

$26.51

10

GROMMET(4EW)

90480-16561-00

$13.70

11

COLLAR(52E)

90387-063G3-00

$5.86

12

BOLT, FLANGE(4DU)

95027-06014-00

$0.73

13

WASHER, PLATE

90201-06557-00

$2.57

14

WASHER, PLATE(36Y)

90201-063J2-00

$4.15

15

BOLT, SMALL FLANGE

95027-06025-00

$2.95

16

JOINT, EXHAUST 1

4JY-14615-00-00

Unavailable

17

SILENCER, EXHAUST

5XE-14753-10-00

Unavailable

18

FIBER

5NY-1469A-00-00

Unavailable

19

BOLT, BUTTON HEAD

92017-06010-00

Unavailable

20

BOLT, SMALL FLANGE

95027-06025-00

$2.95

21

WASHER, PLATE(36Y)

90201-063J2-00

$4.15

22

COLLAR(52E)

90387-063G3-00

$5.86

23

GROMMET(4EW)

90480-16561-00

$13.70

24

COLLAR

90387-06039-00

Unavailable

25

GROMMET(36Y)

90480-16404-00

Unavailable
