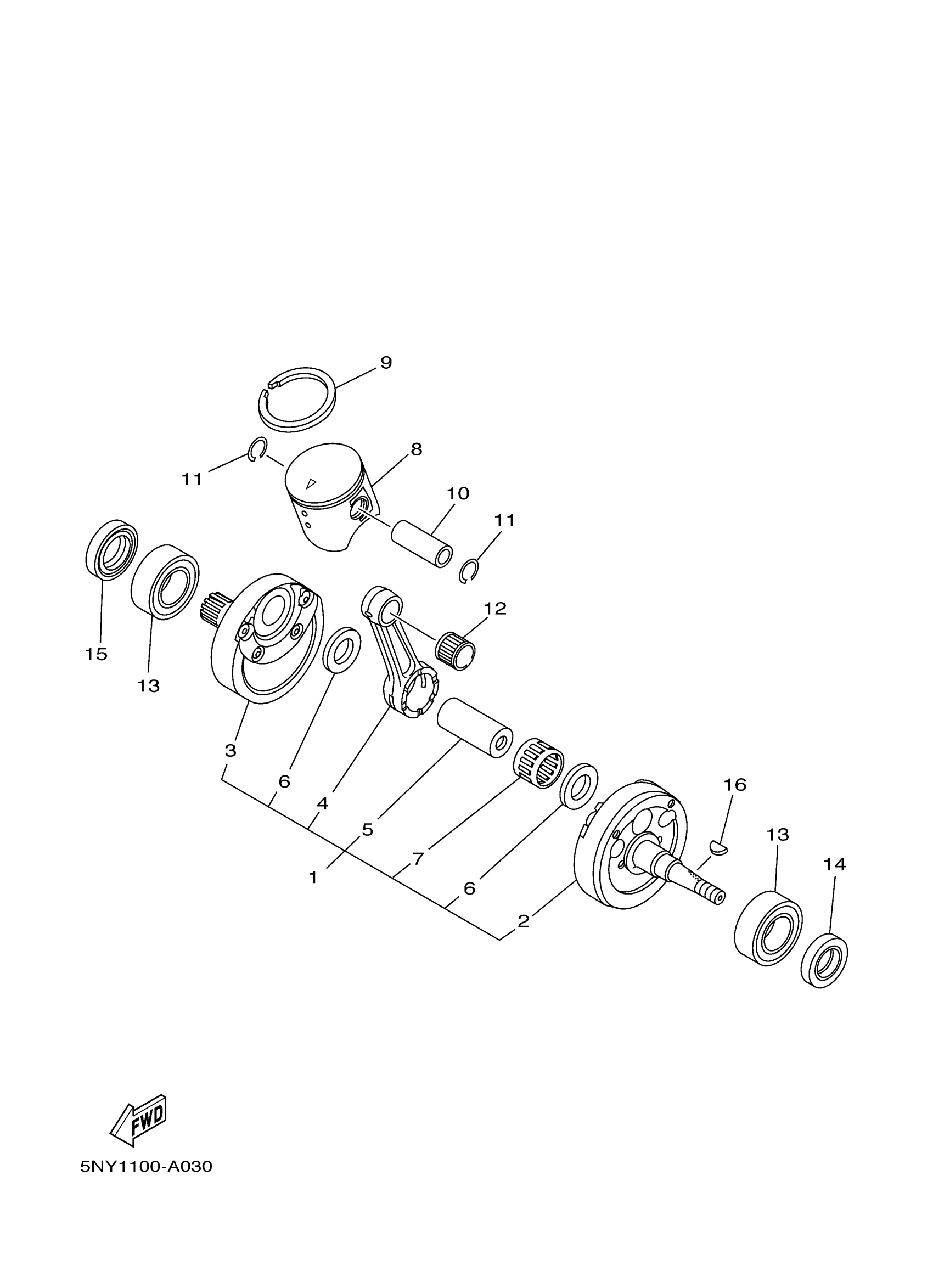

Yamaha YZ125T1 (YZ125) 1C31 2005 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

1C3-11400-20-00

$521.99

2

CRANKSHAFT

1C3-11410-10-00

$170.99

3

CRANKSHAFT

1C3-11420-00-00

$216.99

4

ROD, CONNECTING

1C3-11651-00-00

Unavailable

5

PIN, CRANK 1

3JD-11681-10-00

$68.99

6

WASHER(8AX)

90209-22326-00

$33.99

7

BEARING

93310-52238-00

$74.99

8

PISTON (STD)

1C3-11631-03-A0

$112.99

8

PISTON (STD)

1C3-11631-03-B0

$112.99

8

PISTON (STD)

1C3-11631-03-C0

$112.99

8

PISTON (STD)

1C3-11631-03-D0

$112.99

9

RING, PISTON

5NY-11611-00-00

$25.99

10

PIN, PISTON

1C3-11633-00-00

$36.99

11

CIRCLIP (4G0)

93450-16068-00

$7.49

12

BEARING

93310-21510-00

$33.99

13

BEARING(1LX)

93306-37204-00

Unavailable

14

OIL SEAL

93102-20485-00

Unavailable

15

OIL SEAL(87A)

93102-22419-00

Unavailable

16

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable
