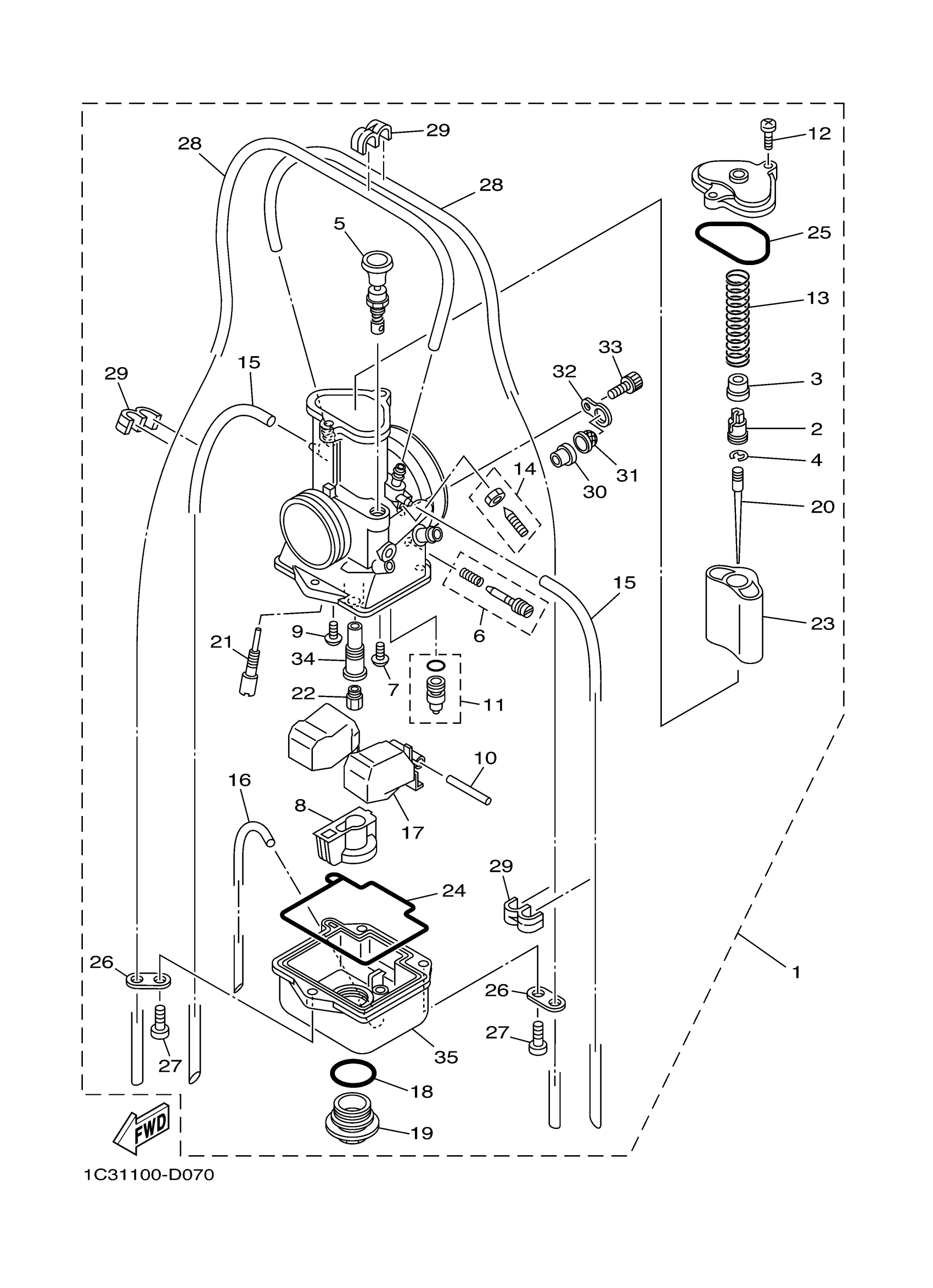

Yamaha YZ125T1 (YZ125) 1C31 2005 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

1C3-14101-00-00

Unavailable

2

HOLDER

5HD-14261-00-00

$24.99

3

RING

4PE-14194-00-00

$10.99

4

CLIP

3MA-14159-00-00

$7.99

5

PLUNGER, STARTER

3JE-14171-00-00

$72.99

6

AIR SCREW SET

5UN-14104-00-00

$9.99

7

SCREW

1FN-14565-00-00

$7.99

8

HOLDER

5ET-14261-01-00

$17.49

9

SCREW, PAN HEAD(JG1)

98507-04008-00

$2.14

10

PIN, FLOAT

353-14186-00-00

$7.99

11

NEEDLE VALVE SET

4PE-14107-38-00

$42.99

12

SCREW, PAN HEAD(N15)

98507-04014-00

$1.86

13

SPRING, THROTTLE VALVE

4PE-14131-00-00

$16.49

14

THROTTLE SCREW SET

4PE-14103-00-00

$20.99

15

PIPE

5ET-14197-00-00

$17.49

16

PIPE 1

3XV-14348-20-00

Unavailable

17

FLOAT

5ET-14185-00-00

Unavailable

18

O-RING

2K6-14147-00-00

Unavailable

19

PLUG, SCREW

5ET-14115-00-00

Unavailable

20

. NEEDLE (6CHY5-78)

284-14116-E3-00

Unavailable

20

NEEDLE (6CHY5-79)

284-14116-E4-00

Unavailable

20

NEEDLE (6CHY5-80)

284-14116-E5-00

Unavailable

20

NEEDLE (6CHY5-81)

284-14116-E6-00

Unavailable

20

. NEEDLE (6CHY5-82)

284-14116-E7-00

Unavailable

20

. NEEDLE (6CHY6-78)

284-14116-F3-00

Unavailable

20

. NEEDLE (6CHY6-79)

284-14116-F4-00

Unavailable

20

NEEDLE (6CHY6-80)

284-14116-F5-00

Unavailable

20

. NEEDLE (6CHY6-81)

284-14116-F6-00

Unavailable

20

. NEEDLE (6CHY6-82)

284-14116-F7-00

Unavailable

20

. NEEDLE (6CHY18-78)

284-14116-G3-00

Unavailable

20

. NEEDLE (6CHY18-79)

284-14116-G4-00

Unavailable

20

. NEEDLE (6CHY18-80)

284-14116-G5-00

Unavailable

20

. NEEDLE (6CHY18-81)

284-14116-G6-00

Unavailable

20

. NEEDLE (6CHY18-82)

284-14116-G7-00

Unavailable

21

JET, PILOT (# 30)

4KM-14142-30-00

Unavailable

21

JET, PILOT (# 32.5)

4KM-14142-32-00

Unavailable

21

JET, PILOT (# 35)

4KM-14142-35-00

Unavailable

21

JET, PILOT (# 37.5)

4KM-14142-37-00

Unavailable

21

JET, PILOT (# 40)

4KM-14142-40-00

Unavailable

21

JET, PILOT (# 42.5)

4KM-14142-42-00

Unavailable

21

JET, PILOT (# 45)

4KM-14142-45-00

Unavailable

21

JET, PILOT (# 47.5)

4KM-14142-47-00

Unavailable

21

JET, PILOT (# 50)

4KM-14142-50-00

Unavailable

22

JET,MAIN #390

137-14143-78-00

Unavailable

22

JET,MAIN #400

137-14143-80-00

Unavailable

22

JET,MAIN #410

137-14143-82-00

Unavailable

22

JET,MAIN #420

137-14143-84-00

Unavailable

22

JET,MAIN #430

137-14143-86-00

Unavailable

22

JET, MAIN #440

137-14143-88-00

Unavailable

22

JET, MAIN #450

137-14143-90-00

Unavailable

23

VALVE, THROTTLE 1

1C3-14112-40-00

Unavailable

23

VALVE, THROTTLE 1

1C3-14112-42-00

Unavailable

24

O-RING

5ET-1416A-00-00

Unavailable

25

O-RING

5ET-14147-00-00

Unavailable

26

PLATE

51R-14146-00-00

Unavailable

27

SCREW,PAN HEAD

98502-05014-00

Unavailable

28

PIPE, OVER FLOW

2J2-14196-00-00

Unavailable

29

CLIP

87M-14137-00-00

Unavailable

30

RING

5MV-14194-00-00

Unavailable

31

NET, FILTER 1

5MV-24514-00-00

Unavailable

32

PLATE

5MV-14146-00-00

Unavailable

33

SCREW

5MV-14216-00-00

Unavailable

34

HOLDER

5MV-14261-00-00

Unavailable

35

BODY, FLOAT CHAMBER 1

5NY-14181-00-00

Unavailable
