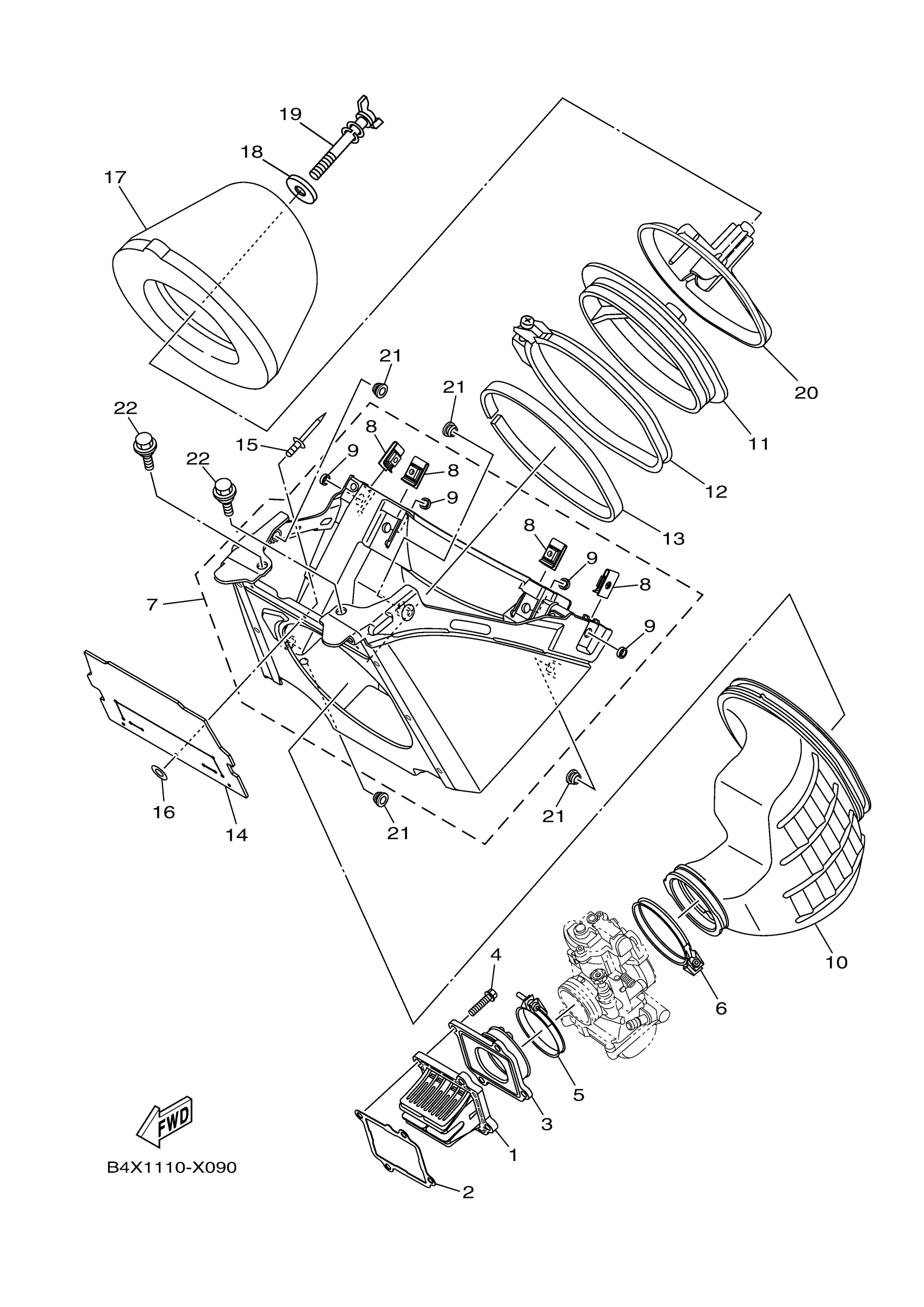

Yamaha YZ125SME (YZ125 MONSTER) D685 2025 INTAKE Diagram

#

Description
Price

1

REED VALVE ASSY

B4X-13610-01-00

$295.99

2

GASKET, VALVE SEAT

B4X-13621-00-00

$5.60

3

JOINT, CARBURETOR

B4X-13565-00-00

$45.99

4

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.48

5

HOSE CLAMP ASSY

90450-54007-00

$14.99

6

HOSE CLAMP ASSY

90450-70002-00

$22.99

7

AIR CLEANER CASE A

BCR-14401-00-00

$104.99

8

NUT, SPRING

90183-060A7-00

$8.49

9

COLLAR

90387-06069-00

Unavailable

10

JOINT, AIR CLEANER 1

1C3-14453-11-00

$67.99

11

HOLDER, GUIDE

5NY-14459-00-00

$37.99

12

BAND

5NY-14455-20-00

$40.99

13

SPACER

5NY-14442-00-00

$23.99

14

COVER, AIR CLEANER

BCR-1449E-00-00

$28.99

15

RIVET, BLIND

90267-32196-00

$1.07

16

WASHER, PLATE 8077743700

90201-03313-00

Unavailable

17

ELEMENT, AIR CLEANER

4XM-14451-01-00

Unavailable

18

WASHER (4H7)

90209-06096-00

Unavailable

19

BOLT, WING

90122-06005-00

Unavailable

20

GUIDE

BCR-14458-00-00

Unavailable

21

GROMMET

90480-10M28-00

Unavailable

22

BOLT

90109-06245-00

Unavailable
