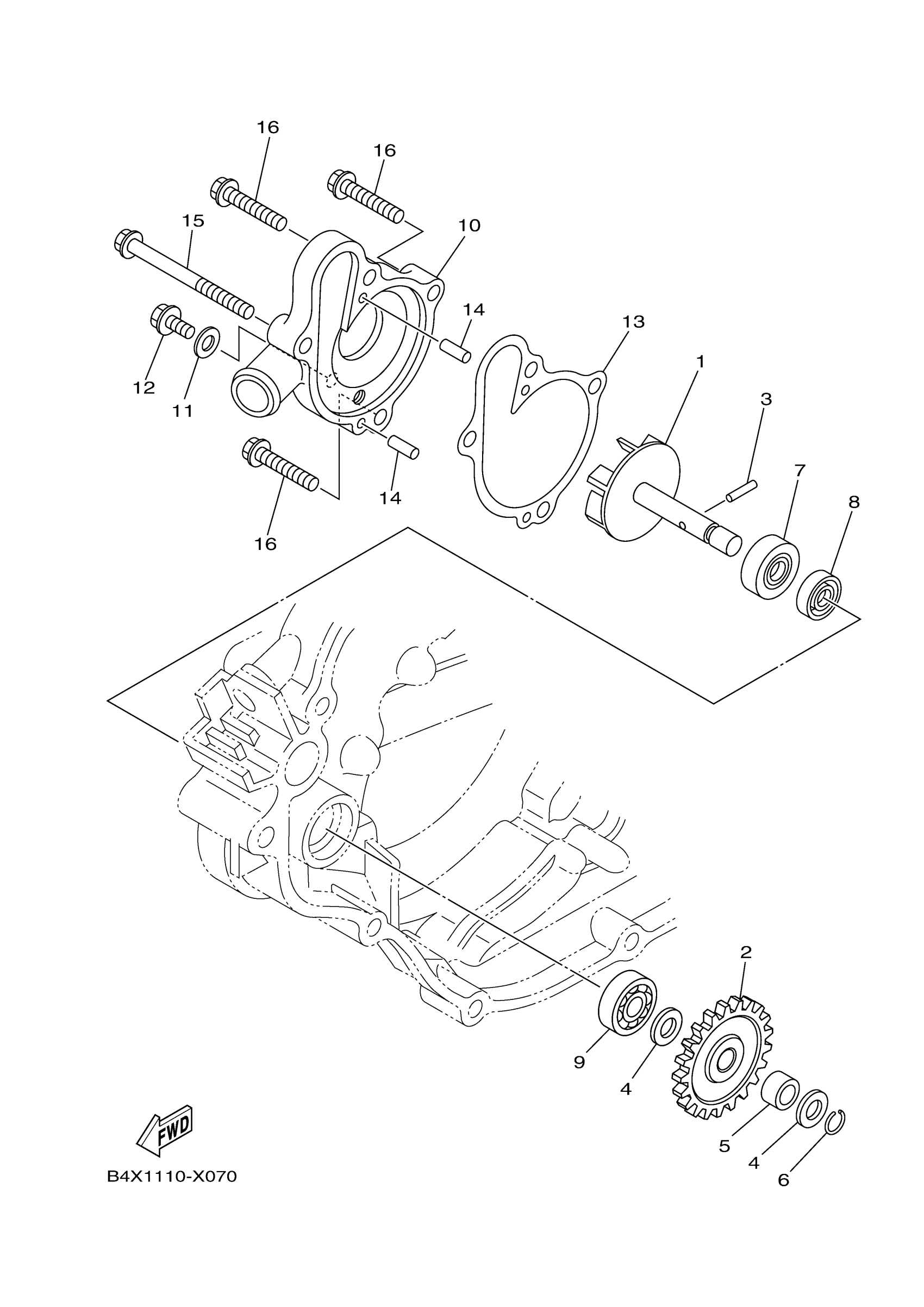

Yamaha YZ125SL (YZ125) D681 2025 WATER PUMP Diagram

#

Description
Price

1

IMPELLER SHAFT ASSY

1C3-12450-01-00

$64.63

2

GEAR

1C3-12453-10-00

Unavailable

3

PIN,DOWEL (603)

93603-12007-00

$1.54

4

WASHER, PLATE (5F7)

90201-08512-00

$5.75

5

COLLAR

90387-08032-00

$7.11

6

CIRCLIP

93440-07182-00

$2.93

7

OIL SEAL

93102-08004-00

$7.77

8

OIL SEAL (30X)

93102-08307-00

$3.82

9

BEARING

93300-60801-00

$19.50

9

BEARING

93300-60801-00

$19.50

10

COVER, HOUSING

1C3-12422-00-00

$52.30

11

GASKET 256113960000

90430-06014-00

Unavailable

12

BOLT, FLANGE

95022-06010-00

$5.08

13

GASKET, HOUSING COVER 2

1C3-12428-00-00

$6.29

14

PIN,DOWEL (603)

93604-10011-00

$4.89

15

BOLT, FLANGE DEEP

95E32-06065-00

Unavailable

16

BOLT, FLANGE DEEP RECESS

95E32-06025-00

Unavailable
