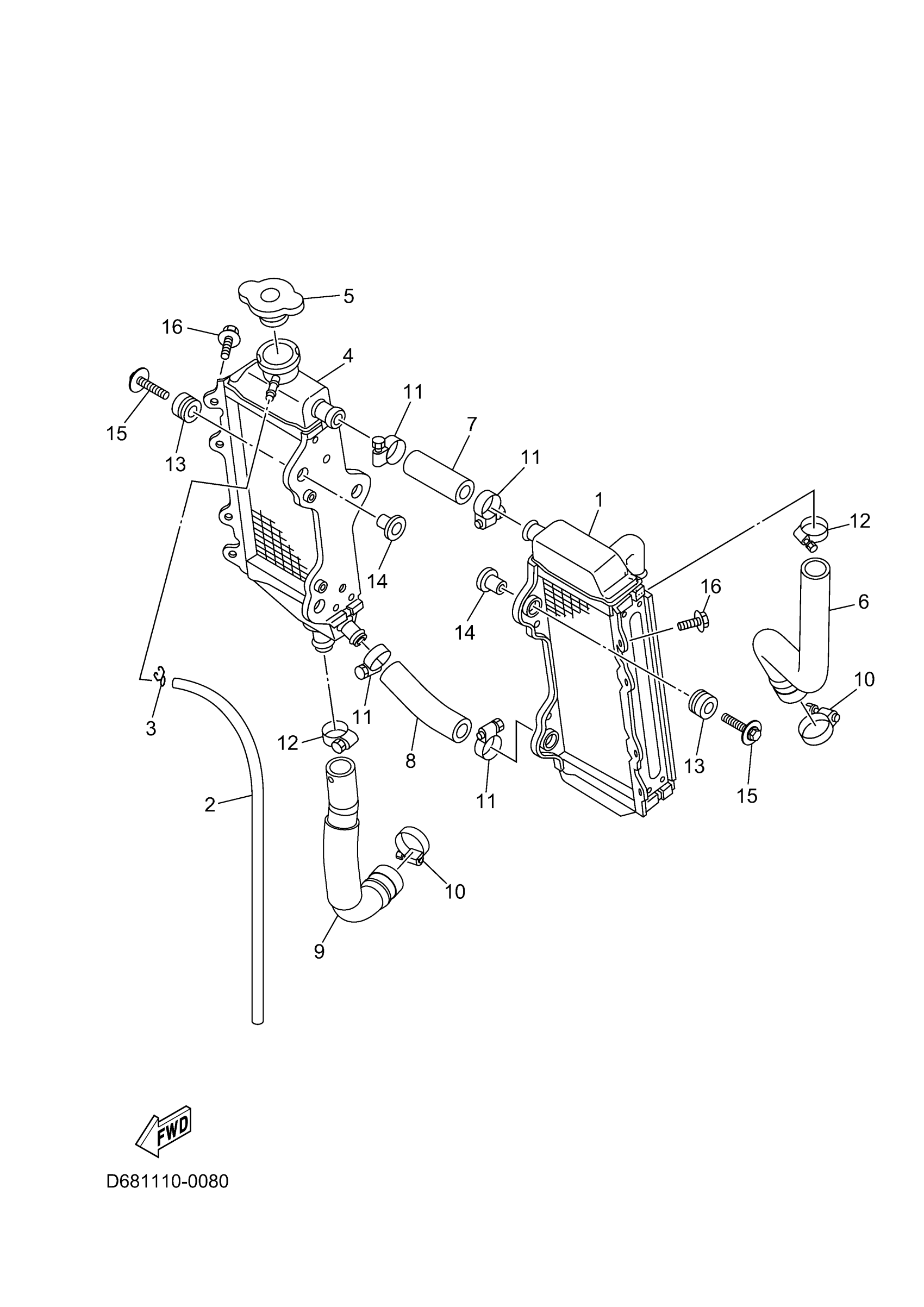

Yamaha YZ125SL (YZ125) D681 2025 RADIATOR & HOSE Diagram

#

Description
Price

1

RADIATOR ASSY

D68-1240A-00-00

$174.48

2

PIPE, BREATHER

BHR-12463-00-00

$4.94

3

CLIP 101235600

90467-08003-00

$5.88

4

RADIATOR COMP

D68-12461-00-00

$174.48

5

CAP, RADIATOR

5SL-12462-01-00

Unavailable

6

PIPE 1

1C3-12481-00-00

$15.20

7

PIPE 2

1C3-12482-00-00

$6.80

8

PIPE 3

1C3-12483-00-00

$4.95

9

PIPE 4

1C3-12484-00-00

$17.18

10

HOSE CLAMP ASSY

90450-28001-00

$11.70

11

HOSE CLAMP ASSY

90450-18M09-00

$9.82

12

HOSE CLAMP ASSY(64X)

90450-22M14-00

$12.87

13

GROMMET(3RB)

90480-15528-00

$6.22

14

COLLAR

90387-06065-00

$8.92

15

BOLT, WITH WASHER

90119-06262-00

$5.86

16

BOLT, WITH WASHER

90119-06239-00

Unavailable
