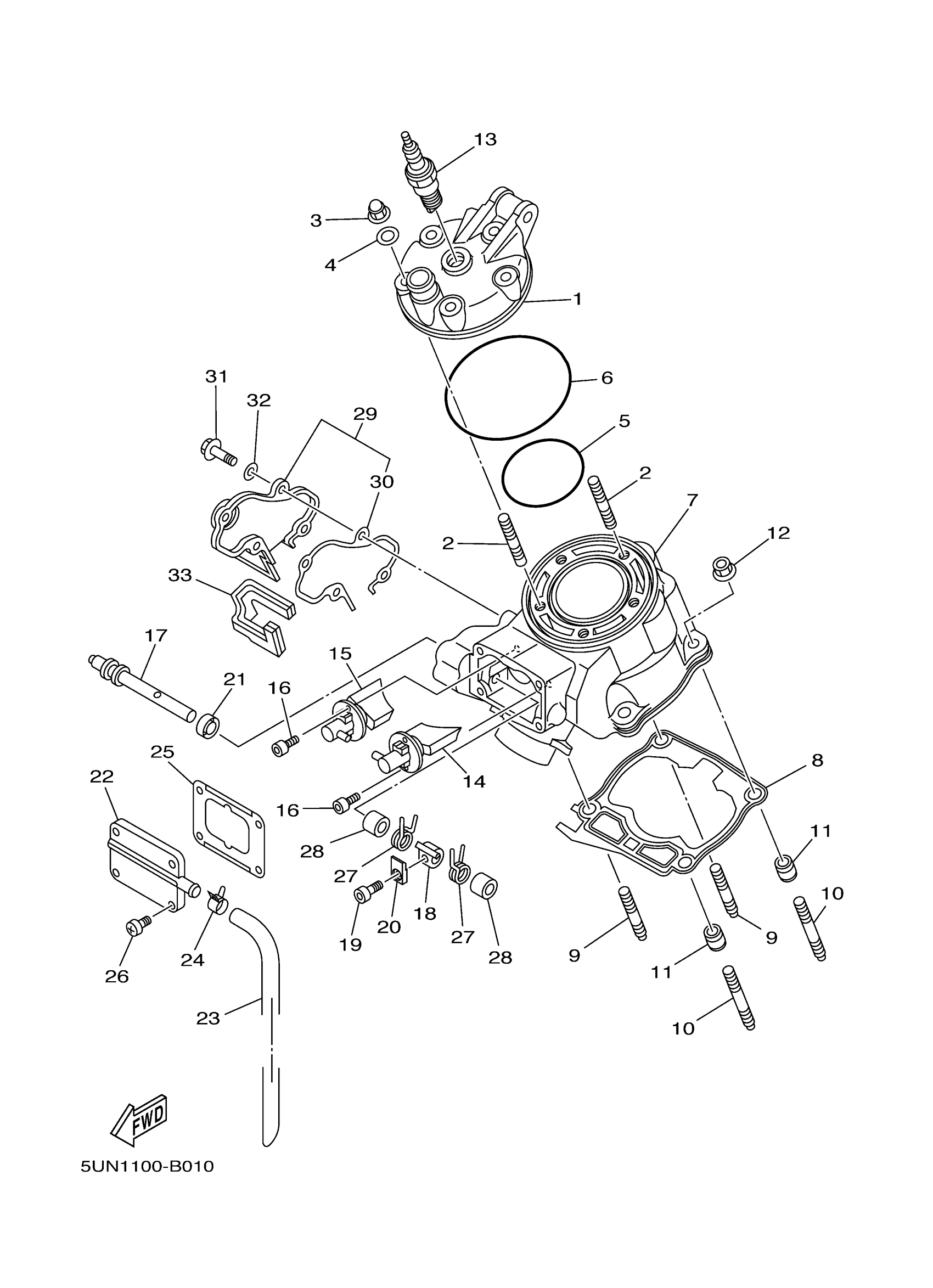

Yamaha YZ125S1 (YZ125) 5XE1 2004 CYLINDER HEAD Diagram

#

Description
Price

1

HEAD, CYLINDER 1

5UN-11111-00-00

Unavailable

2

BOLT, STUD (5V6)

90116-08394-00

$11.49

3

NUT, CROWN (4G0)

90176-08026-00

$14.99

4

WASHER, PLATE

90201-080L8-00

$4.41

5

O-RING (4U8)

93210-63442-00

$7.49

6

O-RING(3LD)

93210-90785-00

$11.49

7

CYLINDER 1

5XE-11311-21-00

Unavailable

8

GASKET, CYLINDER

5DH-11351-01-00

$25.99

9

BOLT, STUD (3R3)

90116-08318-00

$7.49

10

BOLT, STUD (10V)

90116-08388-00

$9.49

11

PIN, DOWEL

99590-10114-00

Unavailable

12

NUT(55X)

90179-08491-00

$8.49

13

BR9EG NGK SPLUG 4PK

BR9-EG000-00-00

Unavailable

14

VALVE ASSY

5HD-1131D-20-00

Unavailable

15

VALVE ASSY 2

5HD-1132D-20-00

Unavailable

16

BOLT, SOCKET

91317-05012-00

Unavailable

17

SHAFT 1

5HD-1131V-00-00

Unavailable

18

LEVER, LINK

4SS-11832-00-00

Unavailable

19

BOLT, SOCKET

91317-04010-00

Unavailable

20

HOLDER

5UN-11395-00-00

Unavailable

21

OIL SEAL (8X12X3-371)

93104-08040-00

Unavailable

22

COVER

4SS-1131M-01-00

Unavailable

23

PIPE, BREATHER 1

4JY-11166-00-00

Unavailable

24

CLIP(MG5)

90467-14117-00

Unavailable

25

GASKET

4JY-11354-10-00

Unavailable

26

SCREW, BINDING

98907-05016-00

Unavailable

27

SPRING, TORSION

90508-16134-00

Unavailable

28

COLLAR (7G5)

90387-08785-00

Unavailable

29

HOUSING 1

4JY-11991-01-00

Unavailable

30

GASKET

4JY-11993-01-00

Unavailable

31

BOLT(4TW)

97017-05016-00

Unavailable

32

WASHER(1RW)

92907-05600-00

Unavailable

33

SEAL, HOUSING

4JY-11995-00-00

Unavailable
