TRANSMISSION

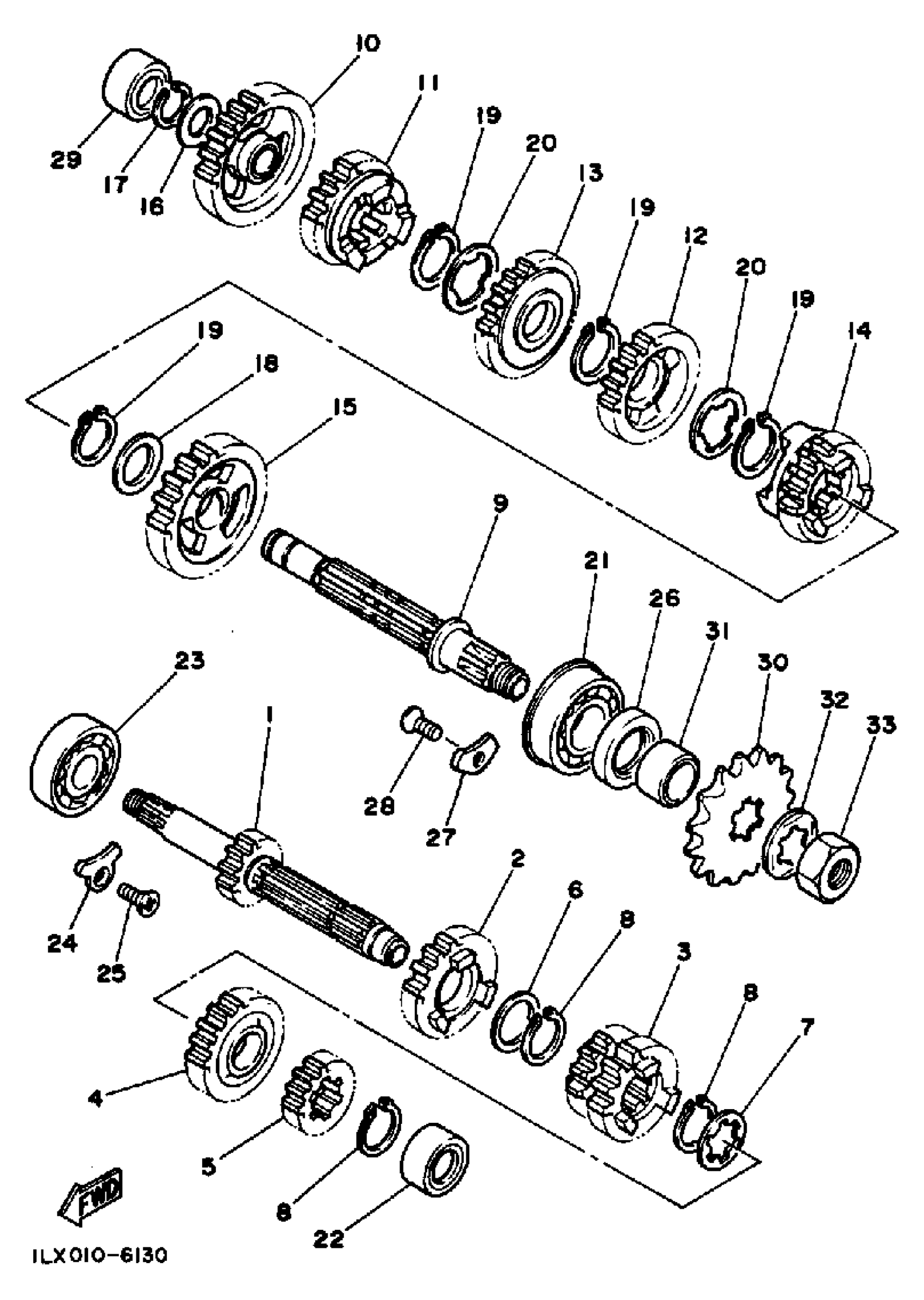

Yamaha YZ125S (YZ125) 1986 TRANSMISSION Diagram
#
1
AXLE, MAIN (13T)
1LX-17411-01-00
Unavailable
2
GEAR, 5TH PINION (20T)
1LX-17151-00-00
Unavailable
3
GEAR, 3RD PINION (17T)
1LX-17131-00-00
Unavailable
4
GEAR, 6TH PINION (21T)
1LX-17161-00-00
Unavailable
5
GEAR, 2ND PINION (15T)
1LX-17121-01-00
Unavailable
7
WASHER, SPECIAL SHAP
90209-16255-00
Unavailable
9
DRIVE AXLE COMP. (22T)
99999-01694-00
Unavailable
10
GEAR, 1ST WHEEL
1LX-17211-02-00
Unavailable
11
GEAR, 5TH WHEEL (23T)
1LX-17251-00-00
Unavailable
12
GEAR, 4TH WHEEL (22T)
1LX-17241-00-00
Unavailable
13
GEAR, 3RD WHEEL
3SR-17231-00-00
Unavailable
14
GEAR, 6TH WHEEL (22T)
3JD-17261-00-00
Unavailable
15
GEAR, 2ND WHEEL
3SR-17221-00-00
Unavailable
16
WASHER (566)
90201-15701-00
Unavailable
17
CIRCLIP
93440-15012-00
Unavailable
18
WASHER, PLATE (537)
90201-22555-00
Unavailable
19
CIRCLIP (537)
93410-22039-00
Unavailable
20
WASHER (537)
90209-18135-00
Unavailable
21
BRG,R-B 6304 52MM 150G NT
93306-30411-00
Unavailable
22
BRG,CYL-CAL ROLLER 16G KY (1W1
93311-41530-00
Unavailable
23
BEARING(4HM)
93306-30317-00
Unavailable
24
PLATE, BEARING COVER
1LX-15383-00-00
Unavailable
25
SCREW, OVAL HEAD (92701-06012)
98603-06012-00
Unavailable
26
OIL SEAL (26X38X5-181)
93102-26042-00
Unavailable
27
PLATE, BEARING COVER
4XM-15383-00-00
Unavailable
28
SCREW, OVAL HEAD (92701-06012)
98603-06012-00
Unavailable
29
BEARING, CYLINDRICAL(2TV)
93311-31567-00
Unavailable
30
SPROCKET, DRIVE 12T
93832-12014-00
Unavailable
30
SPROCKET, DRIVE 13T
93832-13027-00
Unavailable
30
SPROCKET, DRIVE 14 (1G81746140)
93832-14044-00
Unavailable
31
COLLAR (3V3)
90387-202A0-00
Unavailable
32
WASHER, LOCK (1L8)
90215-16127-00
Unavailable
33
NUT (1L8)
90179-16226-00
Unavailable
