1986 Yamaha YZ125 (YZ125S) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1986 Yamaha YZ125 (YZ125S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

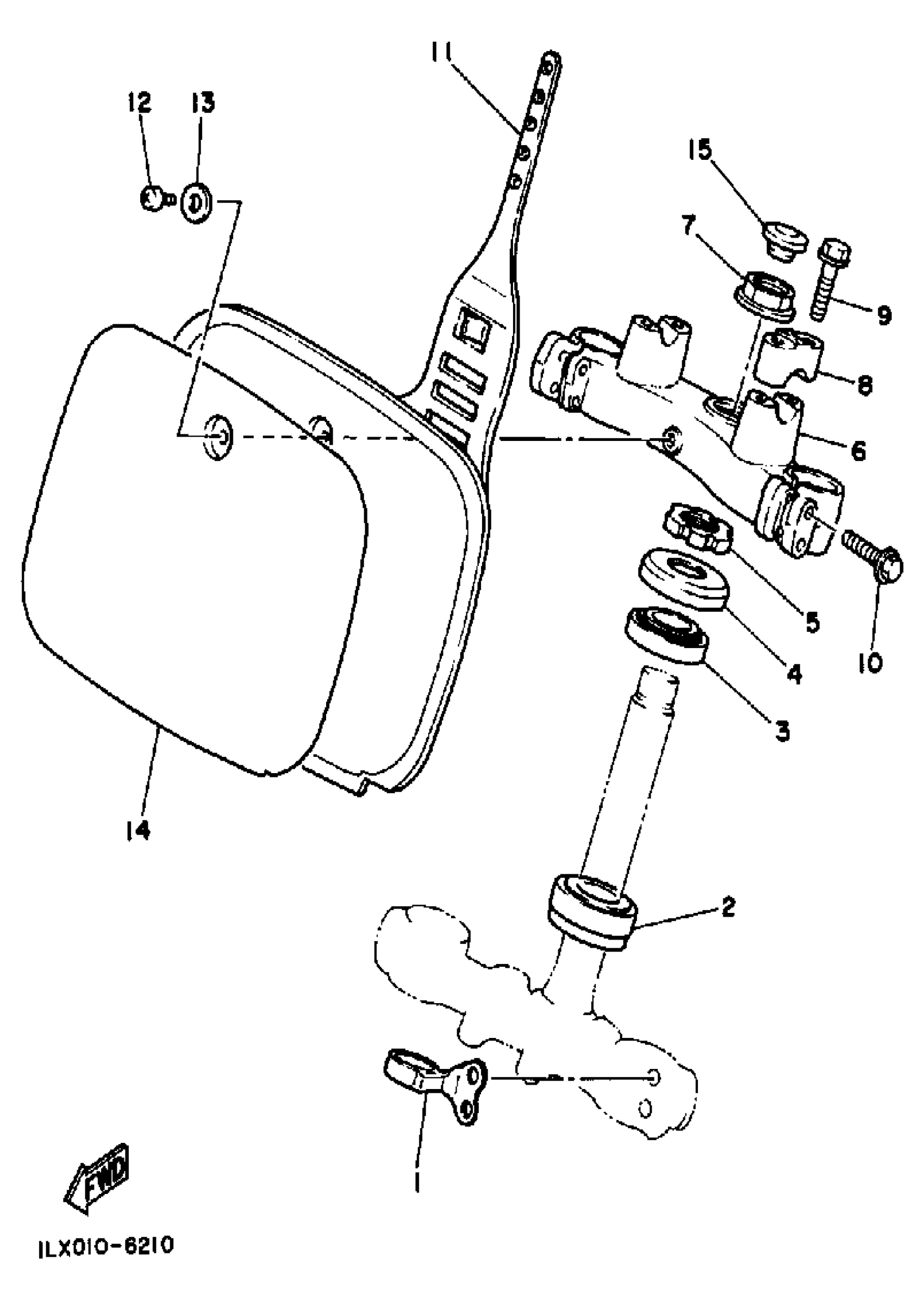

1986 Yamaha YZ125 (YZ125S) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GUIDE, WIRE

3R4-23389-00-00

1
Out of stock

2

1

$60.13

In stock

3

BRG, TAPERED ROLLER (409)

93332-00001-00

1
Out of stock

4

COVER, BALL RACE 2

1W1-23416-00-00

—

$25.83

In stock

5

NUT

90179-25004-00

1

$20.78

In stock

6

CROWN, HANDLE

39W-23435-01-98

1
Out of stock

7

NUT

90179-22330-00

1
Out of stock

8

HOLDER, HANDLE UPPER

1E6-23441-00-00

1

$22.38

In stock

9

BOLT, FLANGE

95817-08035-00

1

$6.68

In stock

10

BOLT, FLANGE

95814-08040-00

1

$3.15

In stock

11

PLATE, NUMBER

3XJ-23485-01-00

1
Out of stock

12

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

13

1

$6.42

In stock

14

EMBLEM

1LX-23395-00-00

1
Out of stock

15

CAP

34K-2319U-00-00

1
Out of stock
