1986 Yamaha YZ125 (YZ125S) Front Fork Diagram

← All diagrams

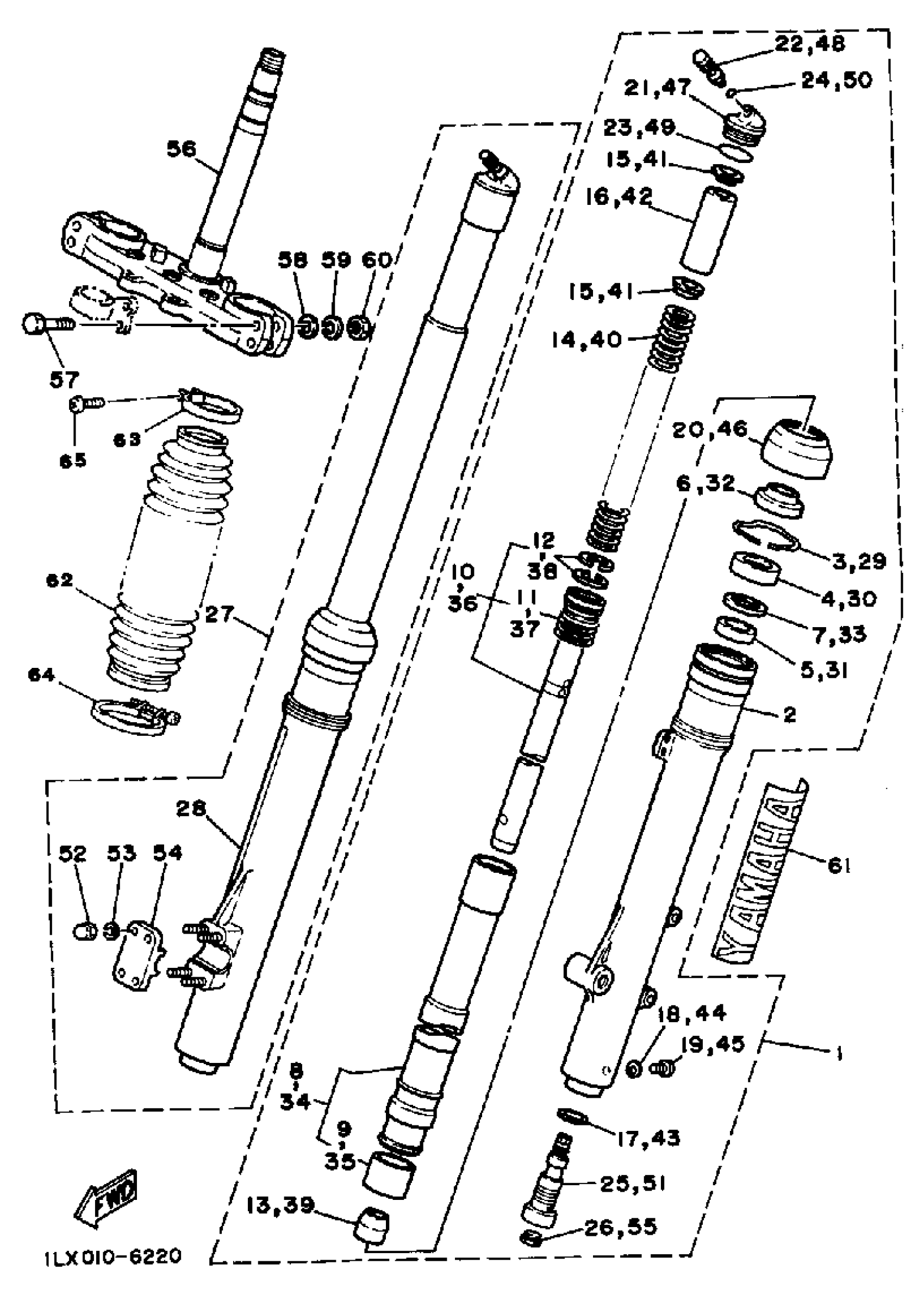

Find the part on the Front Fork diagram for your 1986 Yamaha YZ125 (YZ125S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha YZ125 (YZ125S) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY LH

(1LX-23102-L0-00)

1
Out of stock

2

. TUBE, OUTER 1

1LX-23126-L0-00

1
Out of stock

3

RING, SNAP

4V4-23153-L0-00

1

$8.66

In stock

4

OIL SEAL

23X-23145-L0-00

1

$27.63

In stock

5

METAL, SLIDE 1

5EB-23125-00-00

1
Out of stock

6

SEAL, DUST

23X-23144-L0-00

1

$19.73

In stock

7

WASHER

4V4-23146-L0-00

1

$5.93

In stock

8

. INNER TUBE 1

1LX-23110-L0-00

1
Out of stock

9

. PISTON, FRONT FORK

4V4-23171-L0-00

1
Out of stock

10

. CYLINDER, FRONT FORK

1LX-23170-L0-00

1
Out of stock

11

.. SPRING, SUB

55Y-23152-M0-00

1
Out of stock

12

.. RING, PISTON FRONT FORK

4V4-23157-L0-00

1
Out of stock

13

. SPINDLE, TAPER

23X-23173-L0-00

1
Out of stock

14

. SPRING, FRONT FORK STD (K@0305)

39X-23141-00-00

1
Out of stock

14

. SPRING, FRONT FORK SOFT (K@0275)

39X-23141-10-00

1
Out of stock

14

SPRING, FRONT FORK HARD (K@0.325)

39X-23141-20-00

1
Out of stock

15

SEAT, SPRING UPPER

4V4-23142-L0-00

—
Out of stock

16

. SPACER

1LV-23118-L0-00

1
Out of stock

16

. SPACER (L=80)

5X6-23118-10-00

1
Out of stock

17

GASKET

23X-23158-L0-00

—

$3.83

In stock

18

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

19

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

20

. SEAL, DUST

1LX-23144-L0-00

1
Out of stock

21

BOLT,CAP

43M-23111-L0-00

1
Out of stock

22

AIR VALVE COMP.

23X-23190-L0-00

—
Out of stock

23

O-RING

4V4-23188-L1-00

—

$4.77

In stock

24

O-RING

3J2-23147-00-00

—
Out of stock

25

. VALVE

56A-2316A-L0-00

1
Out of stock

26

PLUG

55Y-2312G-M0-00

—
Out of stock

27

FRONT FORK ASSEMBLY RH

(1LX-23103-L0-00)

1
Out of stock

28

. TUBE, OUTER 2

1LX-23136-L0-00

1
Out of stock

29

RING, SNAP

4V4-23153-L0-00

1

$8.66

In stock

30

OIL SEAL

23X-23145-L0-00

1

$27.63

In stock

31

METAL, SLIDE 1

5EB-23125-00-00

1
Out of stock

32

SEAL, DUST

23X-23144-L0-00

1

$19.73

In stock

33

WASHER

4V4-23146-L0-00

1

$5.93

In stock

34

. INNER TUBE 1

1LX-23110-L0-00

1
Out of stock

35

. PISTON, FRONT FORK

4V4-23171-L0-00

1
Out of stock

36

. CYLINDER, FRONT FORK

1LX-23170-L0-00

1
Out of stock

37

.. SPRING, SUB

55Y-23152-M0-00

1
Out of stock

38

.. RING, PISTON FRONT FORK

4V4-23157-L0-00

1
Out of stock

39

. SPINDLE, TAPER

23X-23173-L0-00

1
Out of stock

40

. SPRING, FRONT FORK STD (K@0305)

39X-23141-00-00

1
Out of stock

40

. SPRING, FRONT FORK SOFT (K@0275)

39X-23141-10-00

1
Out of stock

40

SPRING, FRONT FORK HARD (K@0.325)

39X-23141-20-00

1
Out of stock

41

SEAT, SPRING UPPER

4V4-23142-L0-00

—
Out of stock

42

. SPACER

1LV-23118-L0-00

1
Out of stock

42

. SPACER (L=80)

5X6-23118-10-00

1
Out of stock

43

GASKET

23X-23158-L0-00

—

$3.83

In stock

44

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

45

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

46

. SEAL, DUST

1LX-23144-L0-00

1
Out of stock

47

BOLT,CAP

43M-23111-L0-00

1
Out of stock

48

AIR VALVE COMP.

23X-23190-L0-00

—
Out of stock

49

O-RING

4V4-23188-L1-00

—

$4.77

In stock

50

O-RING

3J2-23147-00-00

—
Out of stock

51

. VALVE

56A-2316A-L0-00

1
Out of stock

52

NUT

5Y3-23393-00-00

—

$8.17

In stock

53

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

54

HOLDER, AXLE

1LX-23167-L0-00

1
Out of stock

55

PLUG

55Y-2312G-M0-00

—
Out of stock

56

UNDER BRACKET

1LX-23340-L0-00

1
Out of stock

57

BOLT (1E6)

90101-08340-00

—

$2.72

In stock

58

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

59

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

60

NUT(6L2)

95333-08600-00

—

$3.20

In stock

61

EMBLEM

1LX-23108-00-00

1
Out of stock

62

BOOT, FRONT FORK

43M-23191-L0-00

1
Out of stock

63

BAND

43M-23192-L0-00

—
Out of stock

64

BAND

3LD-23489-00-00

—

$26.00

In stock

65

SCREW, PAN HEAD

98507-04018-00

—
Out of stock
