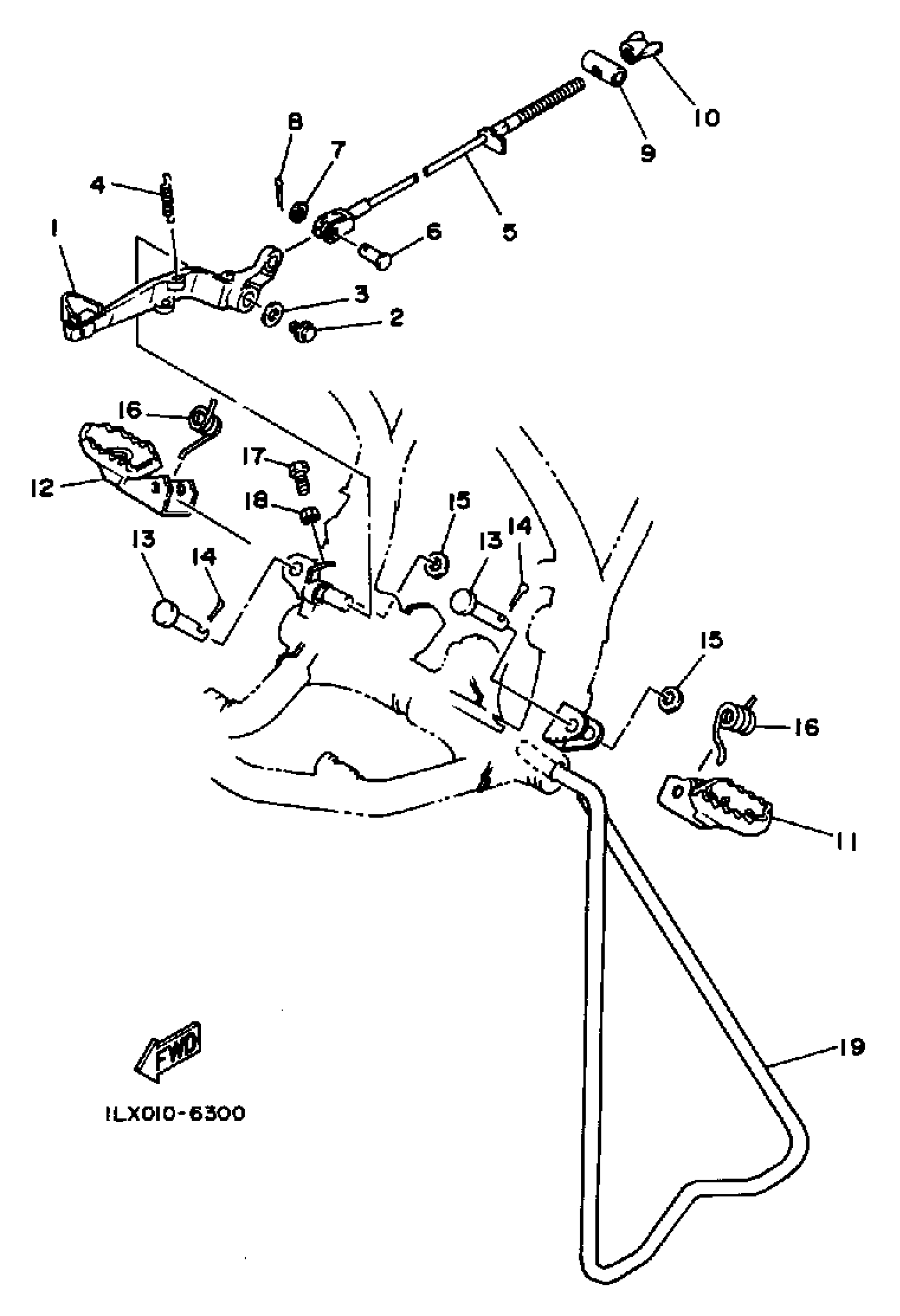

Yamaha YZ125S (YZ125) 1986 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

1LX-27200-01-00

Unavailable

2

BOLT, FLANGE (3JPE)

95024-08016-00

$9.49

3

WASHER, PLATE (12X)

90201-087F0-00

$5.60

4

SPRING, TENSION

90506-16391-00

Unavailable

5

CABLE, BRAKE

39X-26351-00-00

Unavailable

6

PIN, CLEVIS

91790-08021-00

Unavailable

7

.. WASHER, PLATE

92990-08600-00

Unavailable

8

PIN, COTTER

91490-25020-00

$3.19

9

PIN 1562723700

90249-12008-00

$8.49

10

NUT, WING (1K5)

90175-06013-00

$4.88

11

FOOTREST 1

23X-27411-03-00

Unavailable

12

FOOTREST 2

23X-27421-04-00

Unavailable

13

PIN, CLEVIS (23X)

90240-10101-00

$12.49

14

PIN, COTTER

91490-25020-00

$3.19

15

WASHER, PLAIN(735)

90201-10119-00

Unavailable

16

SPRING, TORSION (23X)

90508-20583-00

Unavailable

17

BOLT

90101-06392-00

Unavailable

18

NUT(650)

95380-06700-00

Unavailable

19

STAND,SIDE

4LB-27311-00-00

Unavailable
