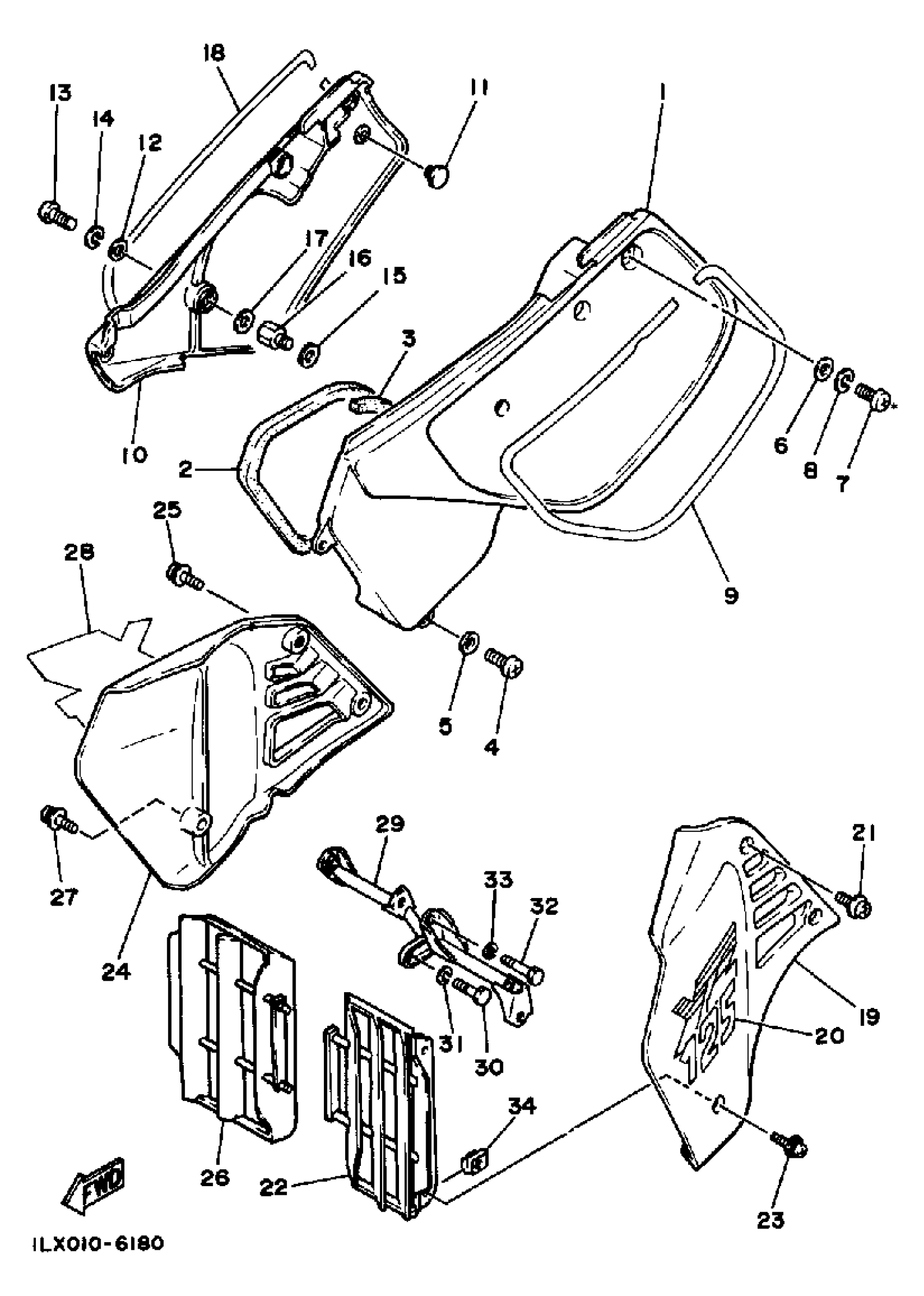

Yamaha YZ125S (YZ125) 1986 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE LEFT

1LX-21711-01-98

Unavailable

2

SEAL

39W-14452-00-00

Unavailable

3

SEAL

39X-14452-00-00

Unavailable

4

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

5

WASHER(6TA)

92907-06600-00

$2.72

6

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

7

SCREW, PAN

98507-06014-00

$8.49

8

WASHER, SPRING

92995-06100-00

Unavailable

9

GRAPHIC SET 1

1LX-2173L-00-00

Unavailable

10

COVER, SIDE 2 (2HG)

99999-01787-00

Unavailable

11

DAMPER, LOCATING 1

22W-24181-00-00

$6.99

12

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

13

SCREW, PAN

98507-06014-00

$8.49

14

WASHER, SPRING

92995-06100-00

Unavailable

15

WASHER, PLATE (4F4)

90201-063A5-00

$9.49

16

BOLT (3R4)

90109-06551-00

Unavailable

17

WASHER, PLAIN

92990-08200-00

Unavailable

18

GRAPHIC SET 2

1LX-2174L-00-00

Unavailable

19

COVER, SIDE 3

1LX-21731-00-00

Unavailable

20

GRAPHIC, FUEL TANK 7

1LX-24254-00-00

Unavailable

21

SCREW, WITH WASHER (517).

90159-06013-00

Unavailable

22

PANEL 1

24Y-2172A-01-00

Unavailable

23

SCREW, WITH WASHER (22W)

90159-05073-00

Unavailable

24

COVER, SIDE 4

1LX-21741-00-00

Unavailable

25

SCREW, WITH WASHER (517).

90159-06013-00

Unavailable

26

PANEL 2

1LX-2172F-01-00

Unavailable

27

SCREW, WITH WASHER (22W)

90159-05073-00

Unavailable

28

GRAPHIC, FUEL TANK 7

1LX-24254-00-00

Unavailable

29

GUARD, RADIATOR

2HG-2174F-00-00

Unavailable

30

BOLT (661)

97013-06012-00

Unavailable

31

WASHER, SPRING

92995-06100-00

Unavailable

32

BOLT, HEXAGON W/W DEEP RECESS

97E95-06555-00

Unavailable

33

WASHER, SPRING

92995-06100-00

Unavailable

34

NUT

22W-21791-00-00

Unavailable
