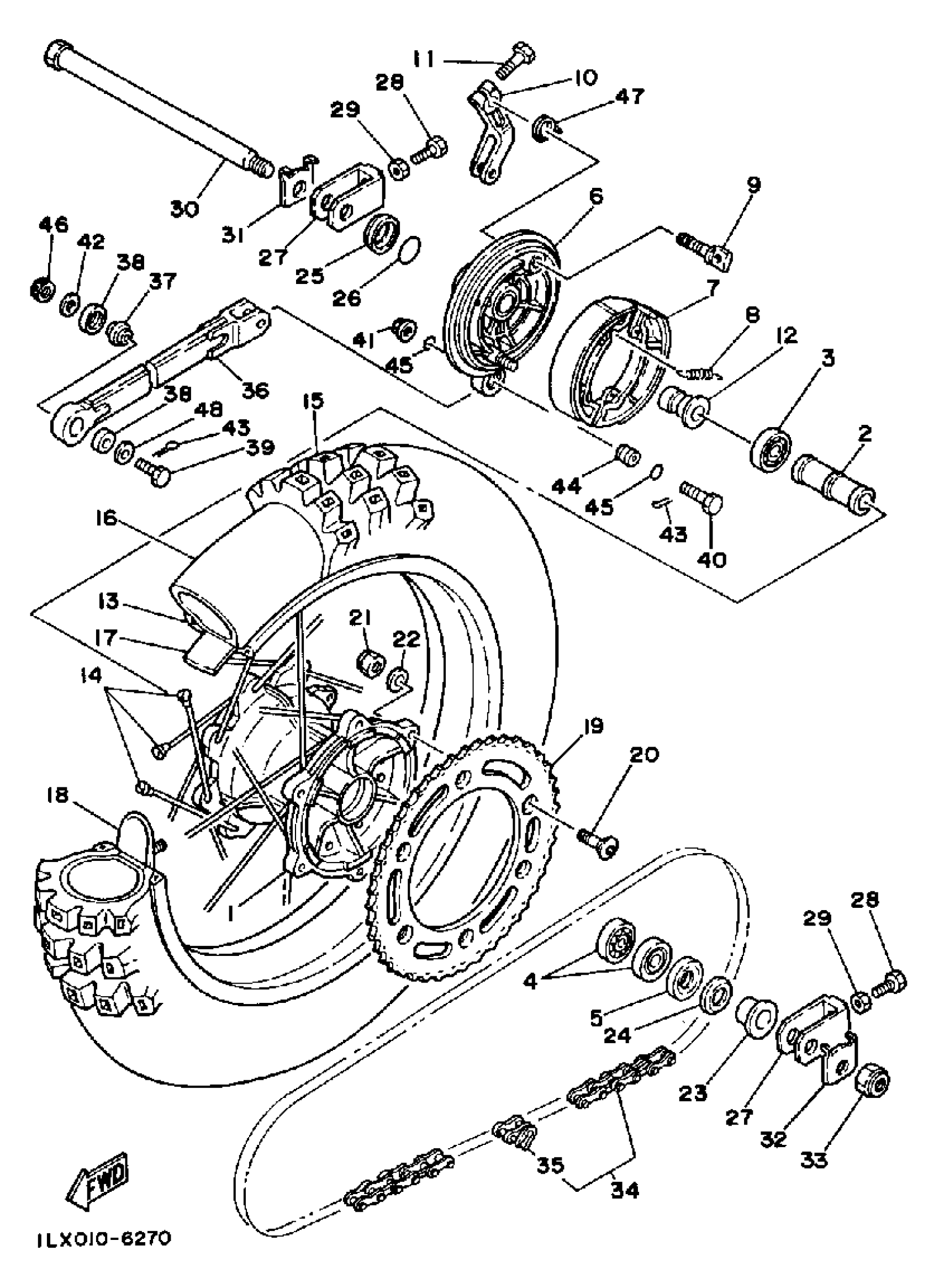

Yamaha YZ125S (YZ125) 1986 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

1LX-25311-01-98

Unavailable

2

SPACER(1LX)

90560-20278-00

$29.99

3

BEARING(8AB)

93306-00444-00

$41.99

4

BEARING(3BN)

93306-00438-00

$37.99

5

OIL SEAL(39X)

93106-28023-00

$12.49

6

PLATE, BRAKE SHOE

1LX-25321-00-98

Unavailable

7

BRAKE SHOE KIT

39W-W253E-10-00

$38.99

8

SPRING (5T9)

90506-17328-00

Unavailable

9

CAMSHAFT

49T-25351-00-00

Unavailable

10

LEVER, CAMSHAFT

5X4-25355-00-00

Unavailable

11

BOLT, HEXAGON (462)

90101-06291-00

$8.49

12

COLLAR

90387-200H1-00

Unavailable

13

RIM 1.85

94418-18444-00

Unavailable

14

SPOKE SET, REAR

56A-25304-00-00

Unavailable

15

TIRE

94110-187N4-00

Unavailable

16

TUBE (3R9)

94241-18153-00

Unavailable

17

BAND, RIM (2J4)

94340-18086-00

Unavailable

18

SPACER, BEAD

2X3-25394-00-00

Unavailable

19

SPROCKET, DRIVEN 44T

39W-25444-00-00

Unavailable

19

SPROCKET,DRIVN 45T

39W-25445-01-00

Unavailable

19

SPROCKET, DRIVEN 46T

39W-25446-00-00

Unavailable

19

SPROCKET, DRIVEN 48T

3R4-25448-01-XX

Unavailable

19

SPROCKET, DRIVEN 50T

3R4-25450-01-XX

Unavailable

19

SPROCKET, DRIVEN 52T

3R4-25452-01-XX

Unavailable

20

BOLT(3RB)

90109-081G1-00

Unavailable

21

NUT, SELF-LOCKING (3Y2)

90185-08089-00

Unavailable

22

WASHER, PLATE(3XP)

90201-086P8-00

Unavailable

23

COLLAR

90387-2000C-00

Unavailable

24

COVER, HUB DUST

4V4-25367-00-00

Unavailable

25

COVER, PLATE

23X-25327-00-00

Unavailable

26

O-RING

93210-31MJ5-00

Unavailable

27

PULLER, CHAIN 2

57H-25389-01-00

Unavailable

28

BOLT

90101-08060-00

Unavailable

29

. NUT

95380-08700-00

Unavailable

30

AXLE, WHEEL

23X-25381-00-00

Unavailable

31

WASHER, PLATE (90201-210G3)

90209-21243-00

Unavailable

32

WASHER, PLATE (90201-180G2)

90209-18244-00

Unavailable

33

NUT, SELF-LOCKING

90185-18009-00

Unavailable

34

CHAIN

9Y581-92111-00

Unavailable

35

. JOINT, CHAIN (1LX) (DID 520DS6)

94680-89001-00

Unavailable

36

BAR, TENSION

23X-25371-00-00

Unavailable

37

BEARING,SPECIAL

23X-253N4-09-00

Unavailable

38

OIL SEAL

93112-19006-00

Unavailable

39

BOLT, WITH HOLE

90102-08062-00

Unavailable

40

BOLT

90109-08370-00

Unavailable

41

NUT, SELF-LOCKING

90185-08169-00

Unavailable

42

.. WASHER, PLATE

92990-08600-00

Unavailable

43

PIN, COTTER

91490-20025-00

Unavailable

44

COLLAR

90387-083F0-00

Unavailable

45

O-RING (648)

93210-14167-00

Unavailable

46

NUT, SLOTTED

95307-08900-00

Unavailable

47

SPRING, TORSION

90508-29596-00

Unavailable

48

WASHER, PLATE (4W3)

90201-086A3-00

Unavailable
