Description

Price

1

RADIATOR ASSY 2

1LX-1240A-01-00

Unavailable

2

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$14.99

3

CLIP

90467-090A2-00

$4.41

4

RADIATOR ASSY 2

3XP-12461-00-00

Unavailable

5

CAP, RADIATOR

4FL-12462-00-00

$62.99

6

PIPE 1

1LX-12481-00-00

Unavailable

7

PIPE 2

1LX-12482-00-00

Unavailable

8

PIPE 3

1LX-12483-01-00

Unavailable

9

PIPE 5

1LX-12485-00-00

Unavailable

10

PIPE 6

1LX-12476-00-00

Unavailable

11

PIPE 7

1LX-12477-00-00

Unavailable

12

PIPE 8

1LX-1248A-00-00

Unavailable

13

HOSE CLAMP ASSY(3GM)

90450-38040-00

$17.99

14

CLAMP, HOSE

90460-22252-00

Unavailable

15

BAND (MADE IN CANADA)

90460-15227-00

$18.99

16

GROMMET(663)

90480-15064-00

Unavailable

17

COLLAR(2UJ)

90387-061V1-00

Unavailable

18

BOLT, HEXAGON

97017-06030-00

Unavailable

19

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

20

WASHER, PLATE (583 FUEL TANK)

90201-06570-00

Unavailable

21

JOINT 1

24X-12469-00-00

Unavailable

22

GROMMET (4L0)

90480-18276-00

Unavailable

23

COLLAR (90387-066J9)

90387-064W1-00

Unavailable

24

BOLT, HEXAGON

97017-06020-00

Unavailable

25

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

26

WASHER, PLATE (583 FUEL TANK)

90201-06570-00

Unavailable

27

JOINT 1

24Y-12469-00-00

Unavailable

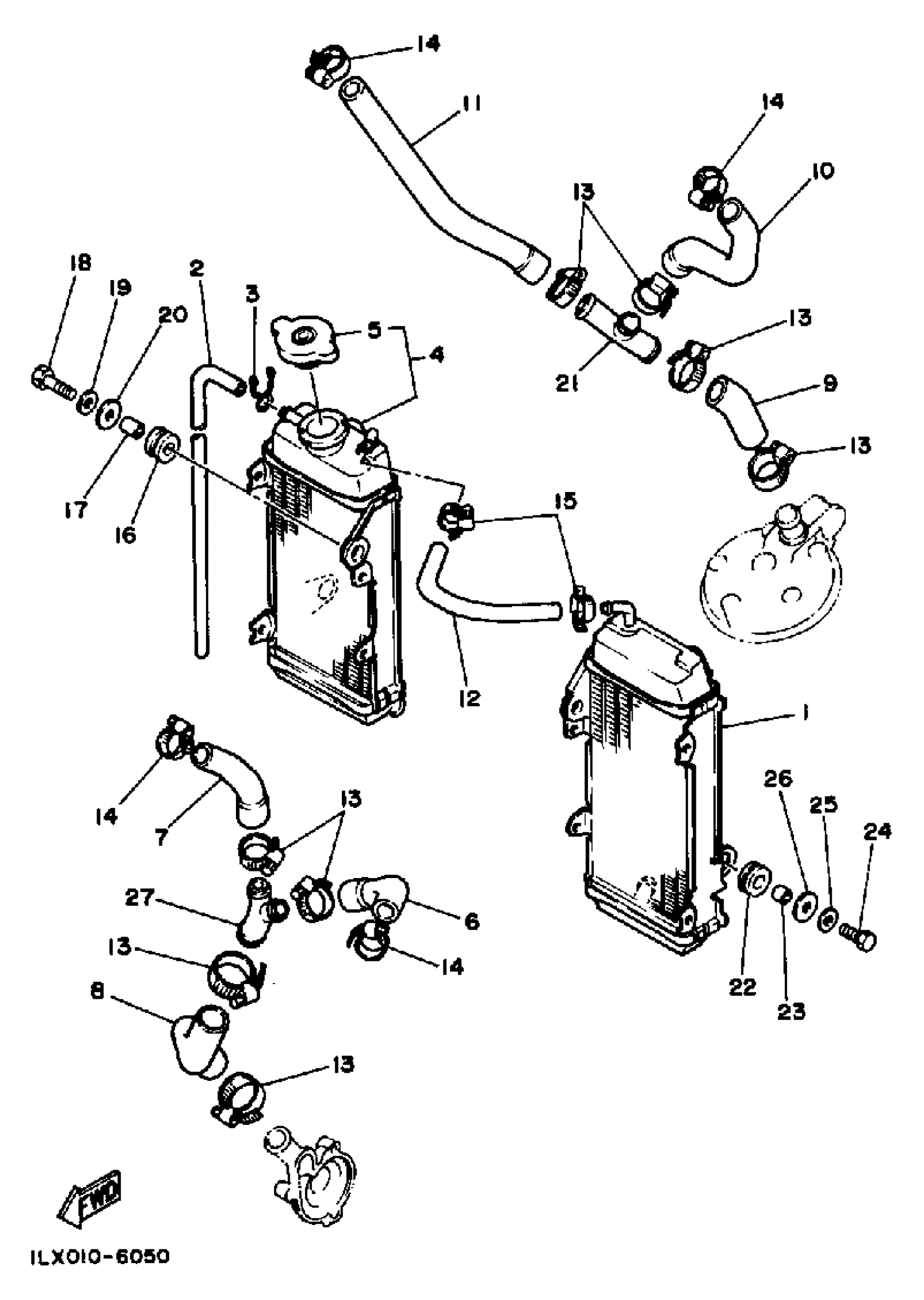

Yamaha YZ125S (YZ125) 1986 RADIATOR HOSE Diagram

RADIATOR ASSY 2

TUBE, FLEXIBLE VINYL(8AK)

CLIP

RADIATOR ASSY 2

CAP, RADIATOR

PIPE 1

PIPE 2

PIPE 3

PIPE 5

PIPE 6

PIPE 7

PIPE 8

HOSE CLAMP ASSY(3GM)

CLAMP, HOSE

BAND (MADE IN CANADA)

GROMMET(663)

COLLAR(2UJ)

BOLT, HEXAGON

WASHER, PLATE (4H7)

WASHER, PLATE (583 FUEL TANK)

JOINT 1

GROMMET (4L0)

COLLAR (90387-066J9)

BOLT, HEXAGON

WASHER, PLATE (4H7)

WASHER, PLATE (583 FUEL TANK)

JOINT 1
