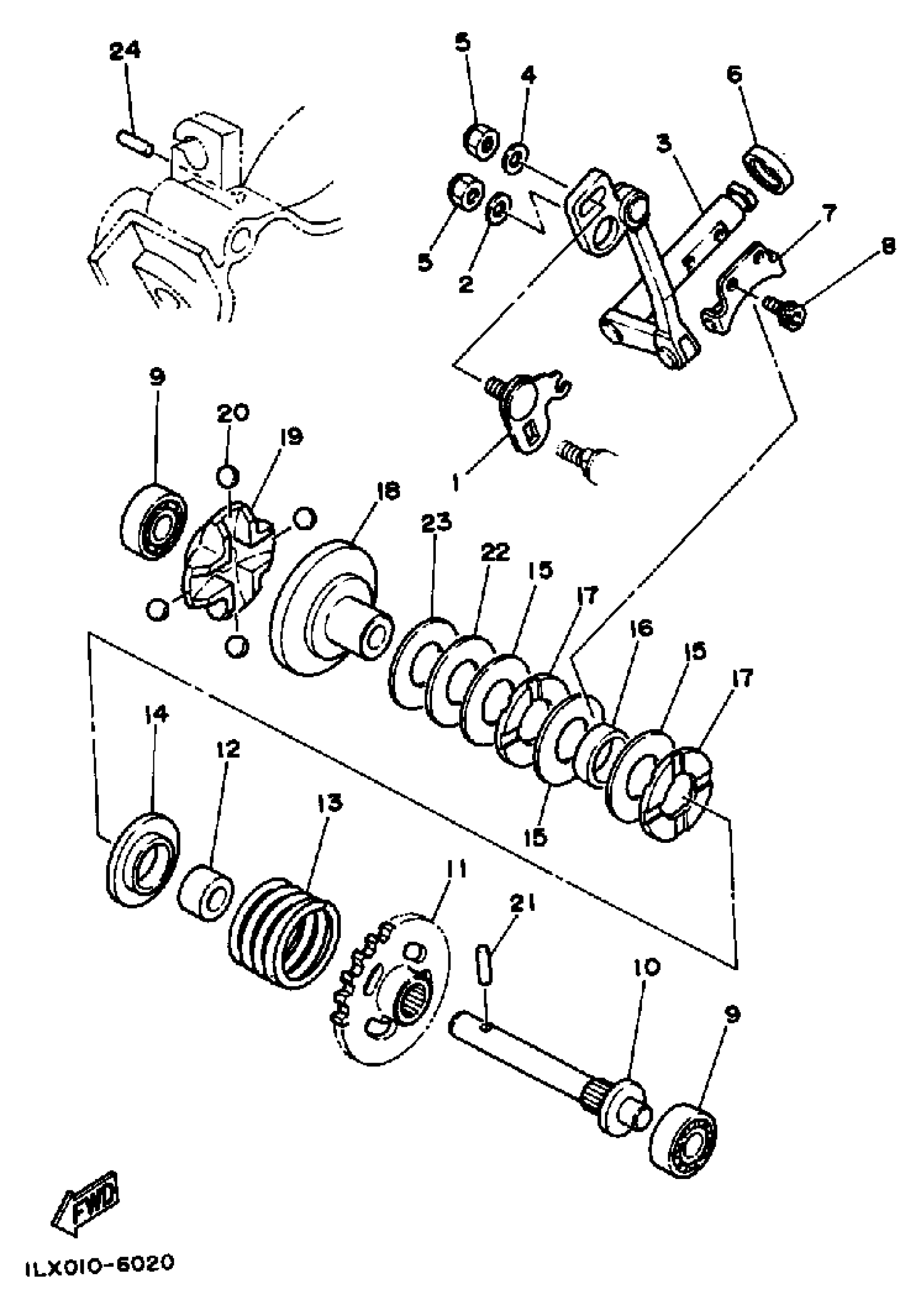

Yamaha YZ125S (YZ125) 1986 GOVERNOR Diagram

#

Description
Price

1

LEVER

1LX-11931-00-00

Unavailable

2

WASHER, PLATE(39X)

90201-057H5-00

$4.29

3

PUSH ROD ASSEMBLY

1LX-11990-00-00

Unavailable

4

WASHER, PLAIN (646)

92990-05600-00

$0.80

5

NUT, U

95617-05100-00

$9.49

6

OIL SEAL (8X12X3-371)

93104-08040-00

$14.99

7

FORK, GOVERNOR

5X4-11922-00-00

Unavailable

8

BOLT, SOCKET

91317-04006-00

$9.49

9

BEARING

93300-60801-00

$21.99

9

BEARING

93300-60801-00

$21.99

10

SHAFT, GOVERNOR

5X4-11921-02-00

$56.99

11

GEAR, GOVERNOR

24X-11953-01-00

Unavailable

12

SPACER (5X4)

90560-08213-00

$13.99

13

SPRING, COMPRESSION

90501-240E7-00

Unavailable

14

PLATE

5X4-11952-00-00

Unavailable

15

WASHER, PLATE (5G3)

90201-154E9-00

Unavailable

16

COLLAR (5X4)

90387-152F2-00

Unavailable

17

BUSH, SOLID

90380-15104-00

Unavailable

18

RETAINER, WEIGHT

5X5-11912-01-00

Unavailable

19

RETAINER

5X5-11911-01-00

Unavailable

20

BALL (5X4)

93521-64032-00

Unavailable

21

PIN, DOWEL (5X4)

93603-14179-00

Unavailable

22

WASHER, PLATE (5G3)

90201-154E9-00

Unavailable

22

WASHER, PLATE (5X5)

90201-154F5-00

Unavailable

23

WASHER, PLATE

90201-154F6-00

Unavailable

24

PIN, DOWEL

93603-13185-00

Unavailable
