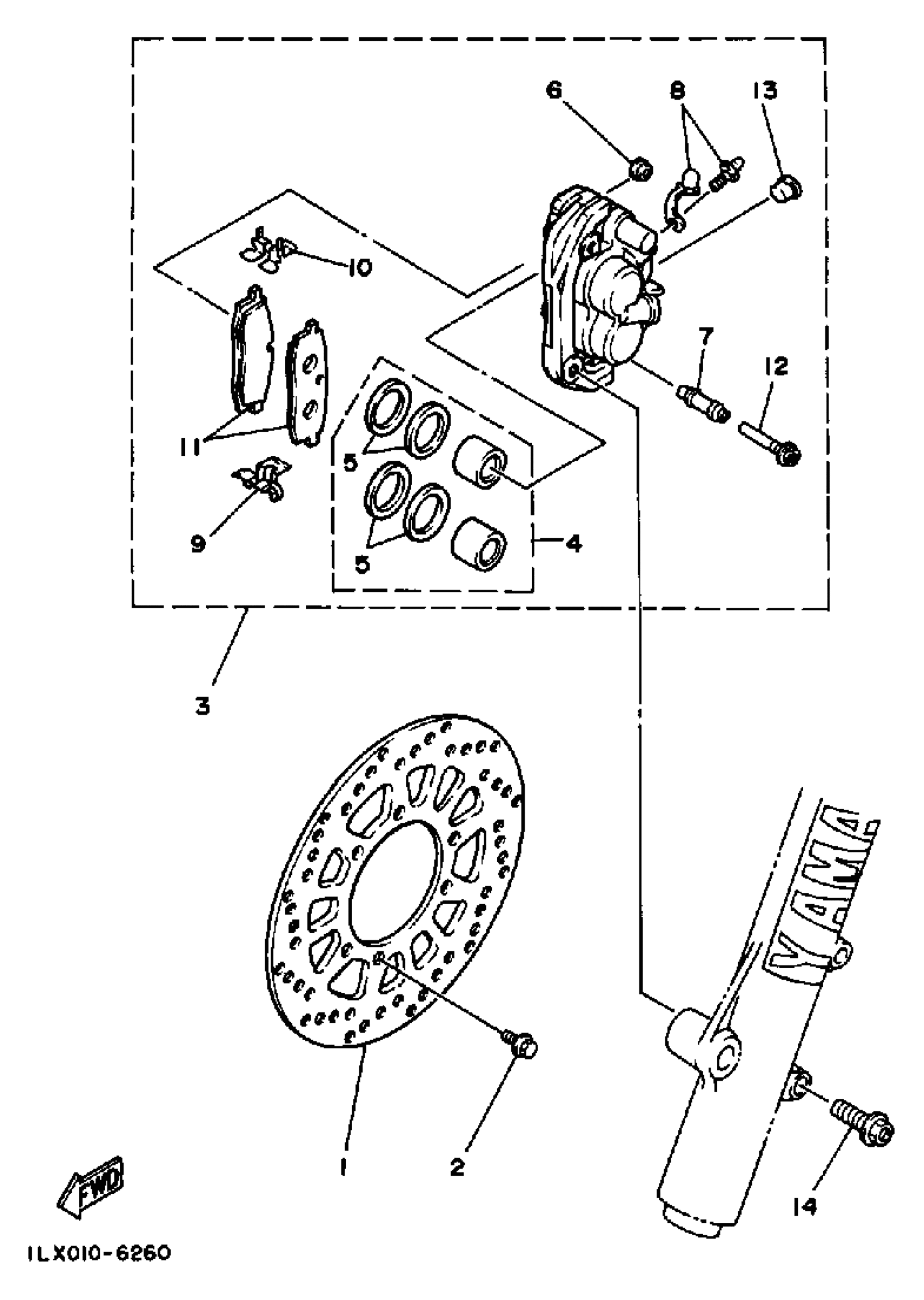

Yamaha YZ125S (YZ125) 1986 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

5XT-2582T-00-00

$77.71

2

BOLT

90109-06757-00

Unavailable

3

CALIPER ASSY

1LN-2580T-00-00

Unavailable

4

. PISTON ASSEMBLY, CALIPER

56A-W0057-00-00

Unavailable

5

CALIPER SEAL KIT

56A-W0047-00-00

$20.21

6

BOOT 2

5R2-25937-00-00

$30.21

7

BOOT 2

56A-25937-00-00

$19.67

8

BLEED SCREW KIT

15B-W0048-00-00

$16.89

9

SUPPORT, PAD

56A-25919-00-00

$29.63

10

SUPPORT, PAD

56A-25919-10-00

$26.34

11

BRAKE PAD KIT

1LN-W0045-01-00

$61.85

12

BOLT

56A-25926-00-00

$10.79

13

CAP, INDICATOR

34X-25845-00-00

$14.12

14

BOLT, FLANGE

95814-08045-00

$3.68
