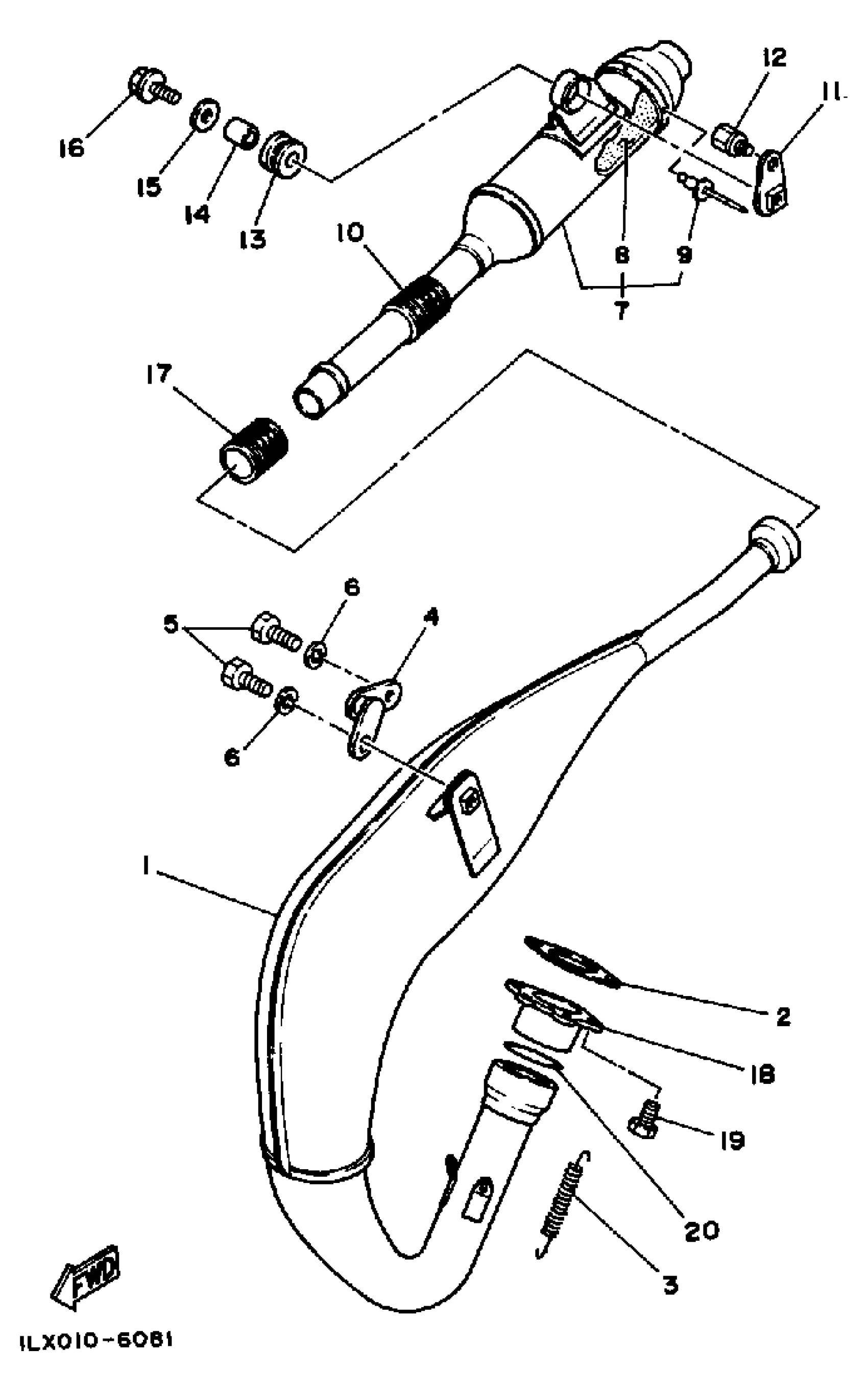

Yamaha YZ125S (YZ125) 1986 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L

1LX-14610-00-00

Unavailable

2

GASKET,EXST PIPE

1LX-14613-01-00

Unavailable

3

SPRING, TENSION (1W4)

90507-20030-00

$14.99

4

STAY, MUFFLER 1

24X-14771-00-00

Unavailable

5

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

6

WASHER, SPRING

92995-06100-00

Unavailable

7

SILENCER, EXHAUST

1LX-14753-00-00

Unavailable

8

. FIBER

39W-1469A-00-00

Unavailable

9

. RIVET, BLIND

90267-40115-00

Unavailable

10

GASKET, MUFFLER

1LX-14714-00-00

Unavailable

11

BRACKET

1LX-14744-00-00

Unavailable

12

BOLT

90109-08573-00

Unavailable

13

GROMMET

90480-22269-00

Unavailable

14

COLLAR

90387-081A3-00

Unavailable

15

WASHER, PLATE (5J0)

90201-085E6-00

$10.49

16

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

17

GASKET, MUFFLER

1LX-14714-00-00

Unavailable

18

FLANGE, EXST PIPE

2HG-14614-00-00

Unavailable

19

BOLT, HEXAGON

97017-08016-00

Unavailable

20

O-RING(1LX)

93210-42728-00

Unavailable
