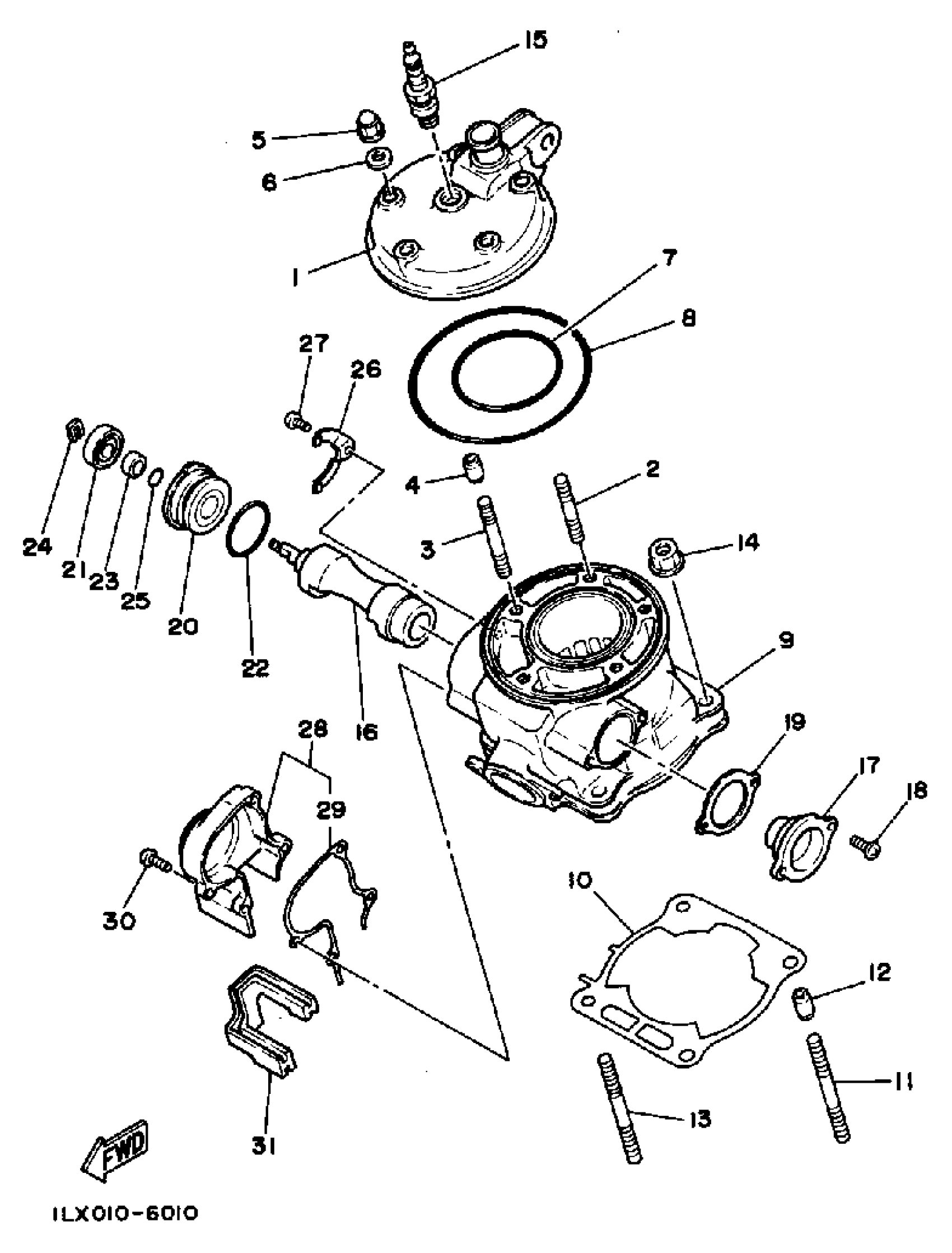

Yamaha YZ125S (YZ125) 1986 CYLINDER Diagram

#

Description
Price

1

HEAD, CYLINDER 1

2VN-11111-00-00

Unavailable

2

BOLT, STUD (5V6)

90116-08394-00

$11.49

3

BOLT, STUD (5X4)

90116-08392-00

$4.51

4

PIN, DOWEL(3VD)

99530-10114-00

$2.55

5

NUT, CROWN (4G0)

90176-08026-00

$14.99

6

WASHER, PLATE 3411117500

90201-08087-00

$3.71

7

O-RING(1LX)

93210-65721-00

$5.60

8

O-RING(1LX)

93211-07720-00

$12.49

9

CYLINDER 1

1LX-11311-00-00

Unavailable

10

GASKET, CYLINDER

1LX-11351-10-00

$8.99

11

BOLT, STUD (24X)

90116-08409-00

$4.19

12

PIN, DOWEL(3VD)

99530-10114-00

$2.55

13

BOLT, STUD (3R3)

90116-08318-00

$7.49

14

NUT(55X)

90179-08491-00

$8.49

15

B9EG NGK SPLUG 4PK

B9E-G0000-00-00

Unavailable

16

VALVE 1

1LX-1131A-01-00

Unavailable

17

HOLDER 1

39W-W1132-00-00

Unavailable

18

SCREW, PAN

98517-05012-00

Unavailable

19

GASKET, HOLDER

5X4-1131N-10-00

Unavailable

20

HOLDER 2 ASSY

5X4-Y113F-10-00

Unavailable

21

OIL SEAL (5X4)

93104-16074-00

Unavailable

22

O-RING(2HG)

93210-270A8-00

Unavailable

23

COLLAR(3JE)

90387-102W0-00

Unavailable

24

BOSS, COLLAR

5X5-11937-00-00

Unavailable

25

O-RING (341)

93210-09192-00

Unavailable

26

PLATE, THRUST 1

1LX-11915-00-00

Unavailable

27

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

28

HOUSING 2

1LX-11992-00-00

Unavailable

29

GASKET,YPVS HOUSIN

1LX-11993-01-00

Unavailable

30

SCREW, PAN HEAD

90157-05M19-00

Unavailable

31

SEAL, HOUSING

1LX-11995-01-00

Unavailable
