CRANKSHAFT PISTON

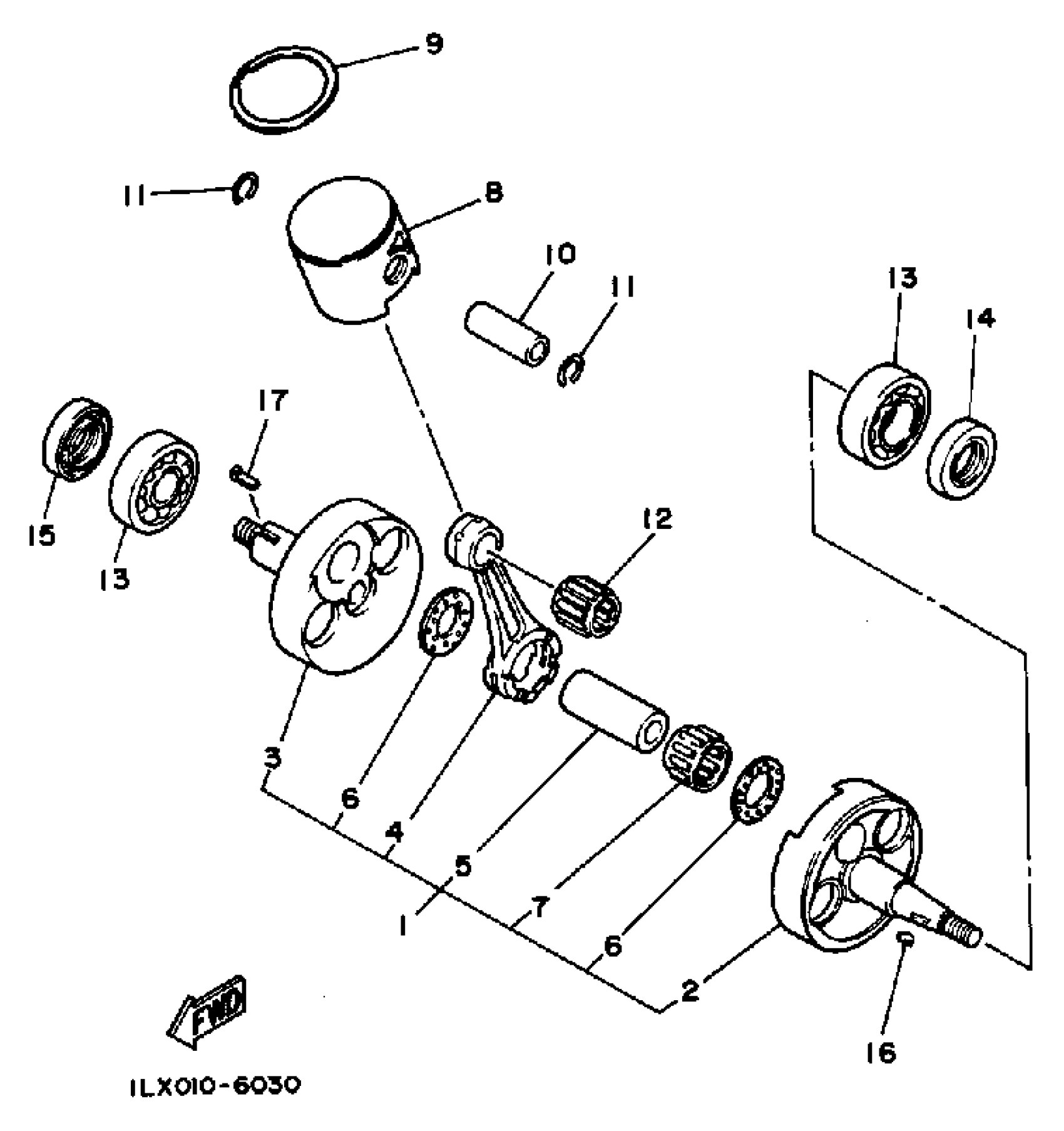

Yamaha YZ125S (YZ125) 1986 CRANKSHAFT PISTON Diagram
#
1
CRANKSHAFT ASSEMBLY
2HG-11400-00-00
Unavailable
2
. CRANK 1
2HG-11412-00-00
Unavailable
3
. CRANK 2
2HG-11422-00-00
Unavailable
4
ROD, CONNECTING
4PE-11651-02-00
Unavailable
4
ROD, CONNECTING
4PE-11651-02-00
Unavailable
6
WASHER (29L)
90209-22248-00
Unavailable
6
WASHER (29L)
90209-22248-00
Unavailable
7
PISTON KIT STD (STD)
1LX-11630-00-00
Unavailable
8
PISTON STD (STD)
1LX-11631-00-94
Unavailable
8
PISTON STD (STD)
1LX-11631-00-94
Unavailable
8
PISTON (0.25MM O/S)
1LX-11635-00-00
Unavailable
8
PISTON (0.25MM O/S)
1LX-11635-00-00
Unavailable
8
PISTON 2 O/S 0.50 (0.50MM O/S)
1LX-11636-00-00
Unavailable
8
PISTON 2 O/S 0.50 (0.50MM O/S)
1LX-11636-00-00
Unavailable
8
PISTON 3 O/S 0.75 (0.75MM O/S)
1LX-11637-00-00
Unavailable
8
PISTON 3 O/S 0.75 (0.75MM O/S)
1LX-11637-00-00
Unavailable
9
RING, PISTON
5X4-11611-02-00
Unavailable
9
RING, PISTON
5X4-11611-02-00
Unavailable
9
RING, PISTON 1ST
5X4-11611-11-00
Unavailable
9
RING, PISTON 1ST
5X4-11611-11-00
Unavailable
9
RING, PISTON 2ND
5X4-11611-21-00
Unavailable
9
RING, PISTON 2ND
5X4-11611-21-00
Unavailable
9
RING, PISTON 3RD
5X4-11611-31-00
Unavailable
9
RING, PISTON 3RD
5X4-11611-31-00
Unavailable
10
PIN, PISTON
137-11633-10-00
Unavailable
10
PIN, PISTON
137-11633-10-00
Unavailable
10
PIN, PISTON
137-11633-10-00
Unavailable
11
PISTON KIT 1ST O/S (1ST O/S)
1LX-11630-10-00
Unavailable
11
PISTON KIT 2ND O/S (2ND O/S)
1LX-11630-20-00
Unavailable
11
PISTON KIT 3RD O/S (3RD O/S)
1LX-11630-30-00
Unavailable
11
CIRCLIP(1AR)
93450-17129-00
Unavailable
11
CIRCLIP(1AR)
93450-17129-00
Unavailable
11
CIRCLIP(1AR)
93450-17129-00
Unavailable
13
BEARING(1LX)
93306-37204-00
Unavailable
14
OIL SEAL(1LX)
93102-22363-00
Unavailable
15
OIL SEAL(3KX)
93103-32171-00
Unavailable
16
KEY WOODRUFF 146115450000
90280-03017-00
Unavailable
17
CONNECTING ROD ASSEMBLY
2HG-11650-00-00
Unavailable
17
KEY, STRAIGHT
90282-05038-00
Unavailable
