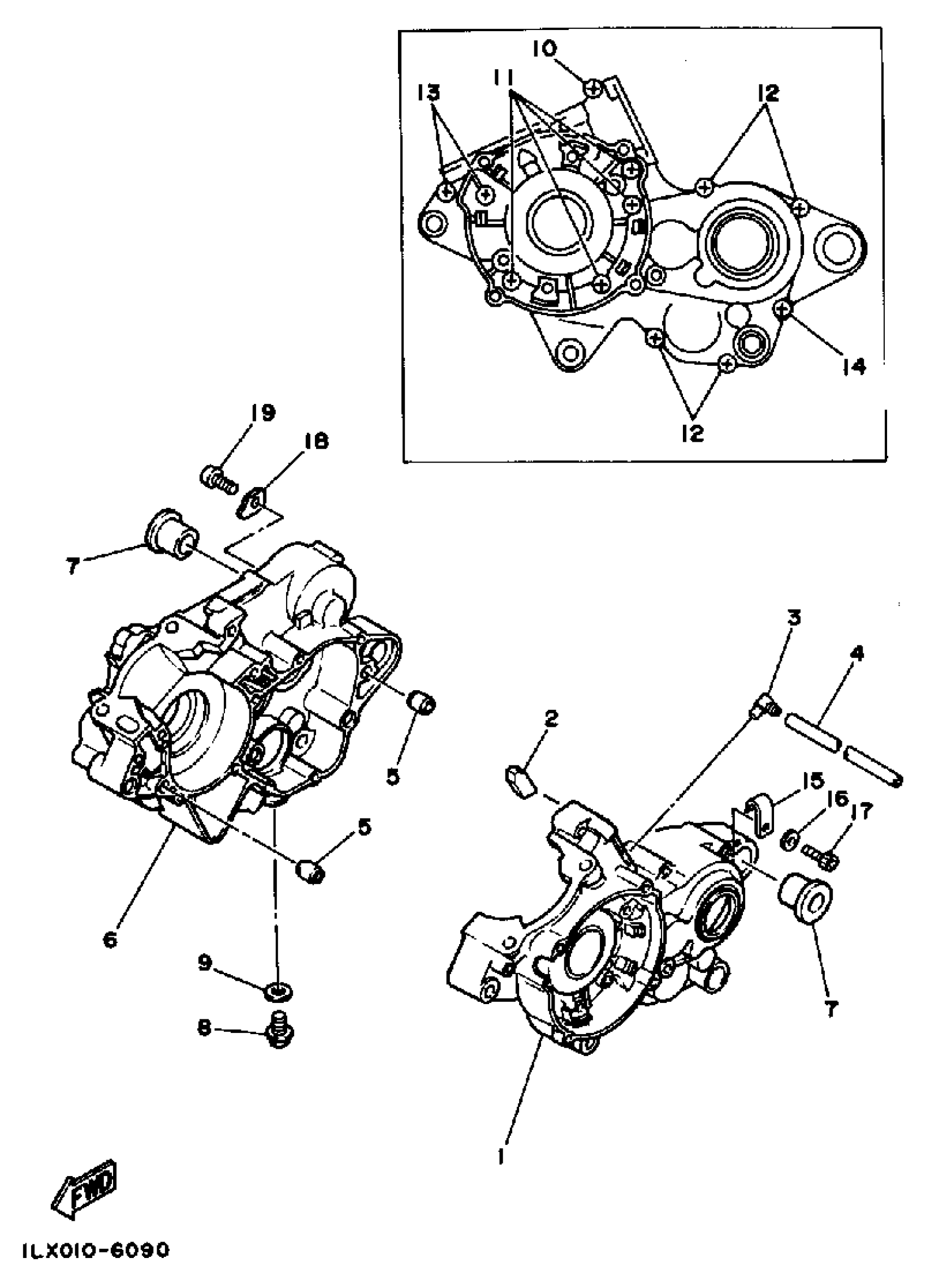

Yamaha YZ125S (YZ125) 1986 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

99999-01806-00

Unavailable

2

PLUG, BLIND 1

1LX-15167-00-00

Unavailable

3

CONNECTOR, SUCTION PIPE

353-13115-01-00

$6.99

4

HOSE (L340)

90445-08684-00

$4.29

5

PIN, DOWEL

99530-12016-00

$4.89

6

CRANKCASE 2

1LX-15121-02-00

Unavailable

7

COLLAR

90387-16781-00

Unavailable

8

PLUG, STRAIGHT SCREW (22F)

90340-12097-00

$3.08

9

GASKET (3JD1)

90430-12207-00

$7.99

10

BOLT,SOCKET

91317-06035-00

Unavailable

11

BOLT,SOCKET

91317-06045-00

$4.99

12

BOLT,SOCKET

91317-06055-00

$4.19

13

BOLT,SOCKET

91317-06060-00

$3.76

14

BOLT, SOCKET

91317-06065-00

$3.76

15

CLAMP

90465-08028-00

Unavailable

16

WASHER

90209-06290-00

Unavailable

17

BOLT, SOCKET

91317-05012-00

Unavailable

18

HOLDER

3R3-15128-01-00

Unavailable

19

SCREW, PAN

98507-08010-00

Unavailable
