CARBURETOR

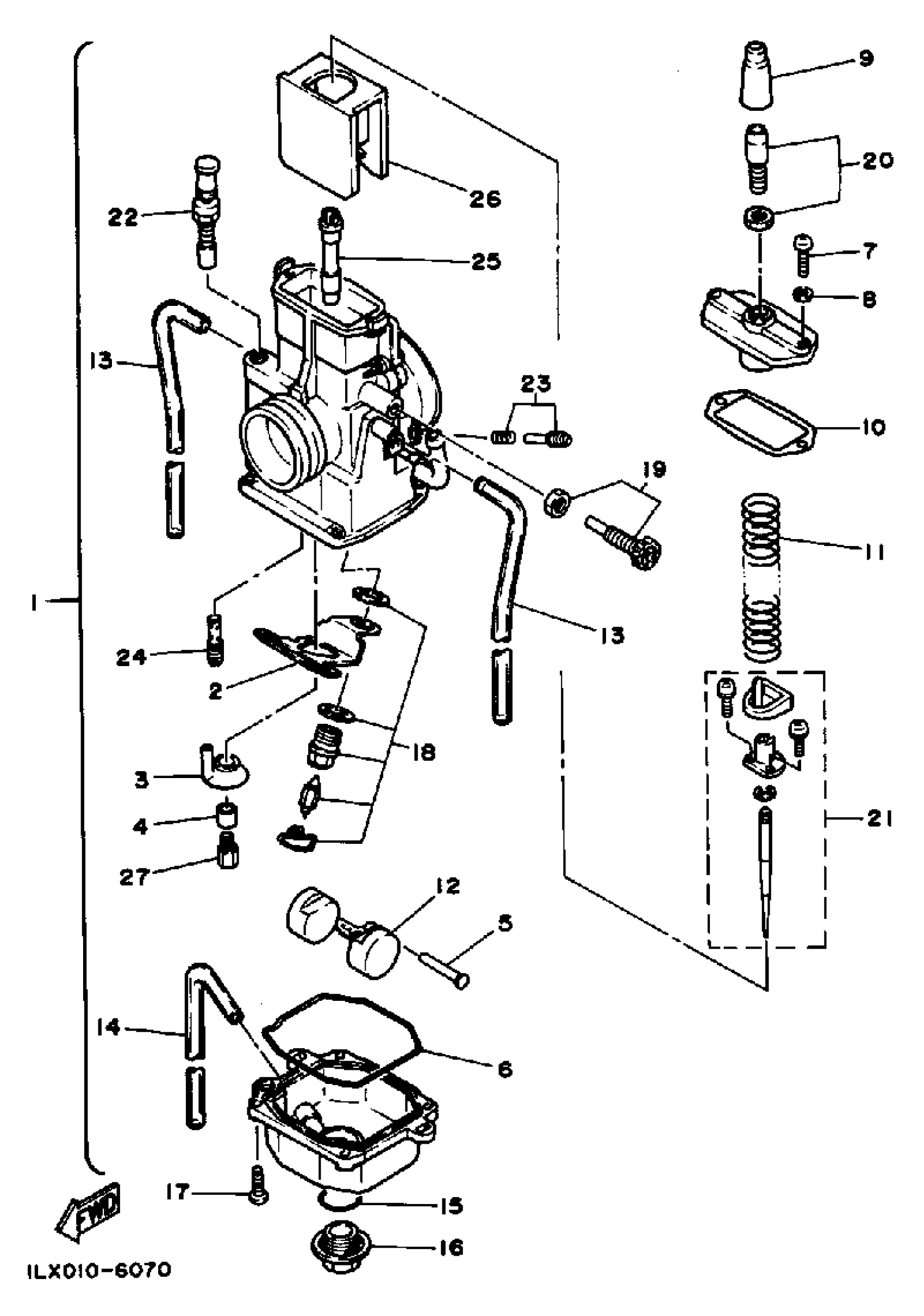

Yamaha YZ125S (YZ125) 1986 CARBURETOR Diagram
#
1
CARBURETOR ASSEMBLY 1
1LX-14101-10-00
Unavailable
2
PLATE
(1LX-14146-00-00)
Unavailable
3
. WASHER, MAIN JET
1LX-14153-10-00
Unavailable
4
. SETTER, NEEDLE JET
509-14145-00-00
Unavailable
6
. O-RING
1LX-14147-00-00
Unavailable
9
CAP
307-14169-10-00
Unavailable
10
. GASKET
1LX-14198-00-00
Unavailable
11
SPRING,THRTL VALVE
1LK-14131-00-00
Unavailable
12
. FLOAT
1LX-14185-00-00
Unavailable
14
HOSE
88R-14987-00-00
Unavailable
16
PLUG, SCREW
500-14115-00-00
Unavailable
17
SCREW, PAN HEAD
98511-04012-00
Unavailable
18
NEEDLE VALVE SET
24X-14107-33-00
Unavailable
19
THROTTLE SCREW SET
40T-14103-00-00
Unavailable
20
. CABLE ADJUSTING SCREW ST
1LX-14106-00-00
Unavailable
21
. NEEDLE SET
1LX-1490J-00-00
Unavailable
22
. STARTER SET
24X-1410A-00-00
Unavailable
23
. AIR SCREW SET
1LX-14104-00-00
Unavailable
24
JET, PIL0T(# 35)
193-14142-35-00
Unavailable
24
. JET, PILOT #40
193-14142-40-A1
Unavailable
24
. JET, PILOT (#45)
193-14142-45-A1
Unavailable
25
. NOZZLE, MAIN P-6 (P-6)
1LX-14141-46-00
Unavailable
25
. NOZZLE, MAIN (P-8)
1LX-14141-48-00
Unavailable
25
. NOZZLE, MAIN Q-OK (Q-0)
1LX-14141-50-00
Unavailable
26
. VALVE, THROTTLE 35 (35)
1LX-14112-35-00
Unavailable
26
. VALVE THROTTLE 1 (40)
1LX-14112-40-00
Unavailable
26
VALVE, THROTTLE 4.5
(1LX-14112-45-00)
Unavailable
27
JET, MAIN #250
137-14143-50-A1
Unavailable
27
JET, MAIN #260
137-14143-52-00
Unavailable
27
JET, MAIN #270
137-14143-54-A1
Unavailable
27
JET, MAIN #280
137-14143-56-A0
Unavailable
27
JET, MAIN #290
137-14143-58-A1
Unavailable
