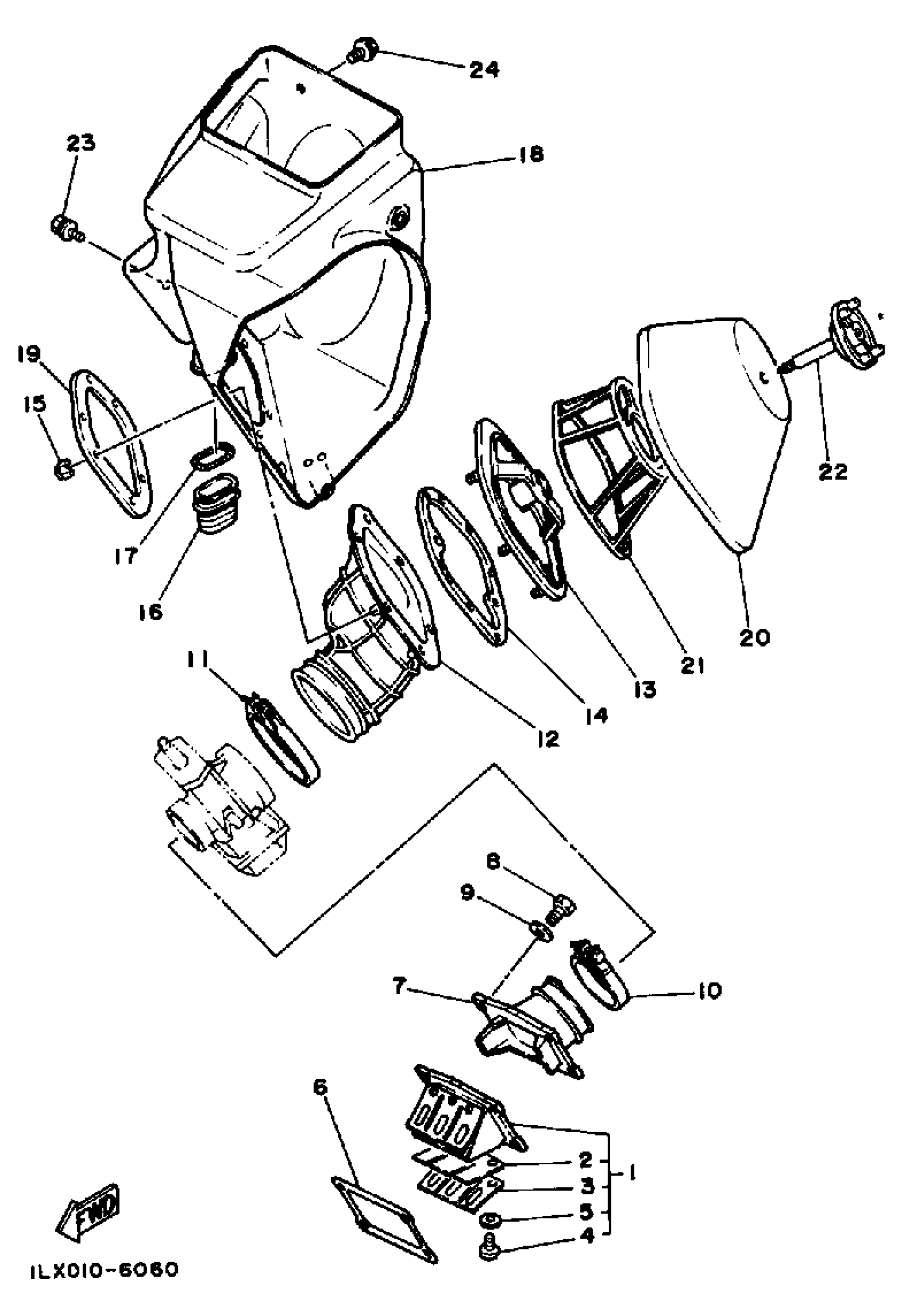

Yamaha YZ125S (YZ125) 1986 AIR CLEANER Diagram

#

Description
Price

1

REED VALVE ASSEMBLY

1LX-13610-01-00

Unavailable

2

REED, VALVE

55Y-13613-00-00

Unavailable

3

. STOPPER, REED VALVE

55Y-13616-00-00

Unavailable

4

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

5

. UNAVAILABLE IN PRICE BOOK

98501-03100-00

Unavailable

6

GASKET, VALVE SEAT

4TP-13621-00-00

$7.99

7

JOINT, CARBURETOR

1LX-13565-00-00

Unavailable

8

BOLT, HEXAGON

97017-06020-00

$4.06

9

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

10

CLAMP, HOSE

90460-51109-00

Unavailable

11

CLAMP, HOSE

90460-68231-00

Unavailable

12

JOINT, AIR CLNR 1

1LX-14453-00-00

Unavailable

13

HOLDER, GUIDE

1LX-14459-00-00

Unavailable

14

SEAL

1LX-14462-00-00

Unavailable

15

NUT, U

95617-05100-00

$9.49

16

SEAL

39K-14457-00-00

Unavailable

17

SPRING, COMPRESSION

90504-03033-00

Unavailable

18

AIR CLEANER CASE

1LX-W1441-01-00

Unavailable

19

PLATE

(1LX-14477-00-00)

Unavailable

20

ELEMENT, AIR CLNR

1LX-14451-00-00

Unavailable

21

GUIDE, ELEMENT

1LX-14458-00-00

Unavailable

22

PLATE, ELEMENT FITTING

56A-14468-00-00

Unavailable

23

BOLT, FLANGE

95817-06012-00

Unavailable

24

BOLT, WITH WASHER

90119-06152-00

Unavailable
