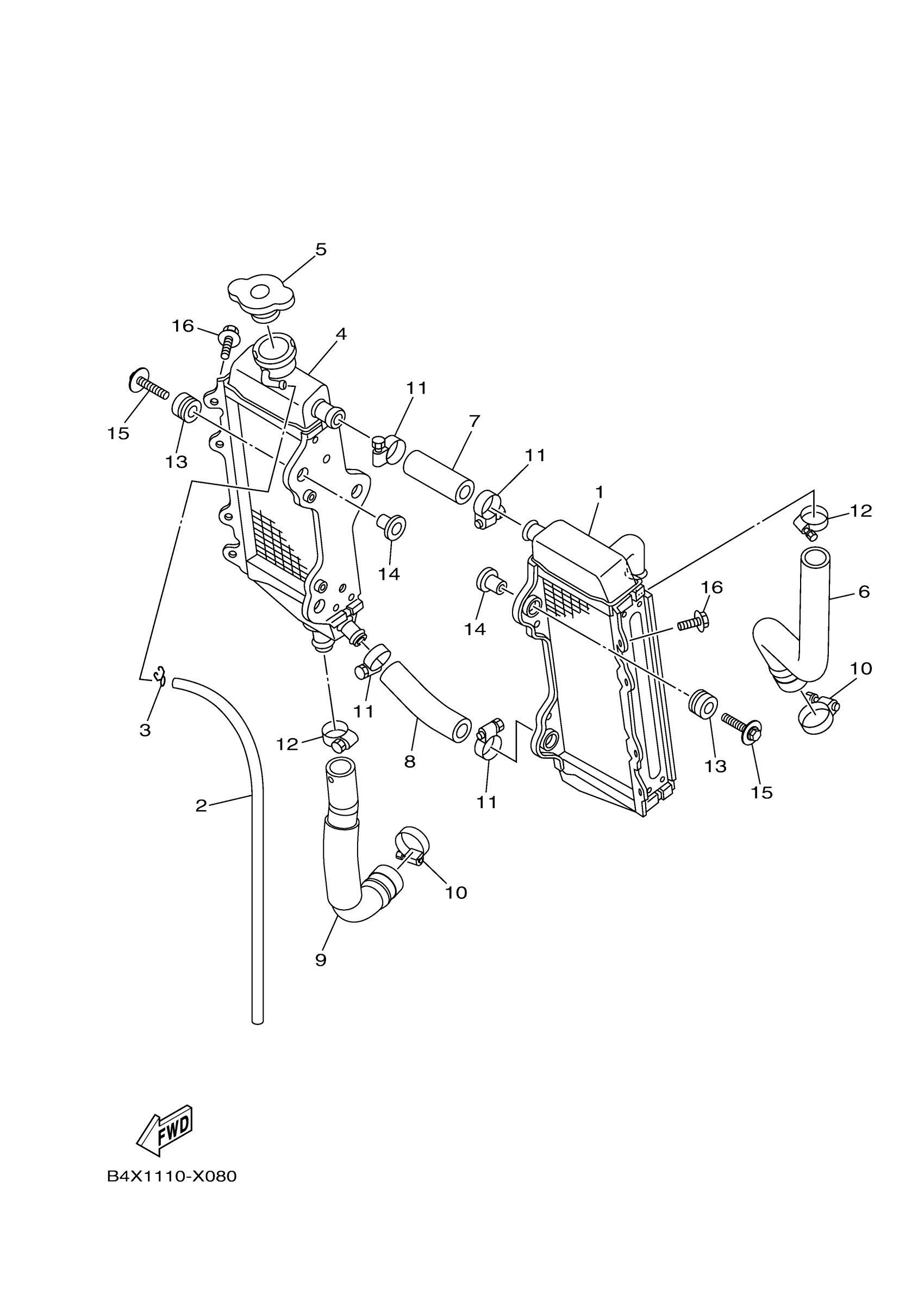

Yamaha YZ125RSE (YZ125 50TH) B4XM 2024 RADIATOR & HOSE Diagram

Description

Price

RADIATOR ASSY

1C3-1240A-00-00

$200.89

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$11.73

CLIP

90467-090A2-00

$2.47

RADIATOR COMP

1C3-12461-00-00

$200.89

CAP, RADIATOR

4FL-12462-00-00

$53.09

PIPE 1

1C3-12481-00-00

$15.20

PIPE 2

1C3-12482-00-00

$6.80

PIPE 3

1C3-12483-00-00

$4.95

PIPE 4

1C3-12484-00-00

$17.18

HOSE CLAMP ASSY

90450-28001-00

$11.70

HOSE CLAMP ASSY

90450-18M09-00

$9.82

HOSE CLAMP ASSY(64X)

90450-22M14-00

$12.87

GROMMET(3RB)

90480-15528-00

$6.22

COLLAR

90387-06065-00

$8.92

BOLT, WITH WASHER

90119-06262-00

$5.86

BOLT, WITH WASHER

90119-06239-00

Unavailable
