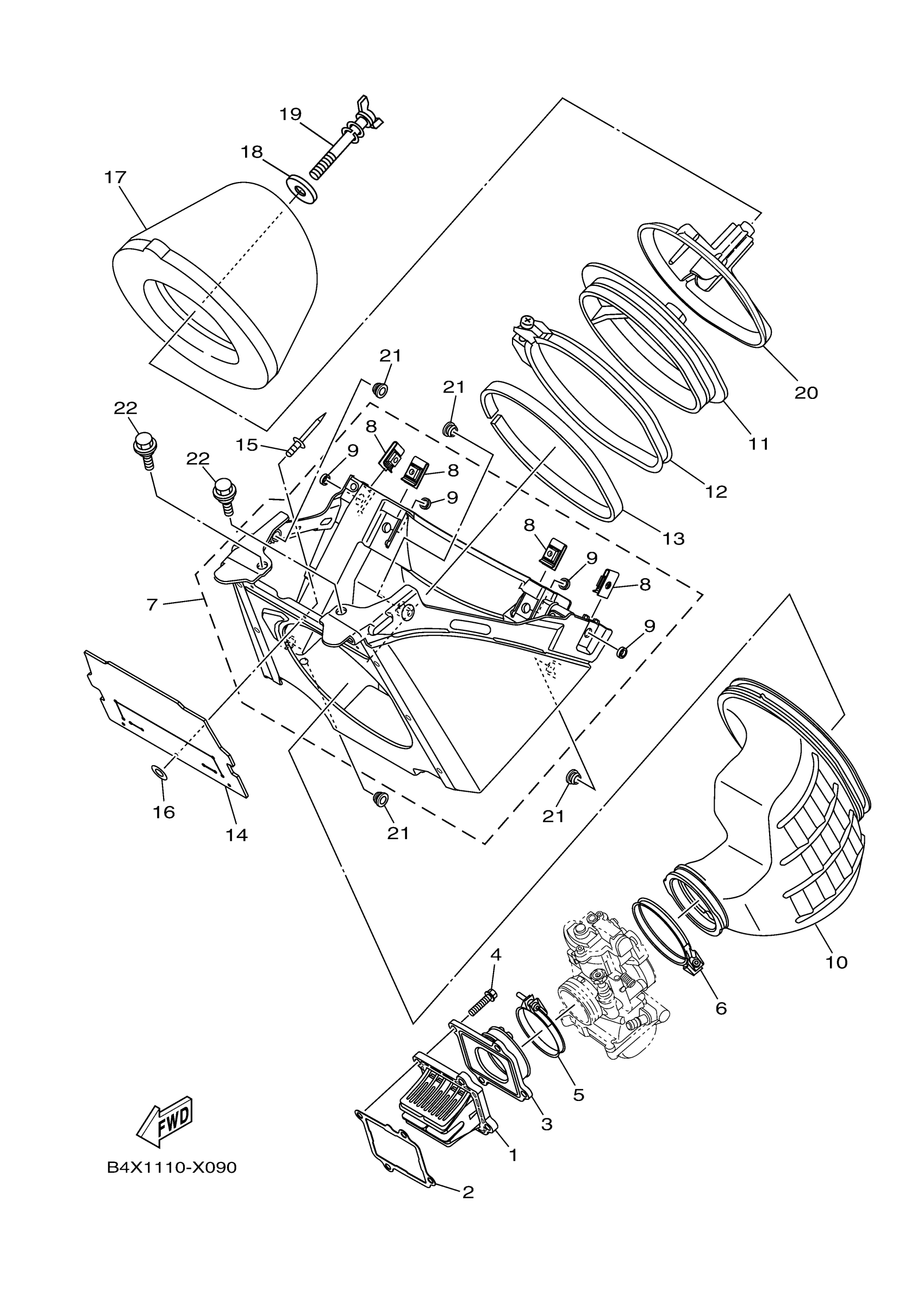

Yamaha YZ125RSE (YZ125 50TH) B4XM 2024 INTAKE Diagram

#

Description
Price

1

REED VALVE ASSY

B4X-13610-01-00

$312.80

2

GASKET, VALVE SEAT

B4X-13621-00-00

$4.68

3

JOINT, CARBURETOR

B4X-13565-00-00

$42.06

4

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.47

5

HOSE CLAMP ASSY

90450-54007-00

$11.71

6

HOSE CLAMP ASSY

90450-70002-00

$16.91

7

AIR CLEANER CASE A

BCR-14401-00-00

$84.46

8

NUT, SPRING

90183-060A7-00

$6.05

9

COLLAR

90387-06069-00

Unavailable

10

JOINT, AIR CLEANER 1

1C3-14453-11-00

$62.23

11

HOLDER, GUIDE

5NY-14459-00-00

$30.11

12

BAND

5NY-14455-20-00

$32.65

13

SPACER

5NY-14442-00-00

$19.06

14

COVER, AIR CLEANER

BCR-1449E-00-00

$21.95

15

RIVET, BLIND

90267-32196-00

$0.84

16

WASHER, PLATE 8077743700

90201-03313-00

Unavailable

17

ELEMENT, AIR CLEANER

4XM-14451-01-00

Unavailable

18

WASHER (4H7)

90209-06096-00

Unavailable

19

BOLT, WING

90122-06005-00

Unavailable

20

GUIDE

BCR-14458-00-00

Unavailable

21

GROMMET

90480-10M28-00

$2.80

22

BOLT

90109-06245-00

Unavailable
