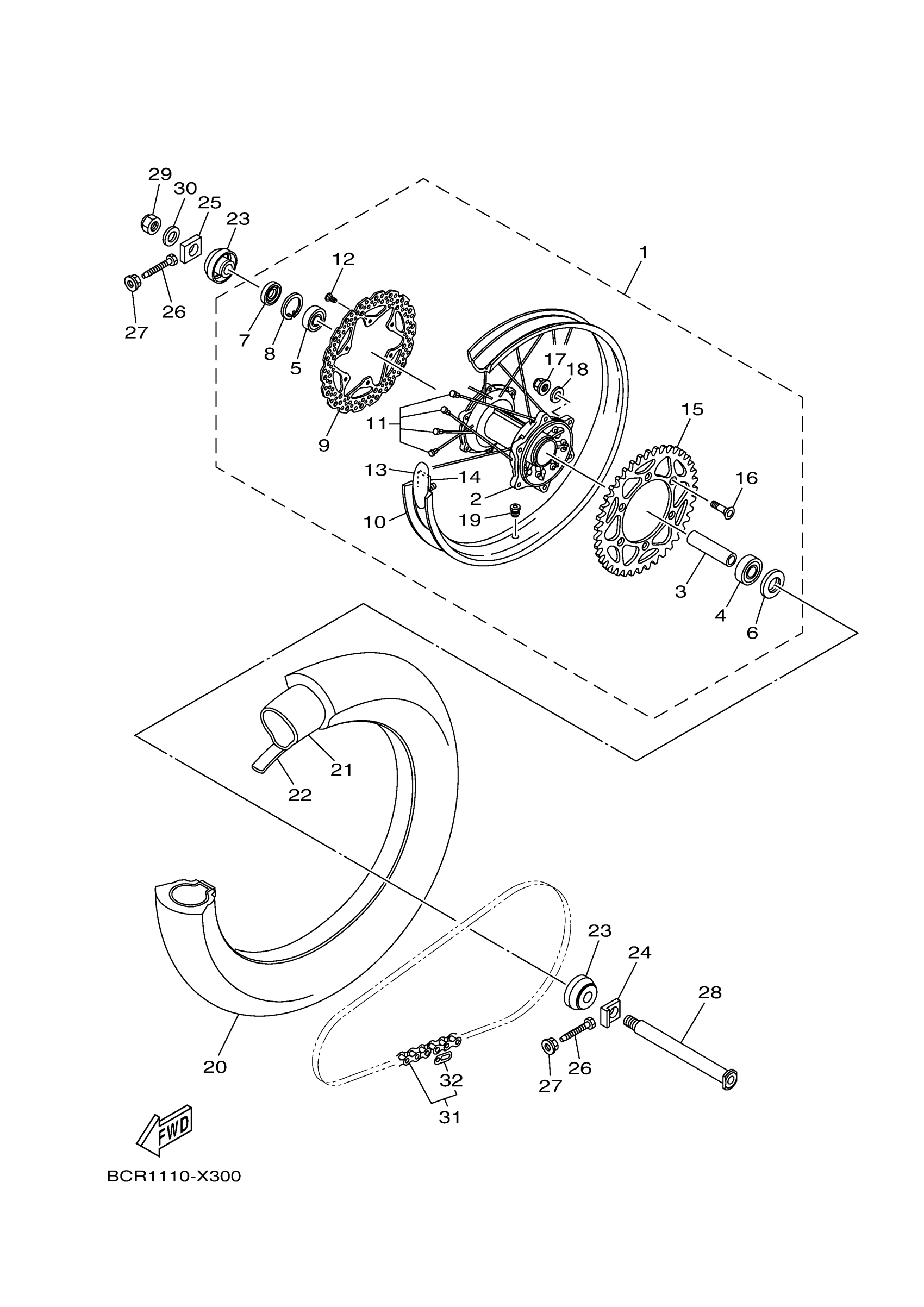

Yamaha YZ125RL (YZ125) B4XH 2024 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL SUB-ASSY

B4X-25302-00-00

$466.99

2

HUB, REAR

5ET-25311-00-00

$311.99

3

SPACER, BEARING

5ET-25317-00-00

$49.99

4

BEARING

93306-27212-00

$75.99

5

BEARING(85G)

93306-07202-00

$38.99

6

OIL SEAL

93106-30001-00

$12.49

7

OIL SEAL

93106-30045-00

$10.49

8

CIRCLIP

99009-45500-00

$2.17

9

DISK, REAR BRAKE 2

B2W-2582W-00-00

$135.99

10

RIM (1.85-19)

94418-19041-00

$353.99

11

SPOKE SET, REAR

5HD-25304-00-00

$225.99

12

SCREW, COUNTERSUNK

90151-06079-00

$3.23

13

SPACER, BEAD

4XM-25394-00-00

$46.99

14

DAMPER

4XM-25364-00-00

$7.99

15

SPROCKET, DRIVEN (47T)

17D-25447-50-00

$64.99

15

SPROCKET, DRIVEN (48T)

17D-25448-50-00

Unavailable

15

SPROCKET, DRIVEN (52T)

17D-25452-50-00

Unavailable

15

SPROCKET, DRIVEN (49T)

B2W-25449-00-00

Unavailable

15

SPROCKET, DRIVEN (50T)

B2W-25450-00-00

Unavailable

15

SPROCKET, DRIVEN (51T)

B2W-25451-00-00

Unavailable

16

BOLT(3RB)

90109-081G1-00

Unavailable

17

NUT, SELF-LOCKING

90185-08008-00

Unavailable

18

WASHER, PLATE

90201-08043-00

Unavailable

19

GROMMET (397)

90480-10068-00

Unavailable

20

TIRE (100/90-19 57M X20R)

94110-19041-00

Unavailable

21

TUBE

94208-19003-00

Unavailable

22

BAND, RIM

94327-19111-00

Unavailable

23

COLLAR ASSY

5TJ-2530S-81-00

Unavailable

24

PULLER, CHAIN 1

1C3-25388-H0-00

Unavailable

25

PULLER, CHAIN 2

1C3-25389-H0-00

Unavailable

26

BOLT

90101-08006-00

Unavailable

27

NUT

90179-08019-00

Unavailable

28

AXLE, WHEEL

1C3-25381-90-00

Unavailable

29

NUT, SELF-LOCKING

90185-20002-00

Unavailable

30

WASHER, PLATE

90201-20020-00

Unavailable

31

CHAIN

9Y582-60111-00

Unavailable

32

JOINT, CHAIN

94682-60001-00

Unavailable
