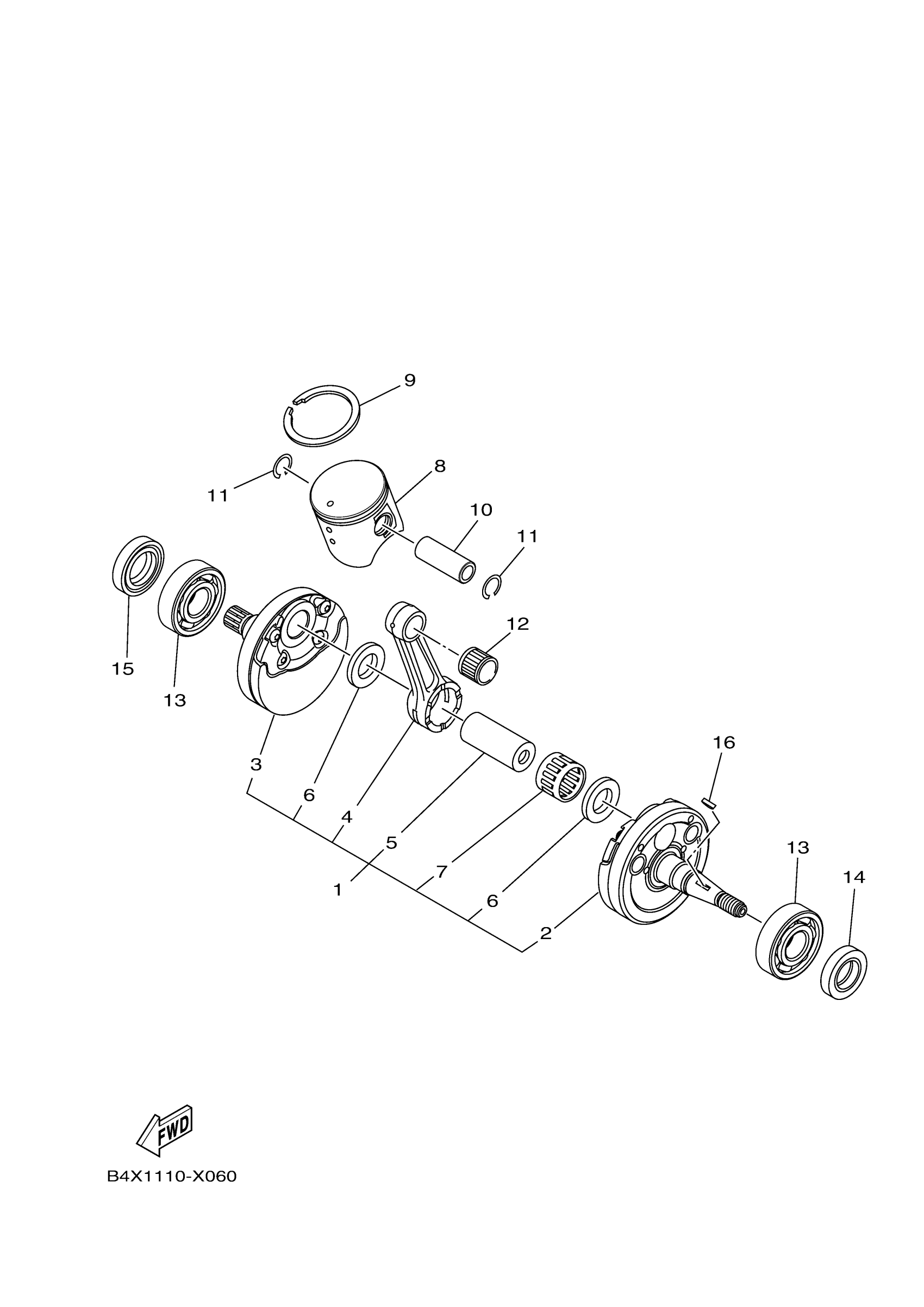

Yamaha YZ125RL (YZ125) B4XH 2024 CRANKSHAFT & PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

B4X-11400-00-00

$465.99

2

CRANKSHAFT

B4X-11410-00-00

Unavailable

3

CRANKSHAFT

B4X-11420-00-00

$198.99

4

ROD, CONNECTING

B4X-11651-00-00

$103.99

5

PIN, CRANK 1

B4X-11681-00-00

$69.99

6

WASHER(8AX)

90209-22326-00

$33.99

7

BEARING

93310-52238-00

$74.99

8

PISTON (STD)

B4X-11631-00-A0

$119.99

8

PISTON (STD)

B4X-11631-00-B0

$119.99

8

PISTON (STD)

B4X-11631-00-C0

Unavailable

8

PISTON (STD)

B4X-11631-00-D0

$119.99

9

RING, PISTON

5NY-11611-00-00

$25.99

10

PIN, PISTON

B4X-11633-00-00

$31.99

11

CIRCLIP (4G0)

93450-16068-00

$7.49

12

BEARING

93310-21510-00

$33.99

13

BEARING(1LX)

93306-37204-00

Unavailable

14

OIL SEAL

93102-20485-00

Unavailable

15

OIL SEAL(87A)

93102-22419-00

Unavailable

16

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable
