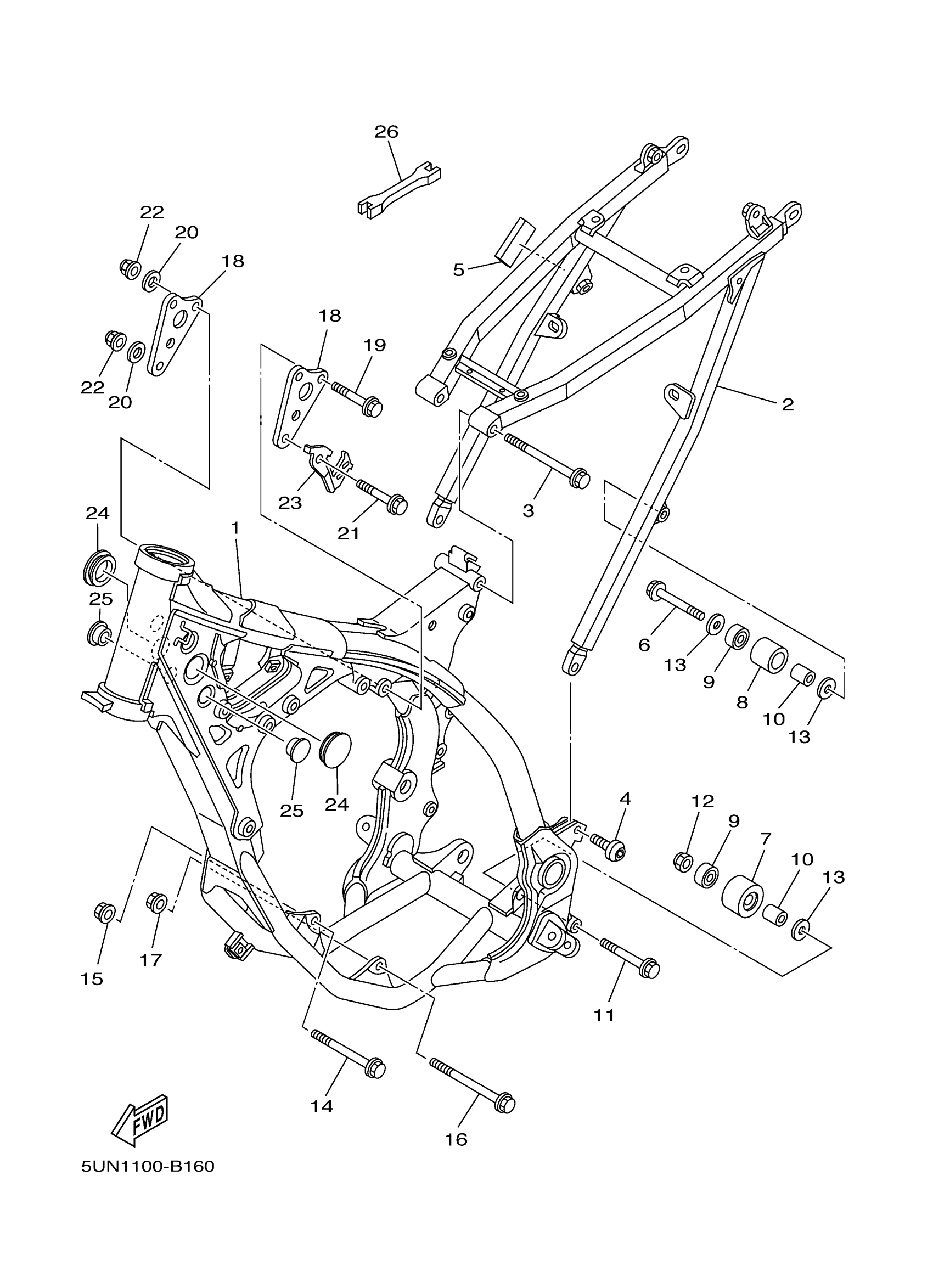

Yamaha YZ125R (YZ125) 5UN1 2003 FRAME Diagram

#

Description
Price

1

FRONT FRAME COMP.

5UN-21101-00-00

Unavailable

2

REAR FRAME COMP.

5XE-21190-00-00

Unavailable

3

BOLT, WASHER BASED (401)

90105-08120-00

$9.49

4

BOLT, HEXAGON SOCKET HEAD(53Y)

90110-08096-00

$10.49

5

DAMPER

5GJ-21717-00-00

$5.49

6

BOLT, FLANGE(4MY)

95027-08040-00

$8.49

7

TENSIONER

3JD-22178-20-00

$43.99

8

TENSIONER

4EW-22178-01-00

Unavailable

9

BEARING (3X3)

93300-60804-00

$12.49

10

COLLAR(1NL)

90387-086N4-00

$9.49

11

BOLT, SMALL FLANGE

95027-08055-00

$5.60

12

NUT

90185-08055-00

$9.49

13

WASHER, PLATE(3XP)

90201-086P8-00

$4.77

14

BOLT,FLANGE

95817-10090-00

$9.49

15

NUT, SELF-LOCKING

90185-10002-00

$8.49

16

BOLT, WASHER BASED(3RB)

90105-10733-00

Unavailable

17

NUT, SELF-LOCKING

90185-10002-00

$8.49

18

BRACKET, REAR UPPER 1

5NY-21425-00-00

Unavailable

19

BOLT, FLANGE

95817-08050-00

Unavailable

20

WASHER, PLATE (12X)

90201-087F0-00

Unavailable

21

BOLT, WASHER BASED

90105-08225-00

Unavailable

22

NUT, SELF-LOCKING

90185-08169-00

Unavailable

23

BRACKET, C.D.I. UNIT

5UN-21274-00-00

Unavailable

24

PLUG(8CJ)

90338-30256-00

Unavailable

25

PLUG (7Y6)

90338-21145-00

Unavailable

26

WRENCH, HEXAGON

5ET-28166-10-00

Unavailable
