Description

Price

1

FENDER, FRONT

5HD-21511-00-00

$42.99

2

COLLAR

3JD-21748-00-00

$5.49

3

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

4

EMBLEM YAMAHA

4ES-2153E-02-00

$14.49

5

REAR FENDER COMP.

5XE-21610-00-00

$61.99

6

NUT, REAR FENDER

5XE-21635-10-00

$13.49

7

BOLT, WITH WASHER(3RB)

90119-06192-00

$8.49

8

BOLT, SMALL FLANGE

95027-06030-00

$3.98

9

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

10

GUARD, FLAP

5UN-21642-10-00

$16.49

11

BOLT, WITH WASHER(4JX)

90119-06225-00

$9.49

12

COLLAR

90387-06009-00

$10.49

13

SCREW, TRUSS TAP.

97707-60016-00

$1.70

14

WASHER, PLATE

90201-06557-00

$3.30

15

EMBLEM YAMAHA

4ES-2153E-02-00

$14.49

16

EMBLEM 1

5NY-2163G-00-00

Unavailable

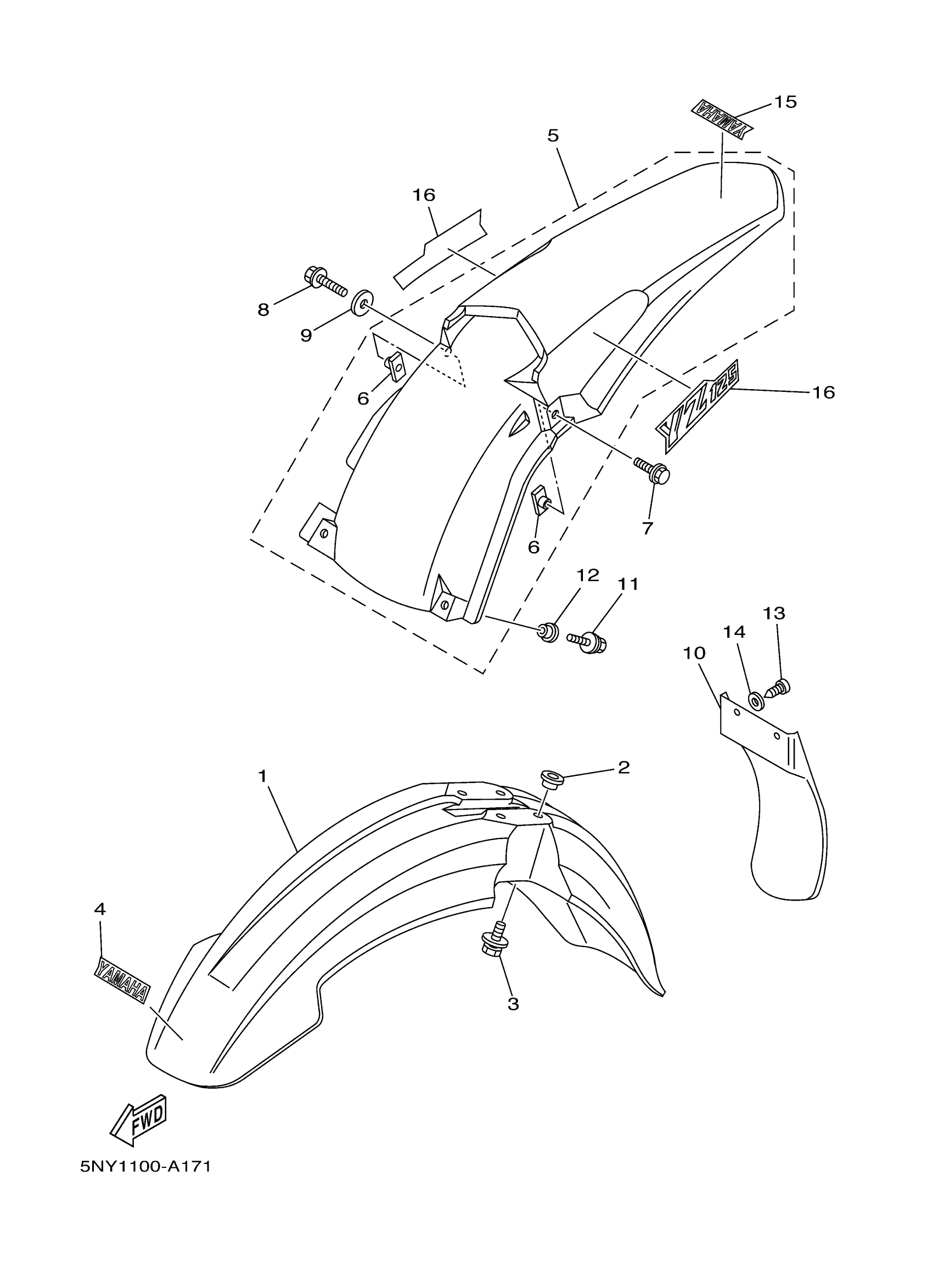

Yamaha YZ125R (YZ125) 5UN1 2003 FENDER Diagram

FENDER, FRONT

COLLAR

BOLT, WITH WASHER (30X)

EMBLEM YAMAHA

REAR FENDER COMP.

NUT, REAR FENDER

BOLT, WITH WASHER(3RB)

BOLT, SMALL FLANGE

WASHER, PLATE(36Y)

GUARD, FLAP

BOLT, WITH WASHER(4JX)

COLLAR

SCREW, TRUSS TAP.

WASHER, PLATE

EMBLEM YAMAHA

EMBLEM 1
