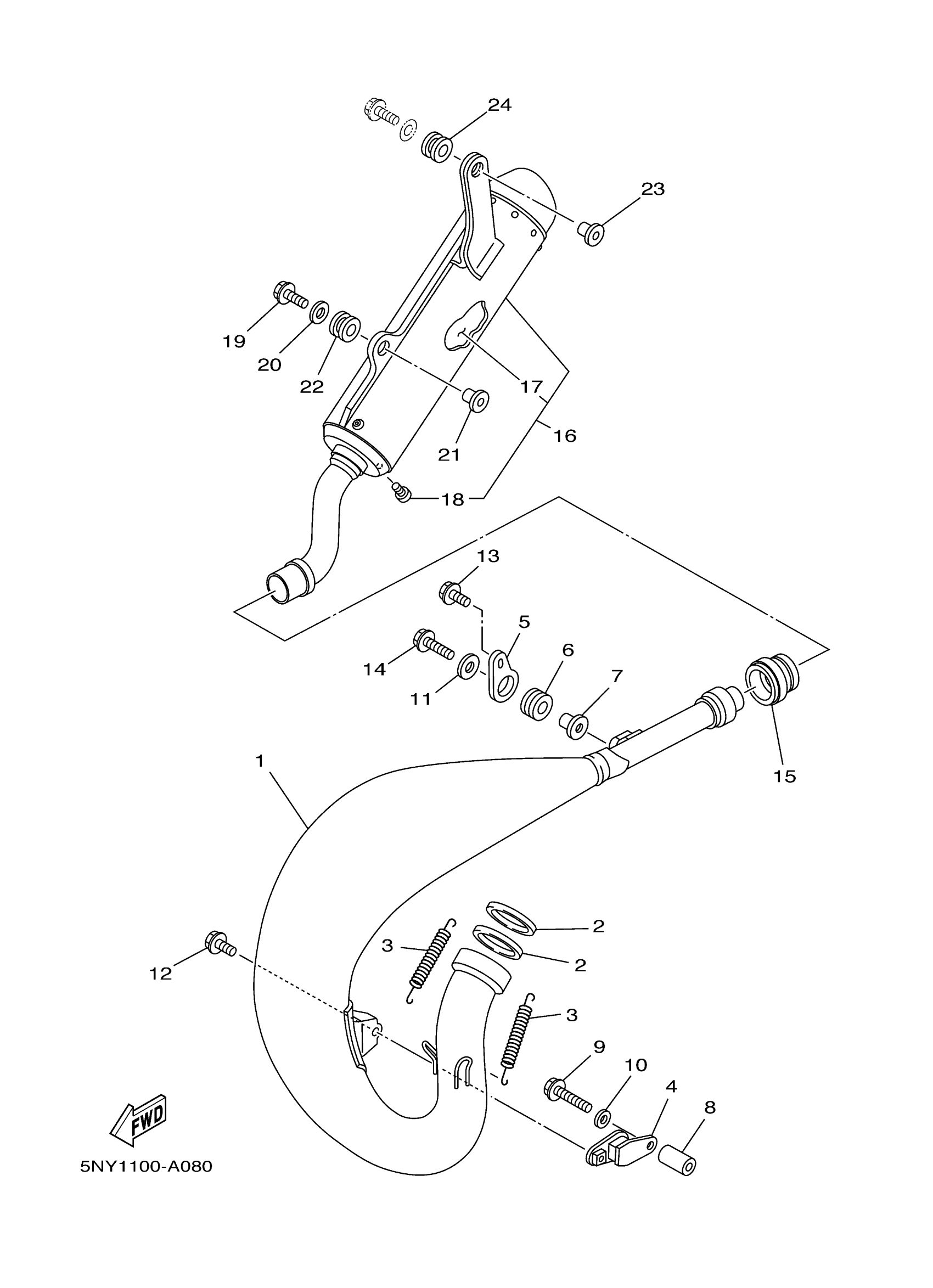

Yamaha YZ125R (YZ125) 5UN1 2003 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSY 1

5NY-14610-00-00

Unavailable

2

SEAL, EXHAUST

5MV-14642-00-00

$20.99

3

SPRING, TENSION(3FV)

90507-20052-00

$4.99

4

STAY, MUFFLER 1

565-14771-01-00

$18.49

5

STAY, MUFFLER 1

5CU-14771-01-00

$33.99

6

GROMMET(4EW)

90480-16561-00

$16.99

7

COLLAR(52E)

90387-063G3-00

$8.49

8

COLLAR(M63)

90387-060X8-00

Unavailable

9

BOLT, SMALL FLANGE

95027-06045-00

$3.28

10

WASHER, PLATE

90201-06020-00

$9.49

11

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

12

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

13

BOLT, WITH WASHER(3RB)

90119-06192-00

$8.49

14

BOLT, SMALL FLANGE

95027-06025-00

$4.16

15

JOINT, EXHAUST 1

4JY-14615-00-00

$61.99

16

SILENCER, EXHAUST

5NY-14753-00-00

Unavailable

17

FIBER

5NY-1469A-00-00

Unavailable

18

BOLT, BUTTON HEAD

92017-06010-00

Unavailable

19

BOLT, SMALL FLANGE

95027-06025-00

$4.16

20

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

21

COLLAR(52E)

90387-063G3-00

$8.49

22

GROMMET(4EW)

90480-16561-00

$16.99

23

COLLAR

90387-06039-00

Unavailable

24

GROMMET(36Y)

90480-16404-00

Unavailable
