Description

Price

1

CRANKCASE 1

5NY-15111-01-00

Unavailable

2

CONNECTOR, SUCTION PIPE

353-13115-01-00

$6.99

3

HOSE (L1500)

90445-084J0-00

$18.99

4

PIN, DOWEL(4XL)

93612-16254-00

$5.60

5

CRANKCASE 2

5NY-15121-01-00

Unavailable

6

COLLAR

90387-18007-00

$34.99

7

PLUG, STRAIGHT SCREW

90340-12006-00

$8.49

8

GASKET (3JD1)

90430-12207-00

$7.99

9

BOLT,SOCKET

91317-06045-00

$4.99

10

BOLT,SOCKET

91317-06055-00

$4.19

11

BOLT, SOCKET

91317-06070-00

$4.99

12

CLAMP(4NX)

90461-10136-00

$23.99

13

HOLDER

3R4-15118-00-00

Unavailable

14

BOLT, FLANGE

95817-06012-00

$1.43

15

PIN, DOWEL

99590-17016-00

$7.49

16

O-RING (1J7)

93210-16314-00

Unavailable

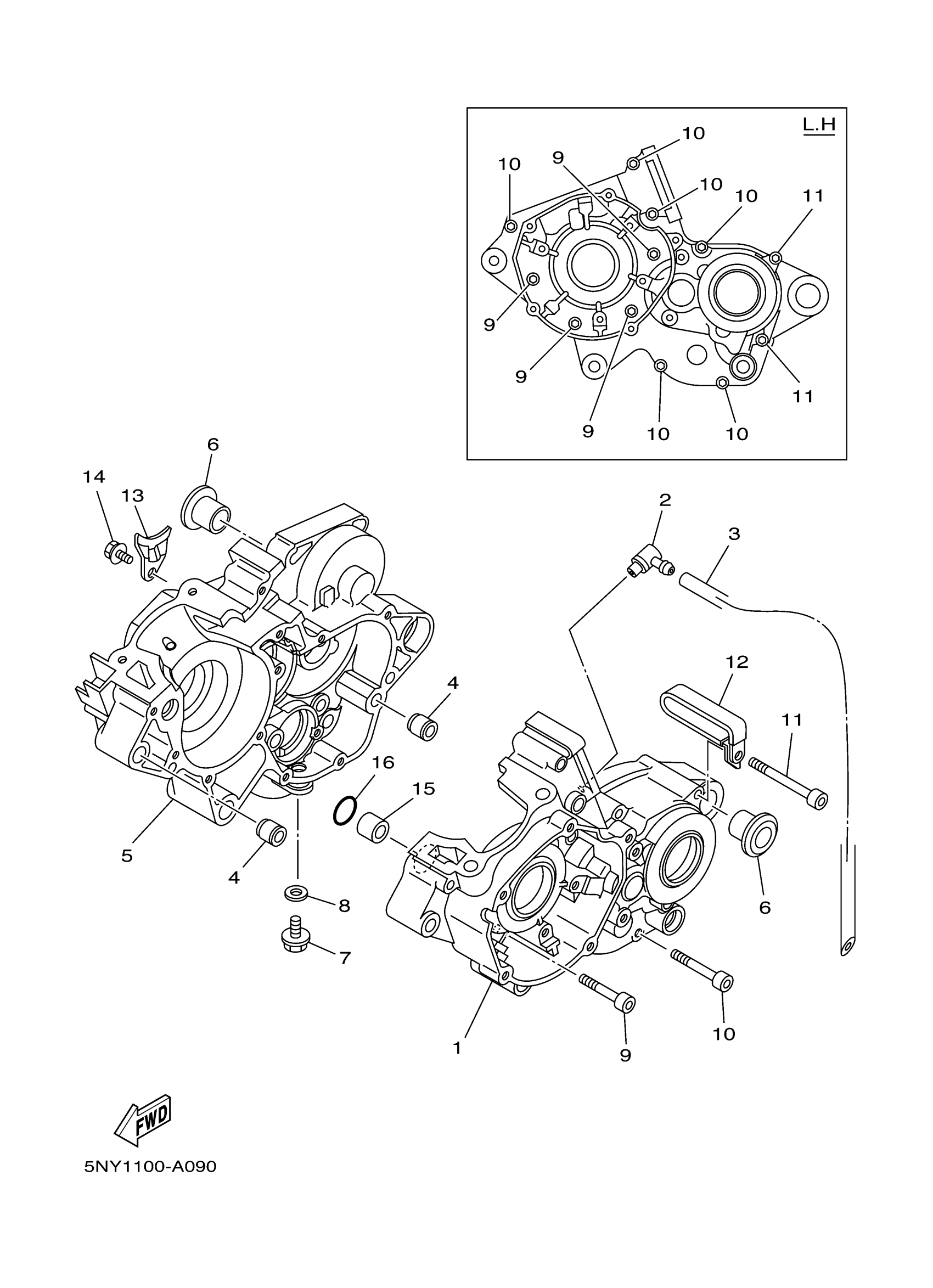

Yamaha YZ125R (YZ125) 5UN1 2003 CRANKCASE Diagram

CRANKCASE 1

CONNECTOR, SUCTION PIPE

HOSE (L1500)

PIN, DOWEL(4XL)

CRANKCASE 2

COLLAR

PLUG, STRAIGHT SCREW

GASKET (3JD1)

BOLT,SOCKET

BOLT,SOCKET

BOLT, SOCKET

CLAMP(4NX)

HOLDER

BOLT, FLANGE

PIN, DOWEL

O-RING (1J7)
