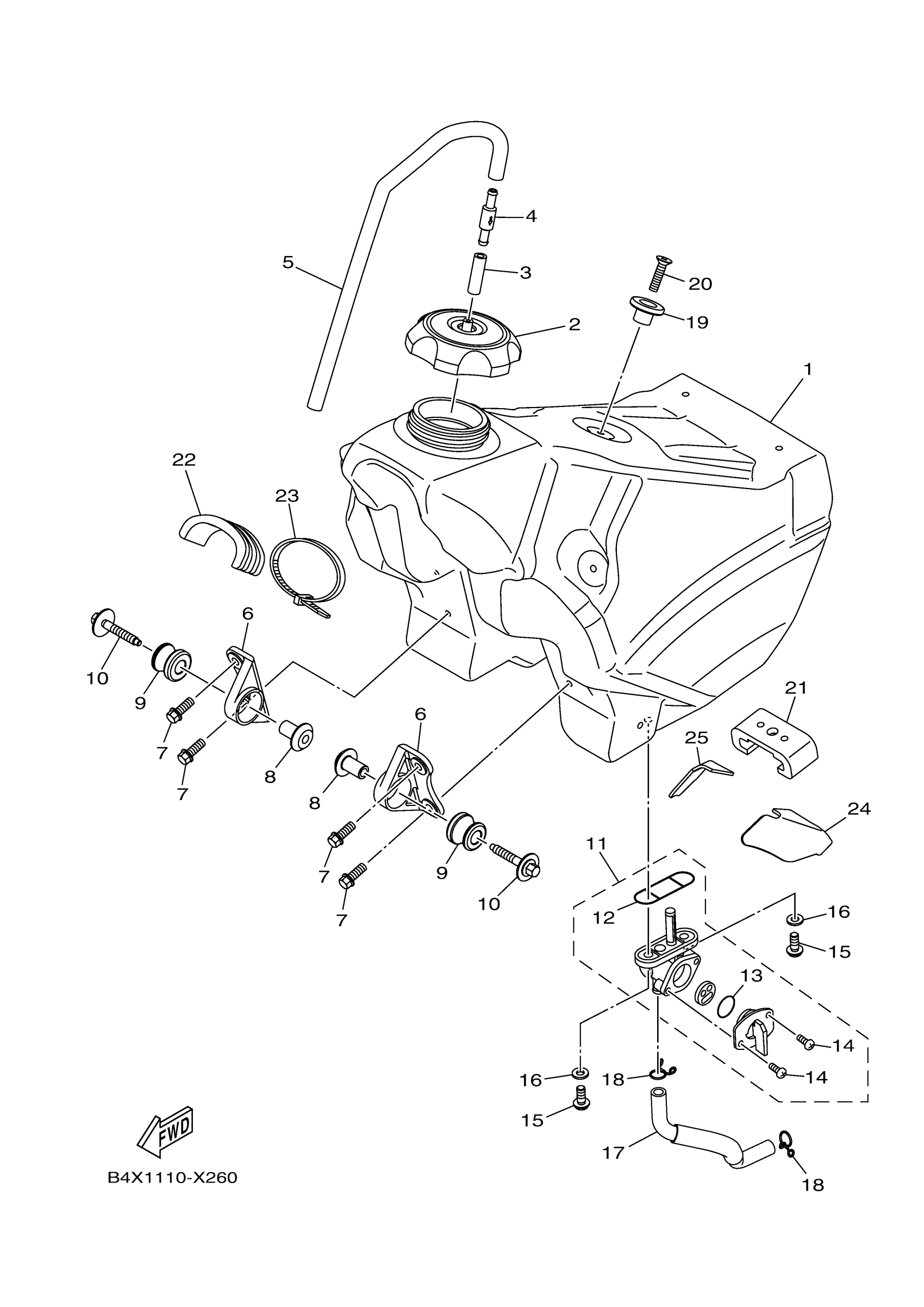

Yamaha YZ125P2ME (YZ125 MONSTER) B4XD 2023 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

BCR-24110-00-00

$532.99

2

CAP ASSY

5NY-24610-10-00

$61.99

3

PIPE 5

5RB-24315-00-00

$7.99

4

PIPE JOINT ASSY

3XJ-24380-00-00

$36.99

5

HOSE (L420)

90445-092K1-00

$12.49

6

HOLDER, DAMPER

5XE-24144-00-00

$23.99

7

BOLT, FLANGE DEEP RECESS

95E32-06016-00

$0.60

8

WASHER, SPECIAL

5NY-24186-00-00

$20.99

9

GROMMET(4AA)

90480-18549-00

$10.49

10

BOLT, WITH WASHER

90119-06316-00

$4.46

11

FUEL COCK ASSY 1

3JD-24500-20-00

$56.99

12

O-RING

4X8-24512-10-00

$14.49

13

SEAL, COCK

3AJ-24534-10-00

$7.99

14

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

15

SCREW

90149-06108-00

$1.01

16

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

17

PIPE, FUEL 1

B4X-24311-00-00

Unavailable

18

CLIP

90467-100A1-00

Unavailable

19

BRACKET, SEAT

4EW-2412F-00-00

Unavailable

20

SCREW, FLAT HEAD

98702-06025-00

Unavailable

21

DAMPER, LOCATING 1

1C3-24181-00-00

Unavailable

22

DAMPER, LOCATING 2

1C3-24182-00-00

Unavailable

23

CLAMP(MF1)

90464-15152-00

Unavailable

24

DAMPER, LOCATING 3

1C3-24183-00-00

Unavailable

25

DAMPER, LOCATING 4

1C3-24184-00-00

Unavailable
