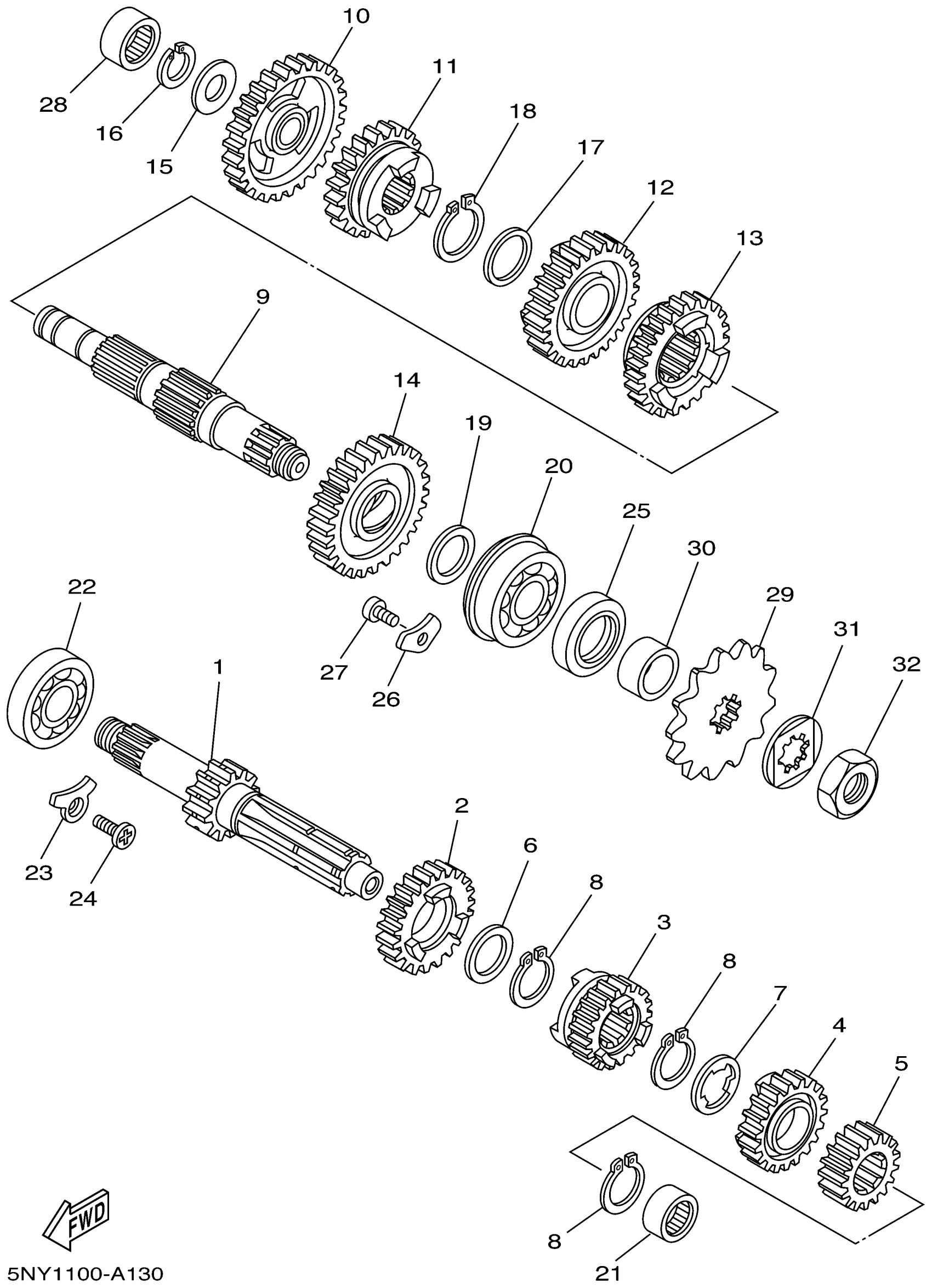

Yamaha YZ125P (YZ125) 5NY1 2002 TRANSMISSION Diagram

AXLE, MAIN

5NY-17411-00-00

Unavailable

GEAR, 5TH PINION

5NY-17151-00-00

Unavailable

GEAR, 3RD PINION

5NY-17131-00-00

Unavailable

GEAR, 4TH PINION

5NY-17141-00-00

Unavailable

GEAR, 2ND PINION (17T)

5NY-17121-00-00

Unavailable

WASHER, PLATE (537)

90201-22555-00

$8.49

WASHER (537)

90209-18135-00

$9.49

CIRCLIP (537)

93410-22039-00

$8.49

AXLE, DRIVE

5NY-17421-00-00

Unavailable

GEAR, 1ST WHEEL (27T)

5NY-17211-00-00

Unavailable

GEAR, 5TH WHEEL (25T)

5NY-17251-00-00

Unavailable

GEAR, 3RD WHEEL

5NY-17231-00-00

$157.99

GEAR, 4TH WHEEL

5NY-17241-00-00

Unavailable

GEAR, 2ND WHEEL (31T)

5NY-17221-00-00

Unavailable

WASHER, PLATE (4L0)

90201-154E8-00

$8.49

CIRCLIP

93440-15012-00

Unavailable

WASHER, PLATE (3Y1)

90201-22793-00

Unavailable

CIRCLIP (537)

93410-22039-00

$8.49

WASHER, PLATE(1HX)

90201-204K8-00

Unavailable

BRG,R-B 6304 52MM 150G NT

93306-30411-00

Unavailable

BRG,CYL-CAL ROLLER 16G KY (1W1

93311-41530-00

Unavailable

BEARING

93306-20431-00

Unavailable

PLATE, BEARING COVER

1LX-15383-00-00

Unavailable

SCREW, FLAT

98707-06012-00

Unavailable

OIL SEAL (26X38X5-181)

93102-26042-00

Unavailable

PLATE, BEARING COVER

4XM-15383-00-00

Unavailable

SCREW, FLAT

98707-06012-00

Unavailable

BEARING, CYLINDRICAL(2TV)

93311-31567-00

Unavailable

SPROCKET, DRIVE (12T)

9383A-12017-00

Unavailable

SPROCKET,DRIVE 13T(2HG1746130)

9383A-13031-00

Unavailable

SPROCKET,DRIVE 14T(2HG1746140)

9383A-14054-00

Unavailable

COLLAR (3V3)

90387-202A0-00

Unavailable

WASHER, LOCK(2HG)

90215-20261-00

Unavailable

NUT (1L8)

90179-16226-00

Unavailable
