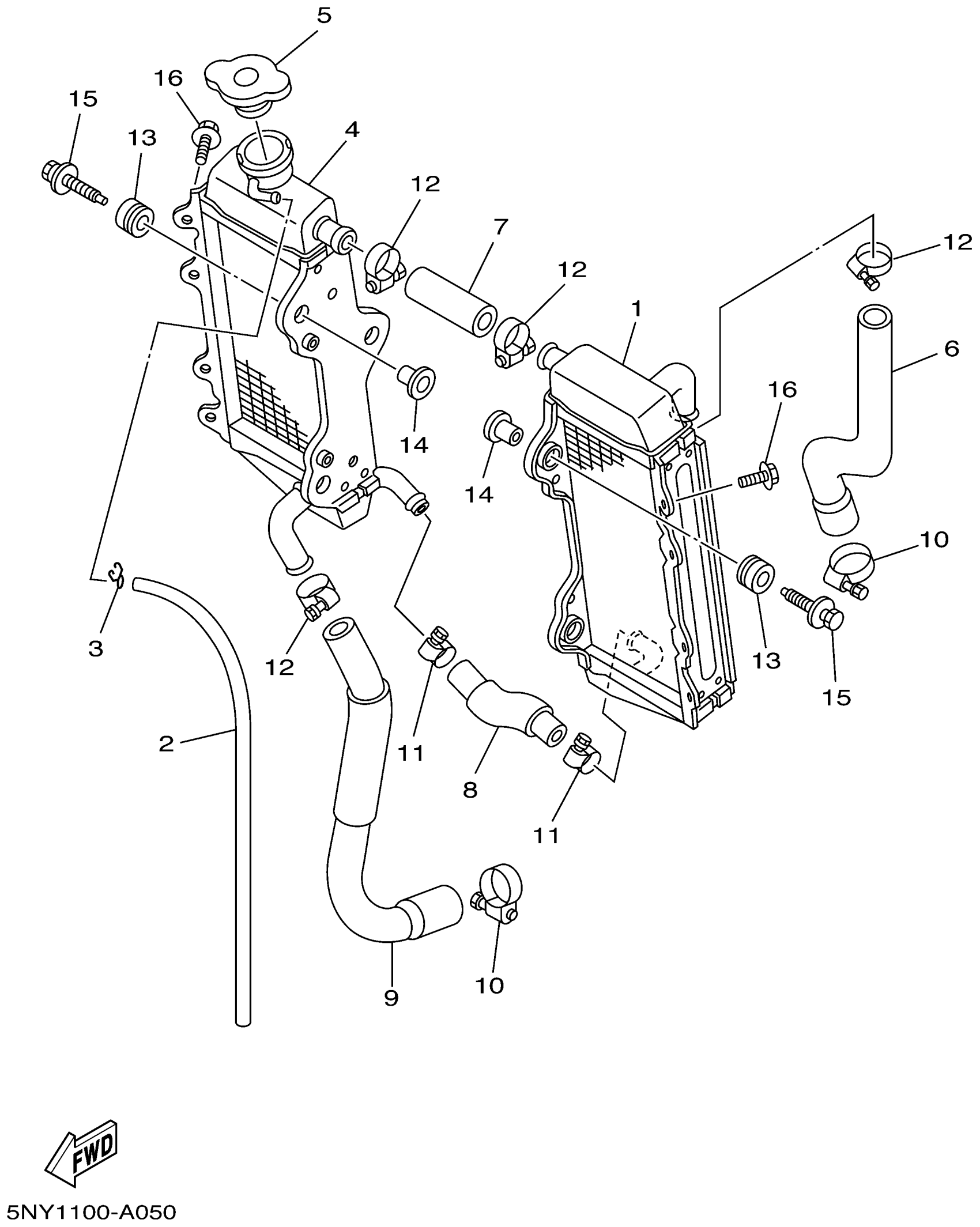

Yamaha YZ125P (YZ125) 5NY1 2002 RADIATOR HOSE Diagram

#

Description
Price

1

RADIATOR ASSY

5NY-1240A-00-00

Unavailable

2

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$14.99

3

CLIP

90467-090A2-00

$4.41

4

RADIATOR ASSY

5NY-12461-00-00

Unavailable

5

CAP, RADIATOR

4FL-12462-00-00

$62.99

6

PIPE 1

5NY-12481-00-00

Unavailable

7

PIPE 2

5NY-12482-00-00

$7.99

8

PIPE 3

5NY-12483-01-00

Unavailable

9

PIPE 4

5NY-12484-00-00

Unavailable

10

HOSE CLAMP ASSY

90450-28001-00

$14.99

11

HOSE CLAMP ASSY(64X)

90450-22M14-00

$16.99

12

HOSE CLAMP ASSY(64X)

90450-22M14-00

$16.99

13

GROMMET(3RB)

90480-15528-00

$8.49

14

COLLAR

90387-0614M-00

$11.49

15

BOLT, WITH WASHER

90119-06038-00

$8.49

16

BOLT, FLANGE

95817-06010-00

Unavailable
