Description

Price

1

FRONT FRAME COMP.

5NY-21101-00-00

Unavailable

2

REAR FRAME COMP.

5XE-21190-00-00

Unavailable

3

BOLT, WASHER BASED (401)

90105-08120-00

$9.49

4

BOLT, HEXAGON SOCKET HEAD(53Y)

90110-08096-00

$10.49

5

BOLT, FLANGE(4MY)

95027-08040-00

$8.49

6

TENSIONER

3JD-22178-20-00

$43.99

7

TENSIONER

4EW-22178-01-00

Unavailable

8

BEARING (3X3)

93300-60804-00

$12.49

9

COLLAR(1NL)

90387-086N4-00

$9.49

10

BOLT, SMALL FLANGE

95027-08055-00

$5.60

11

NUT

90185-08055-00

$9.49

12

WASHER, PLATE(3XP)

90201-086P8-00

$4.77

13

BOLT,FLANGE

95817-10090-00

$9.49

14

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

15

BOLT, WASHER BASED(3RB)

90105-10733-00

$4.51

16

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

17

BRACKET, REAR UPPER 1

5NY-21425-00-00

Unavailable

18

BOLT, FLANGE

95817-08050-00

Unavailable

19

WASHER, PLATE (12X)

90201-087F0-00

Unavailable

20

BOLT, WASHER BASED

90105-08225-00

Unavailable

21

NUT, SELF-LOCKING

90185-08169-00

Unavailable

22

BRACKET, C.D.I. UNIT

5NY-21274-00-00

Unavailable

23

WRENCH, HEXAGON

5ET-28166-10-00

Unavailable

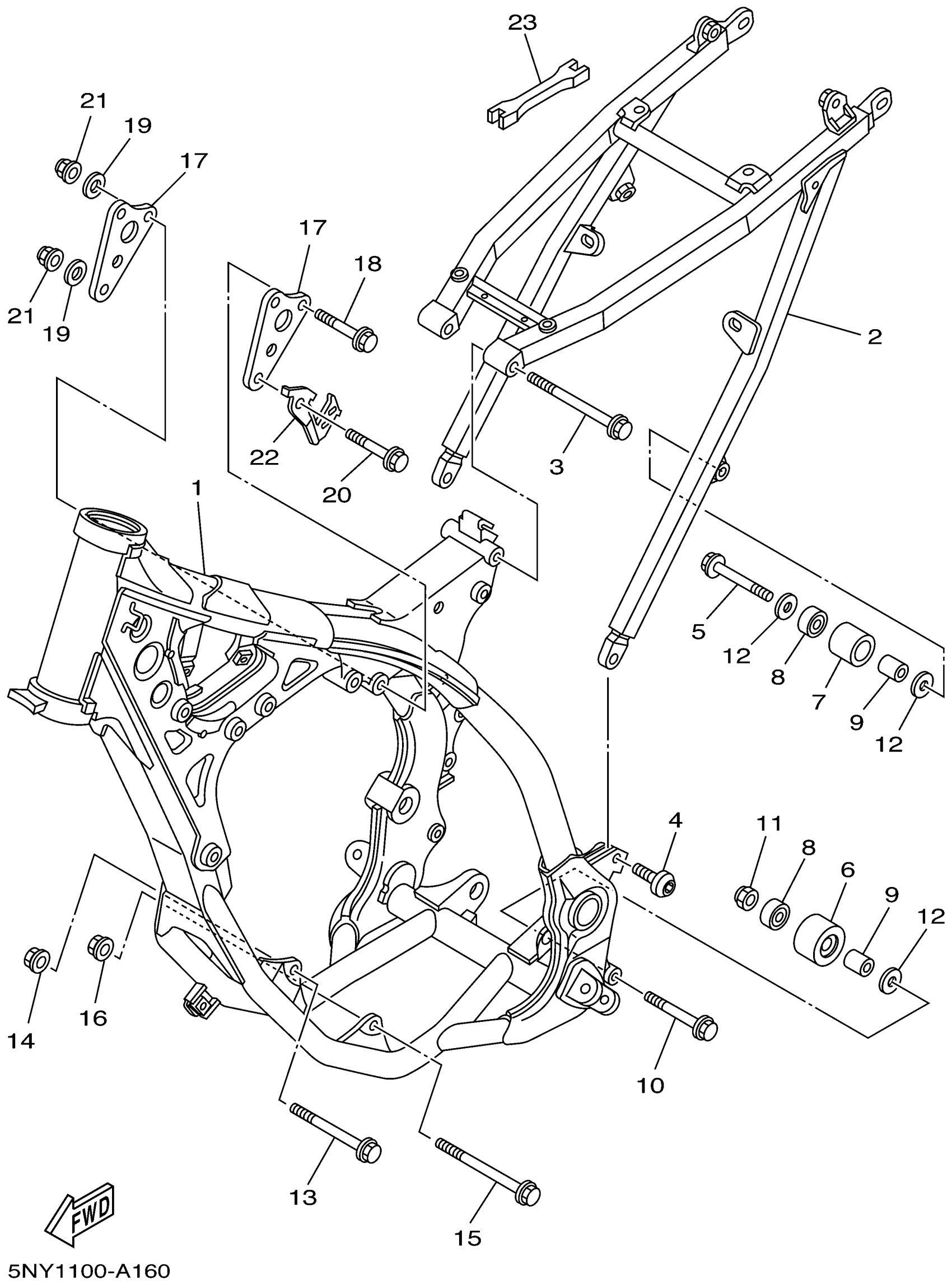

Yamaha YZ125P (YZ125) 5NY1 2002 FRAME Diagram

FRONT FRAME COMP.

REAR FRAME COMP.

BOLT, WASHER BASED (401)

BOLT, HEXAGON SOCKET HEAD(53Y)

BOLT, FLANGE(4MY)

TENSIONER

TENSIONER

BEARING (3X3)

COLLAR(1NL)

BOLT, SMALL FLANGE

NUT

WASHER, PLATE(3XP)

BOLT,FLANGE

NUT, SELF-LOCKING(JN5)

BOLT, WASHER BASED(3RB)

NUT, SELF-LOCKING(JN5)

BRACKET, REAR UPPER 1

BOLT, FLANGE

WASHER, PLATE (12X)

BOLT, WASHER BASED

NUT, SELF-LOCKING

BRACKET, C.D.I. UNIT

WRENCH, HEXAGON
