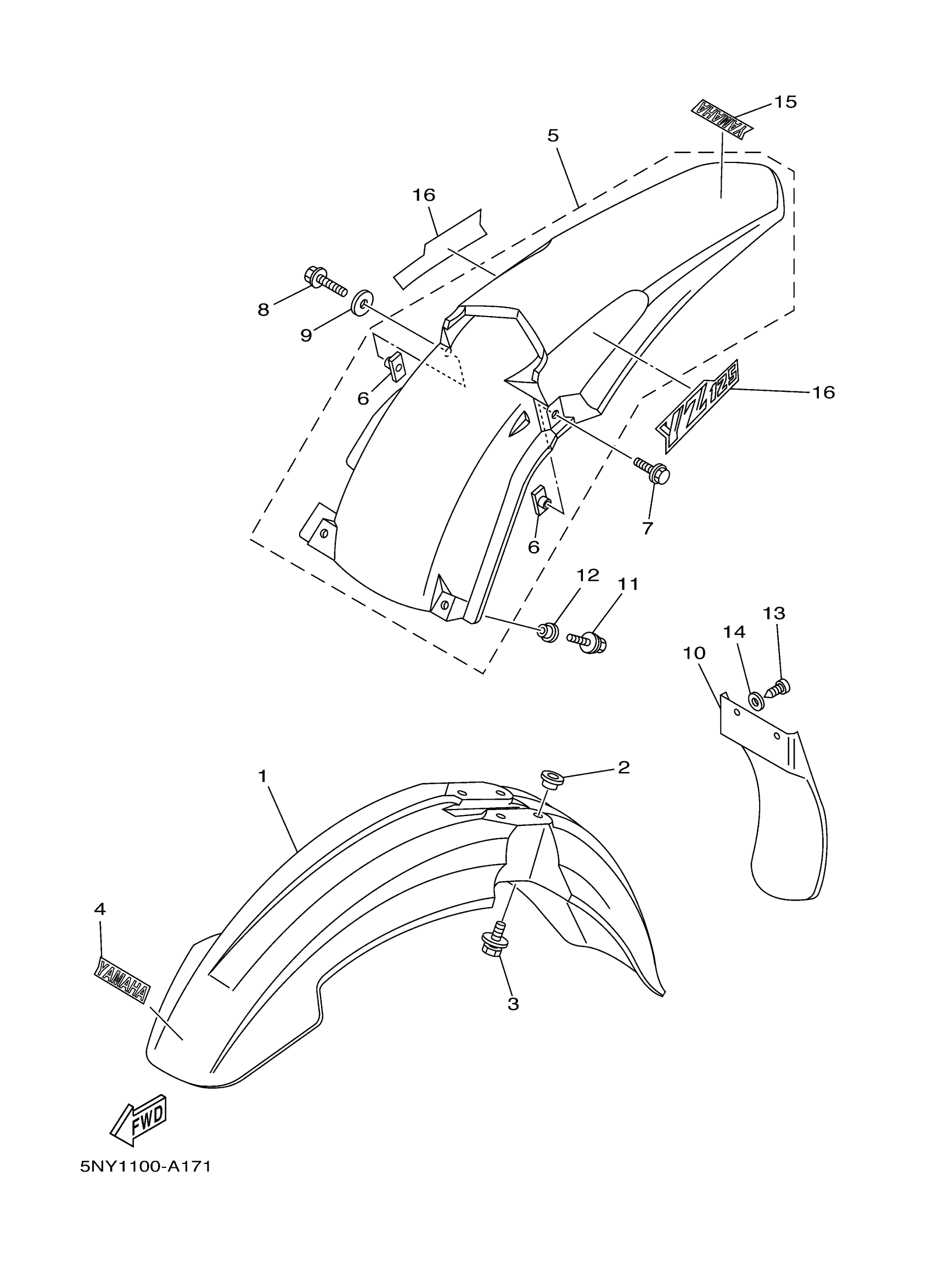

Yamaha YZ125P (YZ125) 5NY1 2002 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

5HD-21511-00-00

$34.08

2

COLLAR

3JD-21748-00-00

$4.01

3

BOLT, WITH WASHER (30X)

90119-06096-00

$2.88

4

EMBLEM YAMAHA

4ES-2153E-02-00

Unavailable

5

REAR FENDER COMP.

5XE-21610-00-00

$64.42

6

NUT

90179-06022-00

Unavailable

7

BOLT, WITH WASHER(3RB)

90119-06192-00

$5.76

8

BOLT, SMALL FLANGE

95027-06030-00

$3.40

9

WASHER, PLATE(36Y)

90201-063J2-00

$4.15

10

GUARD, FLAP

5BE-21642-00-00

$42.21

11

BOLT, WITH WASHER(4JX)

90119-06225-00

$6.15

12

COLLAR

90387-06009-00

$7.37

13

SCREW, TRUSS TAP.

97707-60016-00

$0.98

14

WASHER, PLATE

90201-06557-00

$2.57

15

EMBLEM YAMAHA

4ES-2153E-02-00

Unavailable

16

EMBLEM 1

5NY-2163G-00-00

Unavailable
