Description

Price

1

COVER, CRANKCASE 1

4JY-15411-00-00

Unavailable

2

GASKET, CRANKCASE COVER 1

4JY-15451-10-00

$19.99

3

SCREW, PAN

98517-06030-00

Unavailable

4

WASHER(6TA)

92907-06600-00

$2.72

5

COVER, CRANKCASE 2

4EX-15421-00-00

Unavailable

6

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

7

COVER, CRANKCASE 3

4JY-15431-14-00

$246.99

8

GASKET, CRANKCASE COVER 3

4JY-15462-00-00

$25.99

9

PIN, DOWEL(3VD)

99530-10114-00

$2.55

10

PLUG, OIL

3Y1-15363-10-00

$18.49

11

O-RING (646)

93210-19123-00

Unavailable

12

BOLT, SMALL FLANGE

95027-06030-00

$3.98

13

BOLT, SMALL FLANGE

95027-06040-00

$3.28

14

COVER ASSY

5NY-15490-00-00

Unavailable

15

AXLE, PUSH LEVER

4EX-16382-10-00

$71.99

16

BOLT (583 TACHOMETER)

90109-06418-00

Unavailable

17

GASKET 256113960000

90430-06014-00

Unavailable

18

OIL SEAL (4G0)

93102-12224-00

Unavailable

19

BRG,CYL-CAL ROLLER 6G TM

93315-11206-00

Unavailable

20

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

21

GASKET 256113960000

90430-06014-00

Unavailable

22

GASKET, CARBURETOR COVER 2

4JY-15463-01-00

Unavailable

23

PIN,DOWEL (603)

93604-10011-00

Unavailable

24

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

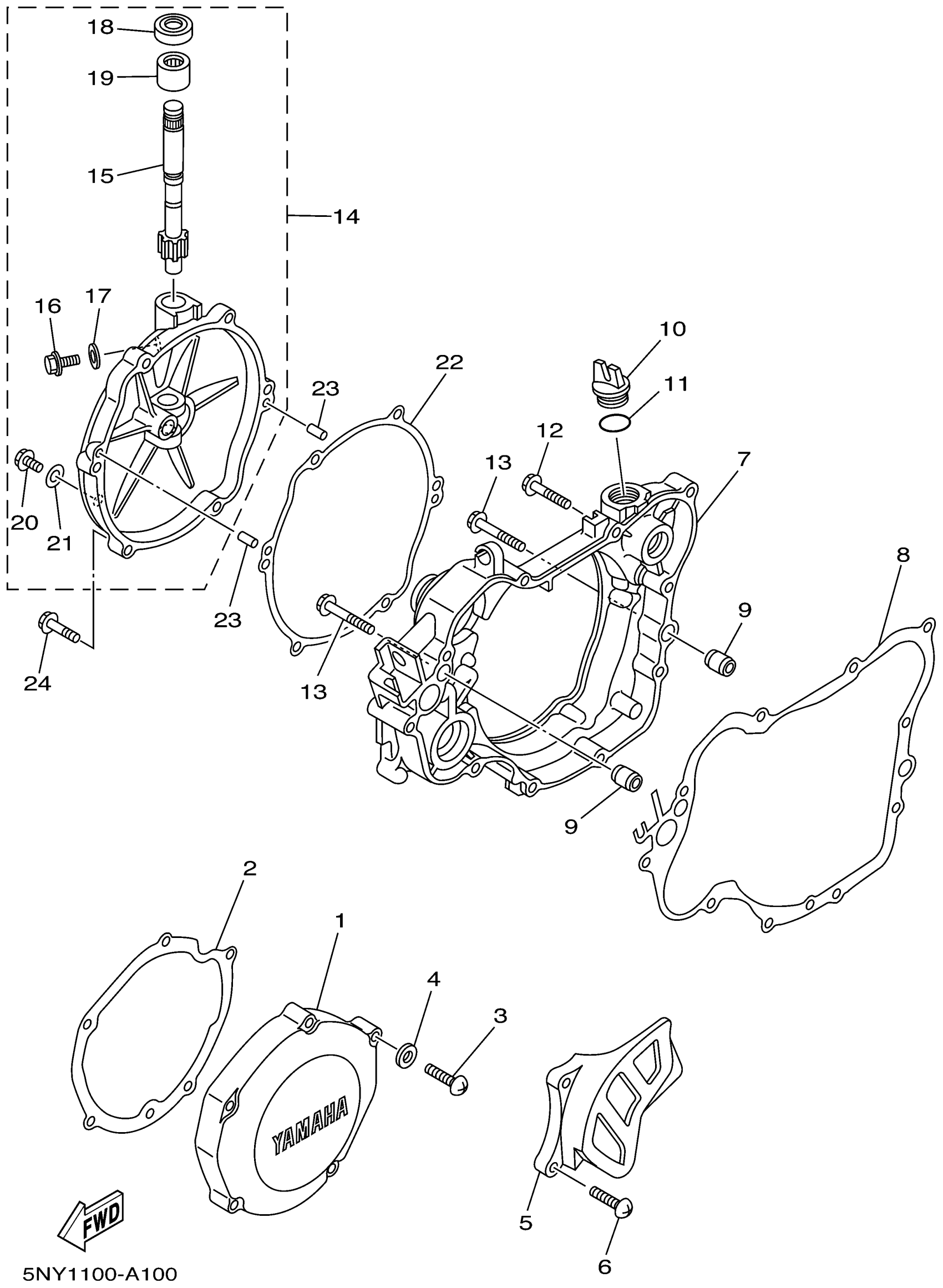

Yamaha YZ125P (YZ125) 5NY1 2002 CRANKCASE COVER 1 Diagram

COVER, CRANKCASE 1

GASKET, CRANKCASE COVER 1

SCREW, PAN

WASHER(6TA)

COVER, CRANKCASE 2

SCREW, PAN HEAD(3TJ)

COVER, CRANKCASE 3

GASKET, CRANKCASE COVER 3

PIN, DOWEL(3VD)

PLUG, OIL

O-RING (646)

BOLT, SMALL FLANGE

BOLT, SMALL FLANGE

COVER ASSY

AXLE, PUSH LEVER

BOLT (583 TACHOMETER)

GASKET 256113960000

OIL SEAL (4G0)

BRG,CYL-CAL ROLLER 6G TM

BOLT, FLANGE(4MY)

GASKET 256113960000

GASKET, CARBURETOR COVER 2

PIN,DOWEL (603)

BOLT, SMALL FLANGE
