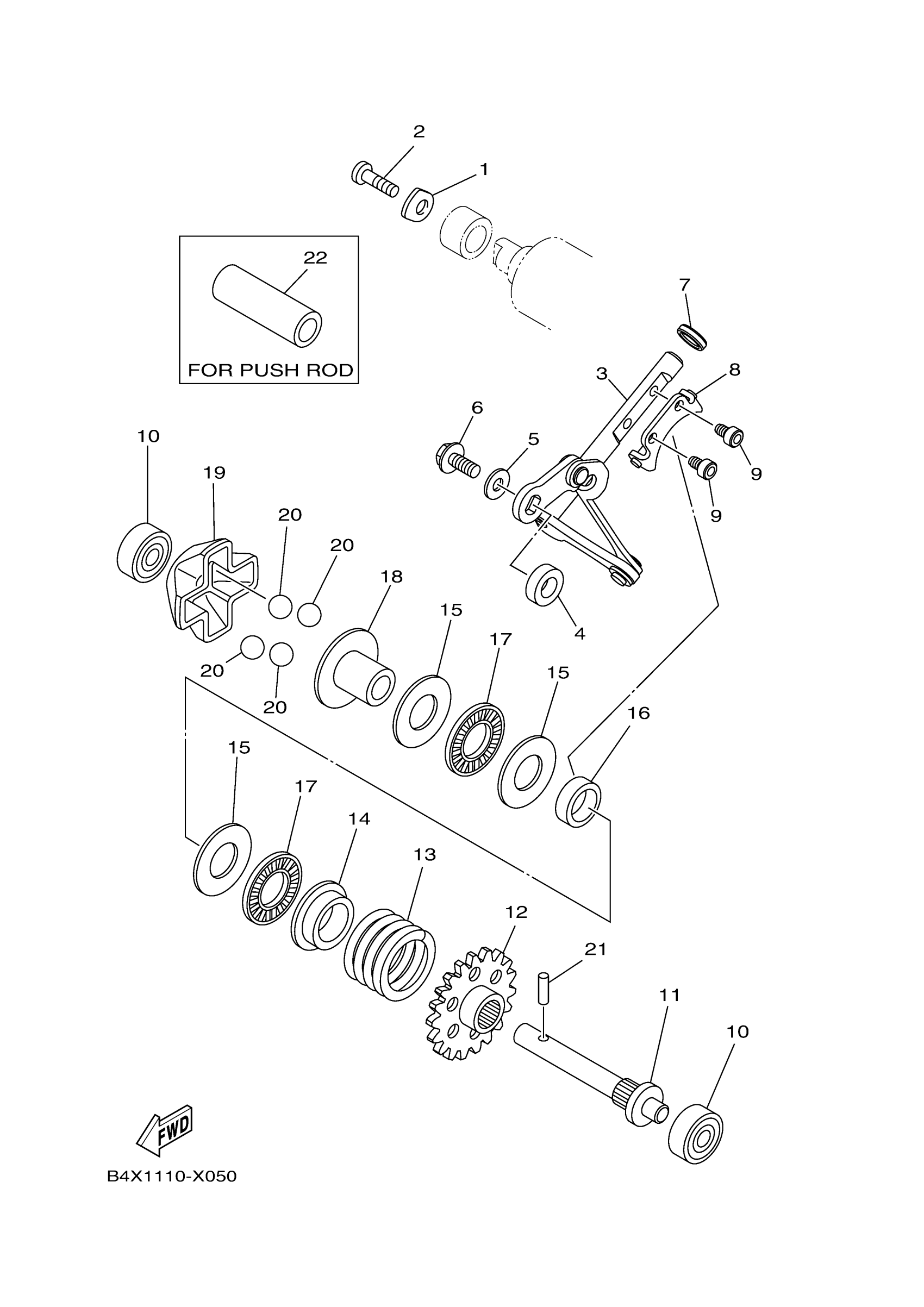

Yamaha YZ125N2ME (YZ125 MONSTER) B4X5 2022 GOVERNOR Diagram

#

Description
Price

1

PLATE, THRUST 1

4JY-11915-10-00

$5.99

2

SCREW, PAN

98517-05012-00

$3.65

3

PUSH ROD ASSY

B4X-11990-00-00

$67.56

4

COLLAR (7R4)

90387-085E1-00

$5.02

5

WASHER, PLATE

90201-05021-00

$1.54

6

BOLT, FLANGE

90105-05014-00

$2.07

7

OIL SEAL (8X12X3-371)

93104-08040-00

$11.41

8

FORK, GOVERNOR

3JE-11922-01-00

$35.29

9

BOLT

91312-04006-00

$2.53

10

BEARING

93300-60801-00

$19.50

11

SHAFT, GOVERNOR

5X4-11921-02-00

$49.12

12

GEAR, GOVERNOR

5NY-11953-00-00

$51.52

13

SPRING, COMPRESSION

90501-300A0-00

$7.11

14

PLATE

5CU-11952-00-00

$14.92

15

WASHER, PLATE(3GD)

90201-150U6-00

$7.41

16

COLLAR (5X4)

90387-152F2-00

Unavailable

17

BEARING, THRUST (713)

93340-21505-00

Unavailable

18

RETAINER, WEIGHT

5CU-11912-00-00

Unavailable

19

RETAINER

5CU-11911-00-00

Unavailable

20

BALL(71F)

93507-16020-00

Unavailable

21

PIN, DOWEL(3HN)

93603-14240-00

Unavailable

22

COLLAR

90387-103U7-00

Unavailable
